YIHUA 853AAA-I 4-in-1 BGA Rework Station with Touch Separator | 1180W Screen Separator & 110W Soldering Iron

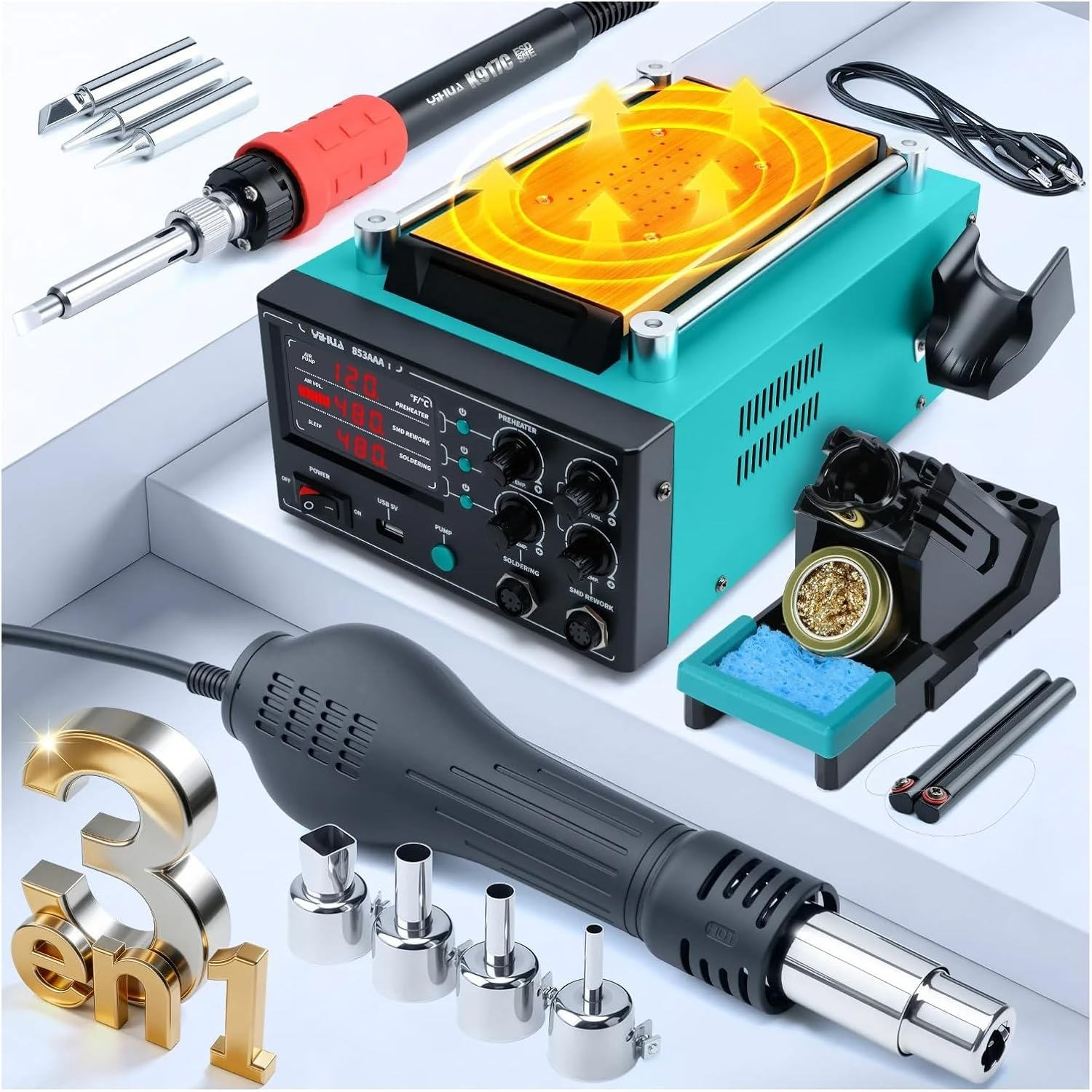

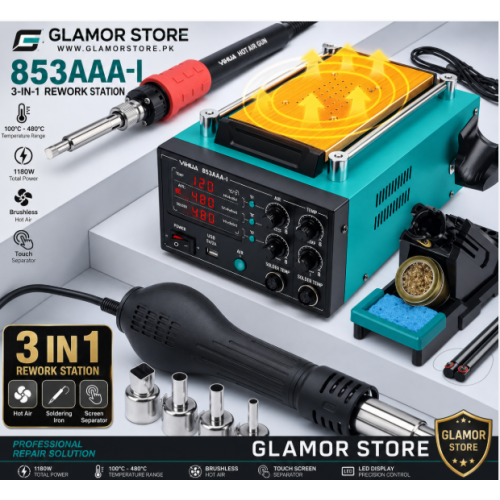

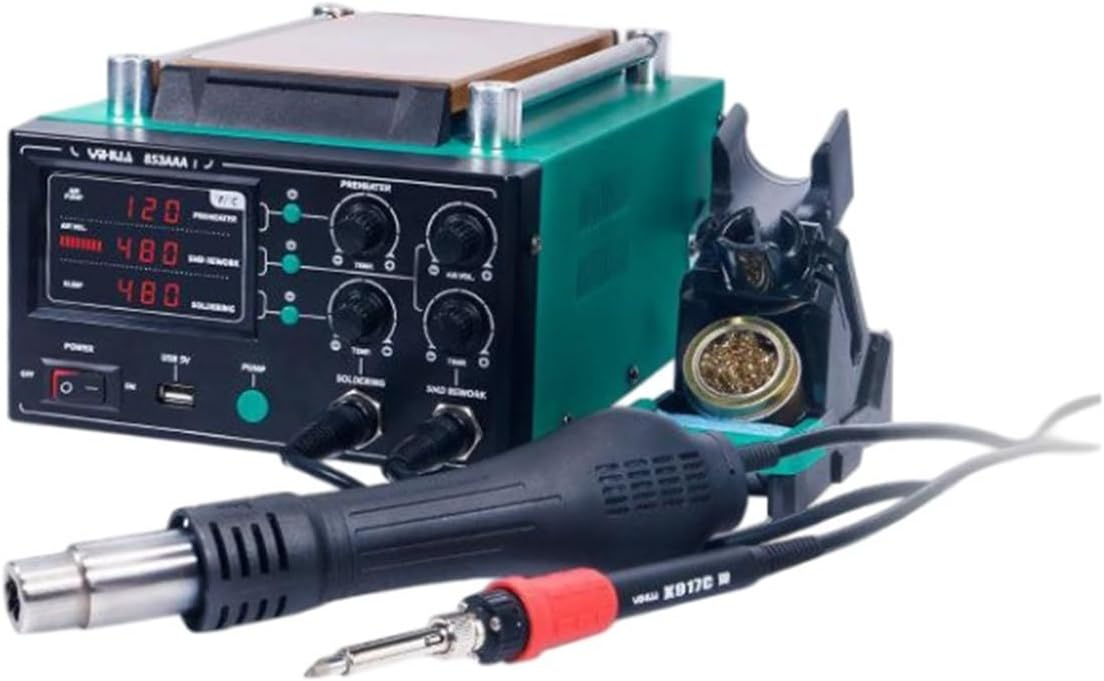

YIHUA 853AAA-I BGA Rework Station with Touch Separator – Professional 4-in-1 Repair System
Product Description
The YIHUA 853AAA-I BGA Rework Station with Touch Separator is a professional advanced repair system designed for mobile phone and tablet repair workshops. It combines multiple functions in one unit, including BGA rework, hot air rework, preheating platform, and a touch screen separator for LCD and glass removal.
This machine is used for precise electronics repair such as BGA, SMD, QFP, and IC chip reworking, as well as safe LCD screen separation. The integrated touch separator and PID temperature control system ensure stable heating, accurate temperature adjustment, and safe handling of sensitive components without damage.
It is widely used in mobile repair centers, laptop motherboard repair, and electronics service stations where multi-function performance and precision control are required.

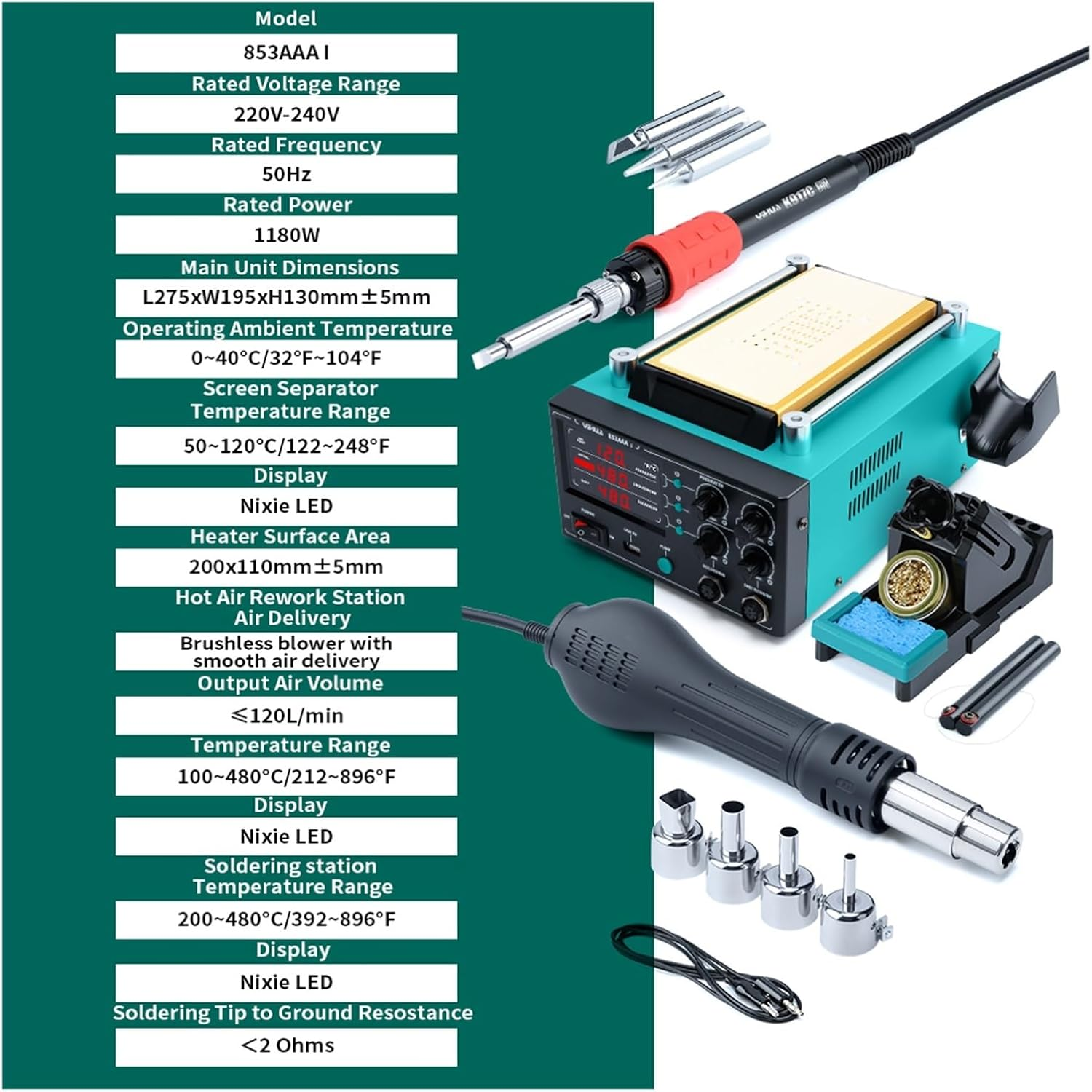

Specifications
| Specification | Details |
|---|---|
| Model | YIHUA 853AAA-I |
| System Type | 4-in-1 BGA Rework + Touch Separator Station |
| Functions | Hot Air + Preheater + Soldering Iron + LCD Touch Separator |
| Input Voltage | AC 220V–240V, 50/60Hz |
| Total Power Output | Approx. 1100W–1300W (Variant Dependent) |
| Hot Air Temperature Range | 100°C – 480°C |
| Preheater Temperature Range | 50°C – 400°C |

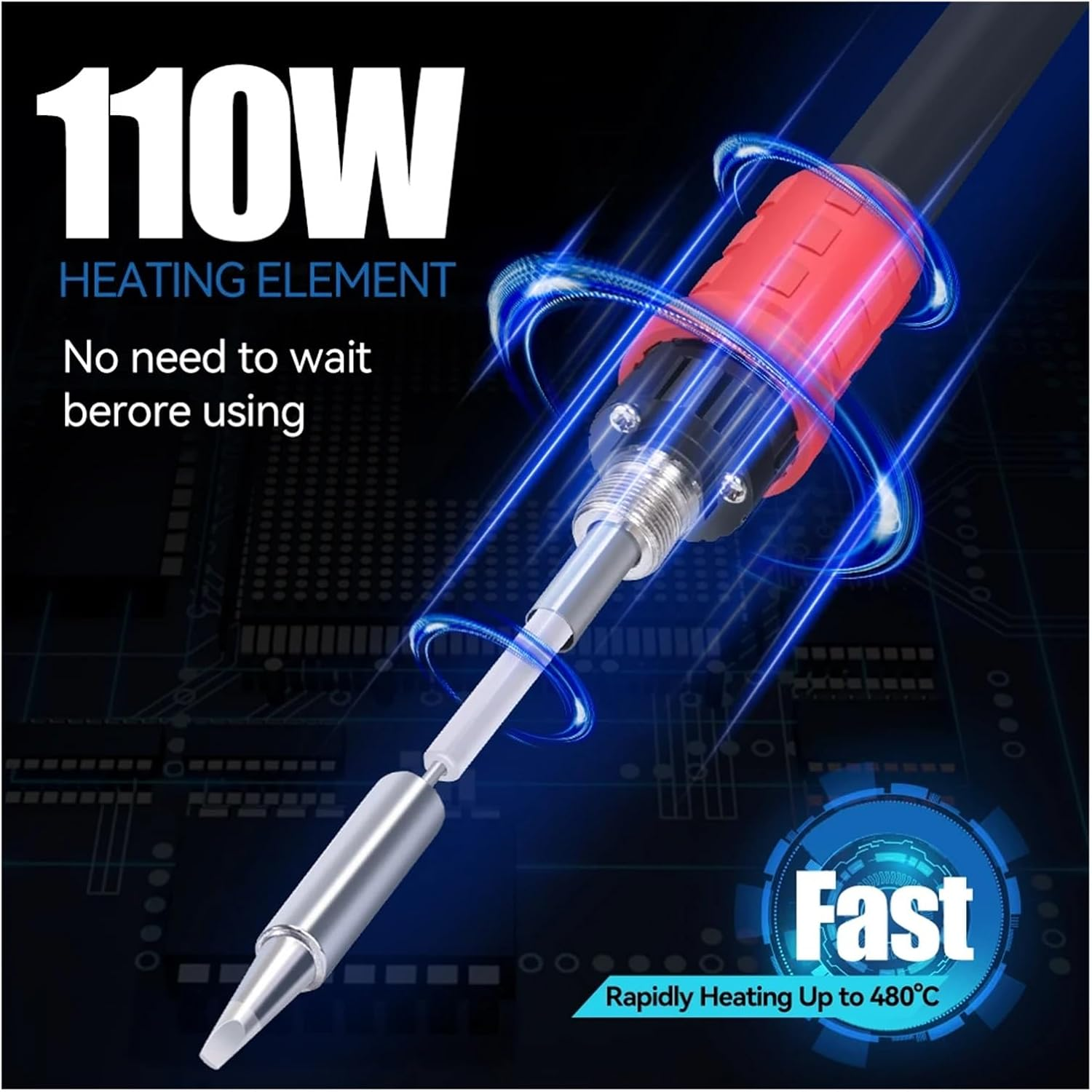

| Soldering Iron Temperature | 200°C – 480°C |
| Separator Temperature Range | 50°C – 120°C |
| Temperature Control | PID Digital Control System |
| Display | LED / Digital Display (°C / °F) |
| Airflow | Adjustable Hot Air System |
| Vacuum System | Built-in Vacuum (Separator Function) |
| Heating Technology | Ceramic Heater + Metal Preheater Plate |
| Body Material | Industrial Metal Body + Heat Resistant Frame |
| Weight | Approx. 8–12 kg |
Features
- 4-in-1 multifunction system (BGA + Hot Air + Preheater + Touch Separator)
- PID digital temperature control for high accuracy

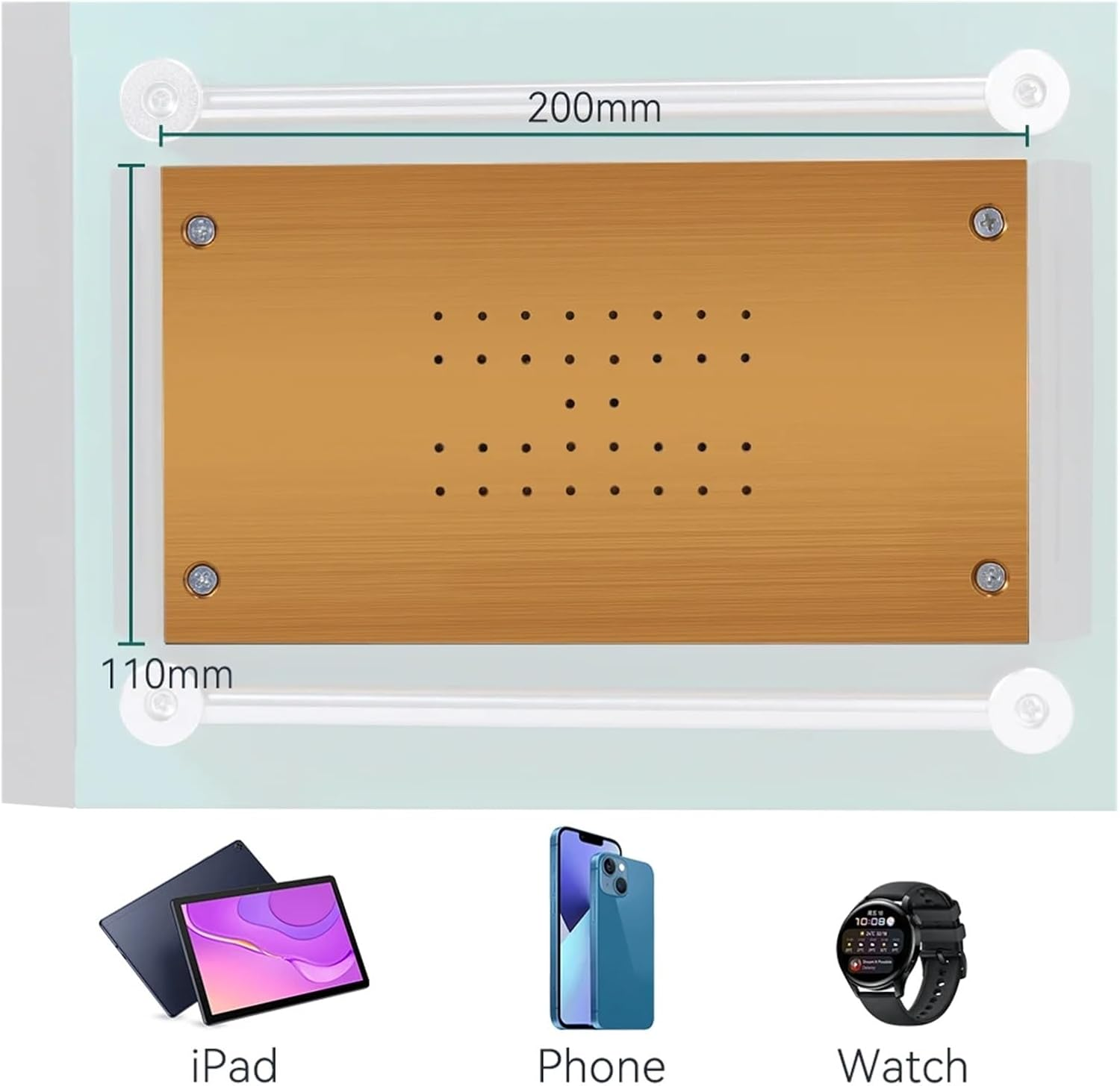

- Built-in LCD touch separator for safe screen removal
- Fast heating and stable thermal performance

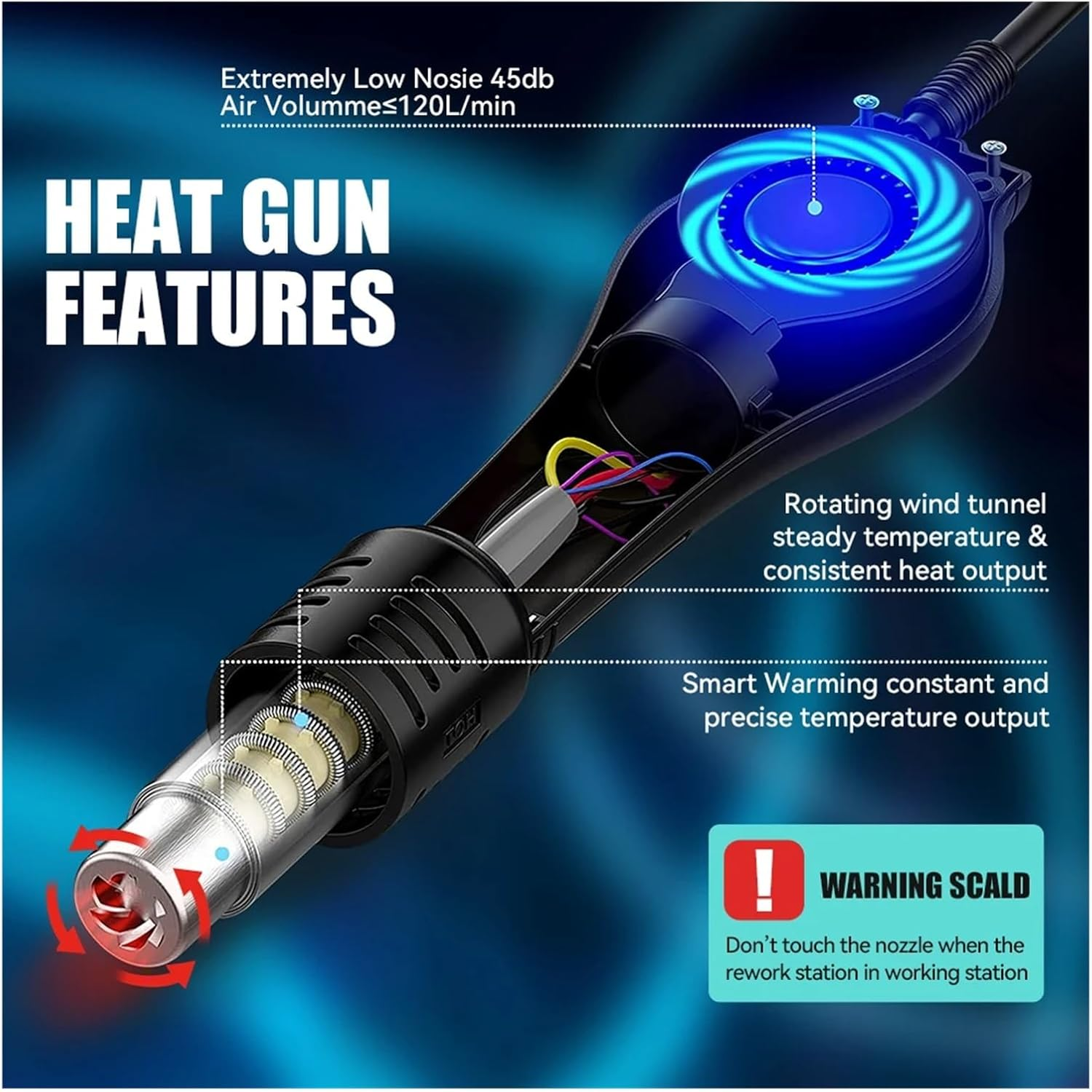

- Adjustable airflow hot air rework system
- Suitable for BGA, SMD, QFP, and IC chip repair
- Vacuum-assisted screen holding system
- °C / °F temperature display support
- Ideal for mobile, laptop, and motherboard repair workshops
- Professional-grade all-in-one repair station
What's in the Box
- 1 × YIHUA 853AAA-I Main Rework Station Unit
- 1 × Hot Air Gun Handle
- 1 × Soldering Iron Handle
- 1 × Touch Separator Unit (Built-in / Integrated)
- 1 × PCB Holder
- 1 × Hot Air Nozzle Set
- 1 × Power Cable
- 1 × User Manual
Dimensions & Weight
| Item | Value |
|---|---|
| Weight | Approx. 8–12 kg |
| Dimensions | Approx. 38 × 30 × 18 cm |
| Power Type | 220V AC Industrial Use |
- Availability: 100 In Stock
- Model: 853AAA-I
