WinAPEX 189C Smart Rotary Dial Multimeter AUTO NCV 6000 Count True RMS Digital Multimeter with Overload Protection

The WinAPEX 189C Smart Rotary Dial Multimeter is a professional True RMS digital multimeter designed for electricians, engineers, technicians, and DIY enthusiasts. It features an innovative LCD rotary dial, intelligent AUTO measurement mode, 6000-count color display, NCV detection, flashlight, overload protection, and comprehensive electrical measurement functions. The 189C model also includes temperature measurement, making it an ideal all-in-one testing instrument for industrial maintenance, electronics repair, automotive diagnostics, and household electrical work.

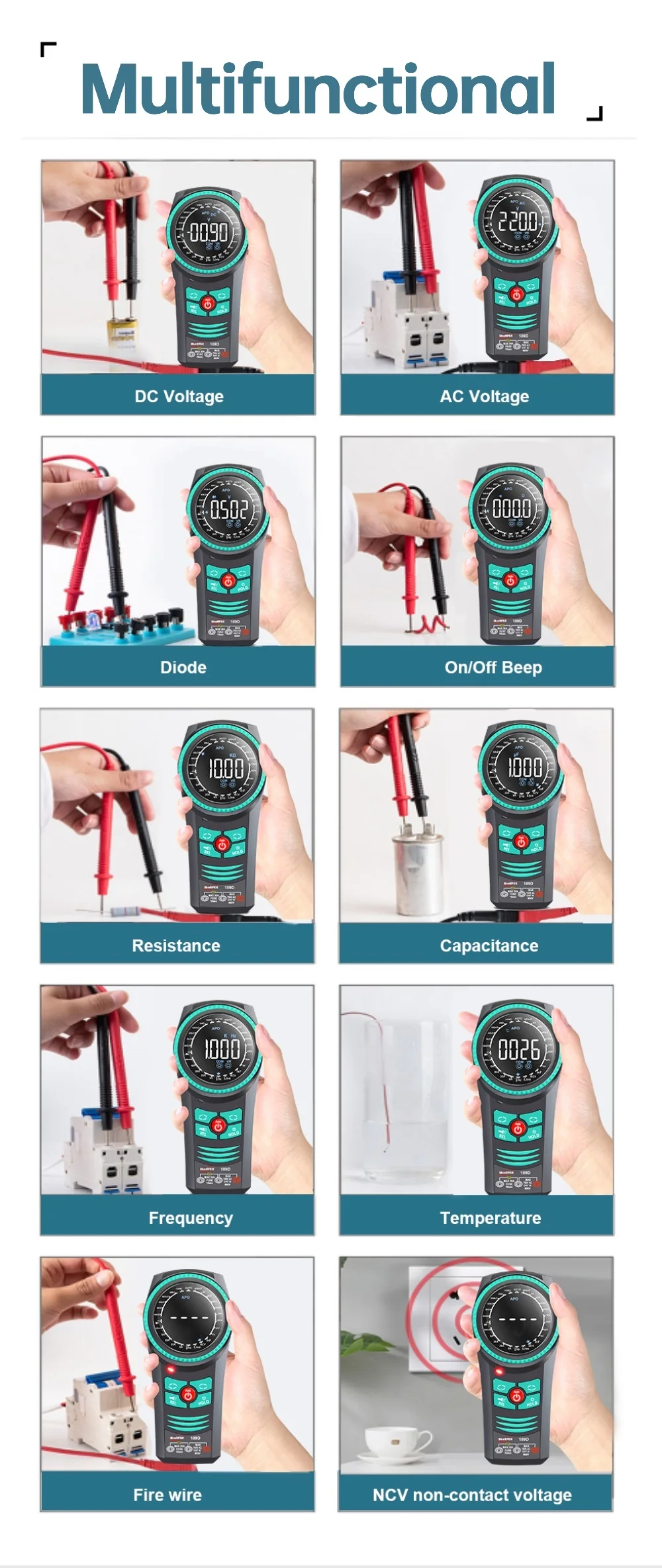

Key Features

  • 6000 Counts High-Resolution Color Display
  • True RMS Measurement for Accurate AC Readings

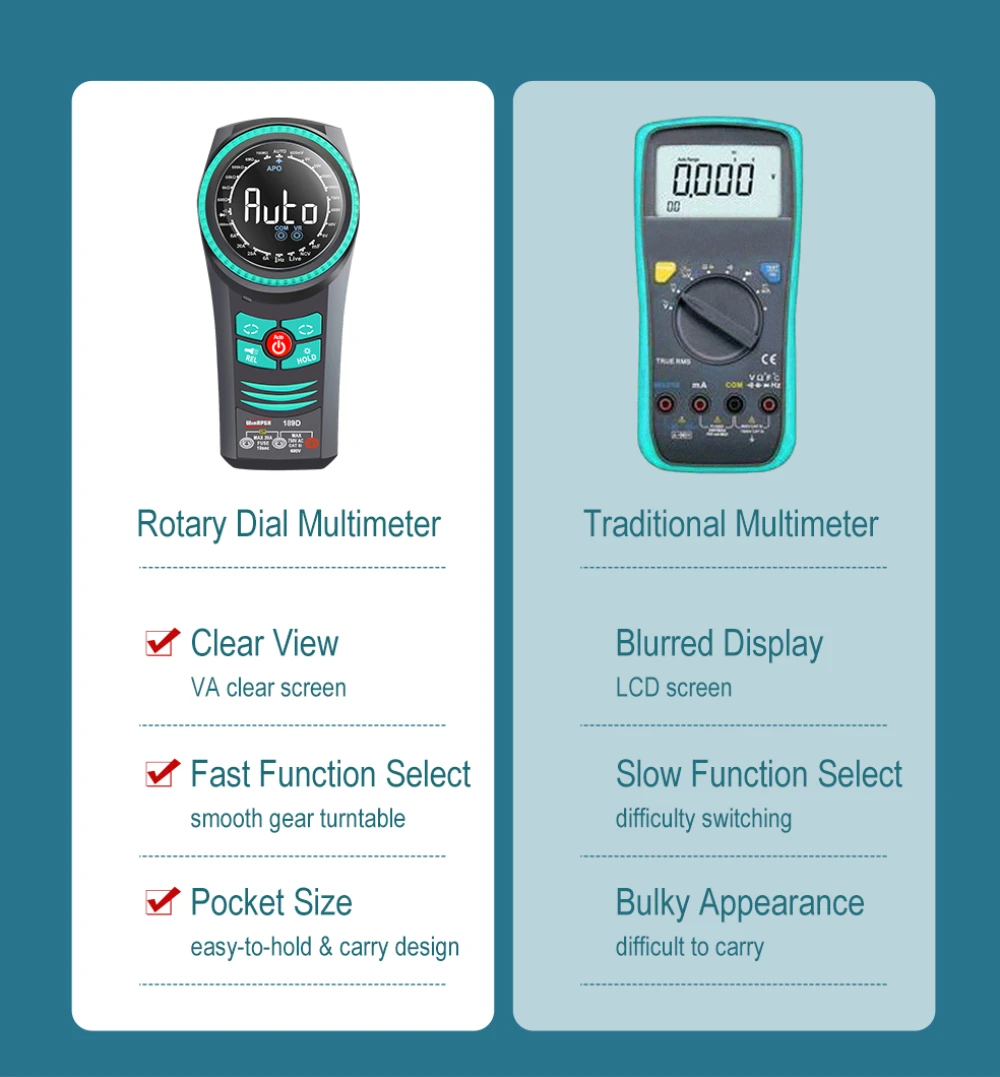

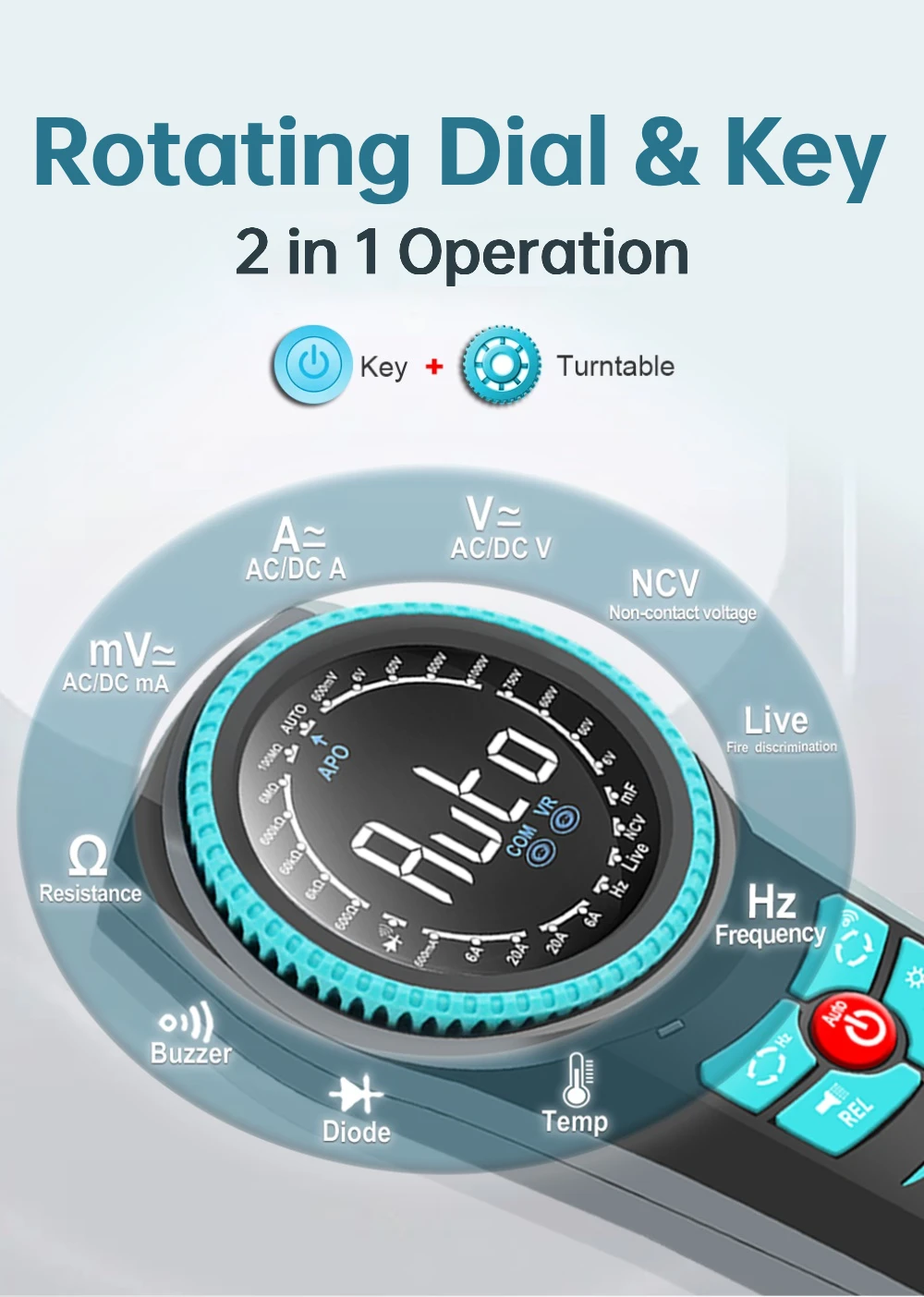

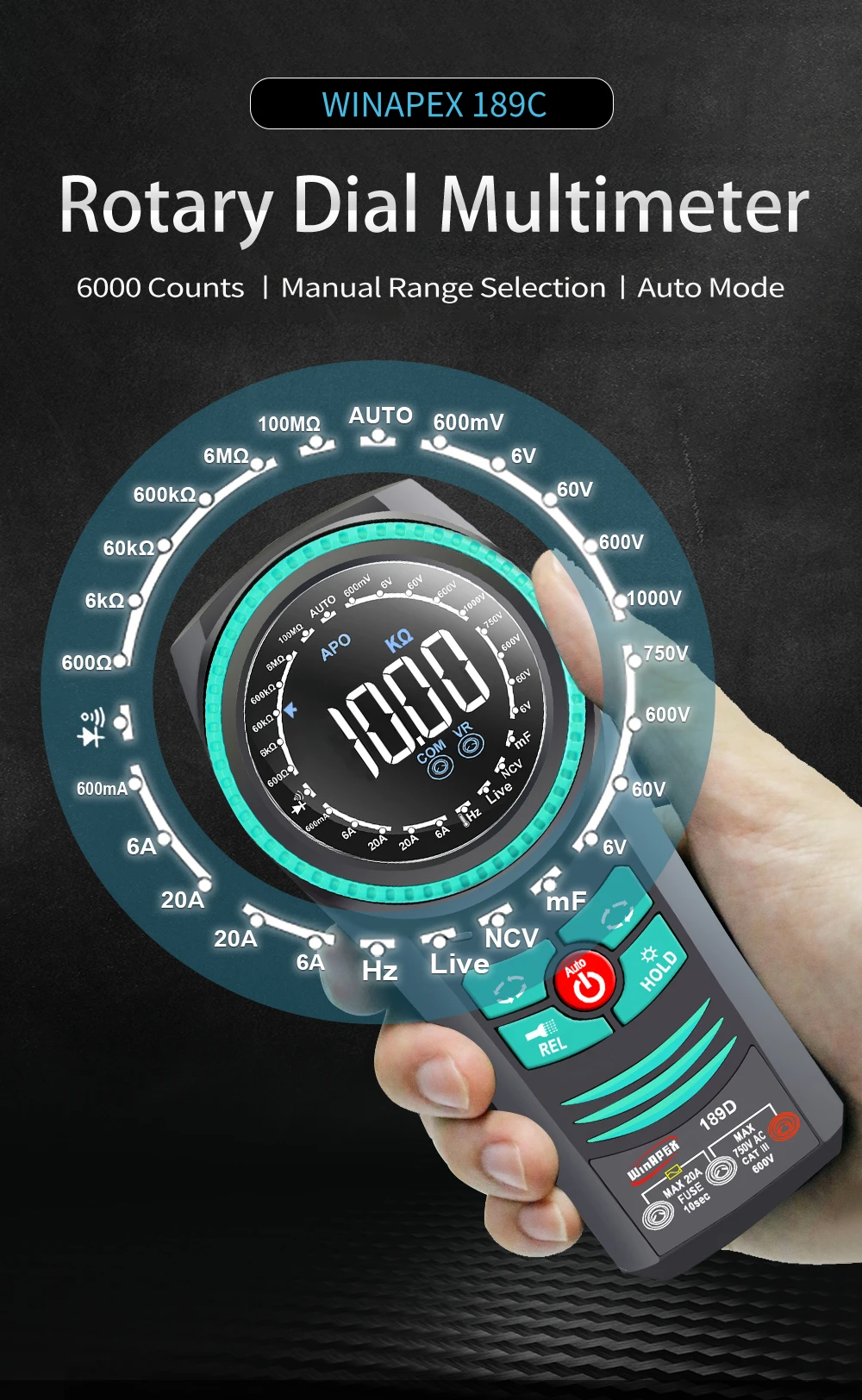

  • Smart LCD Rotary Dial Operation

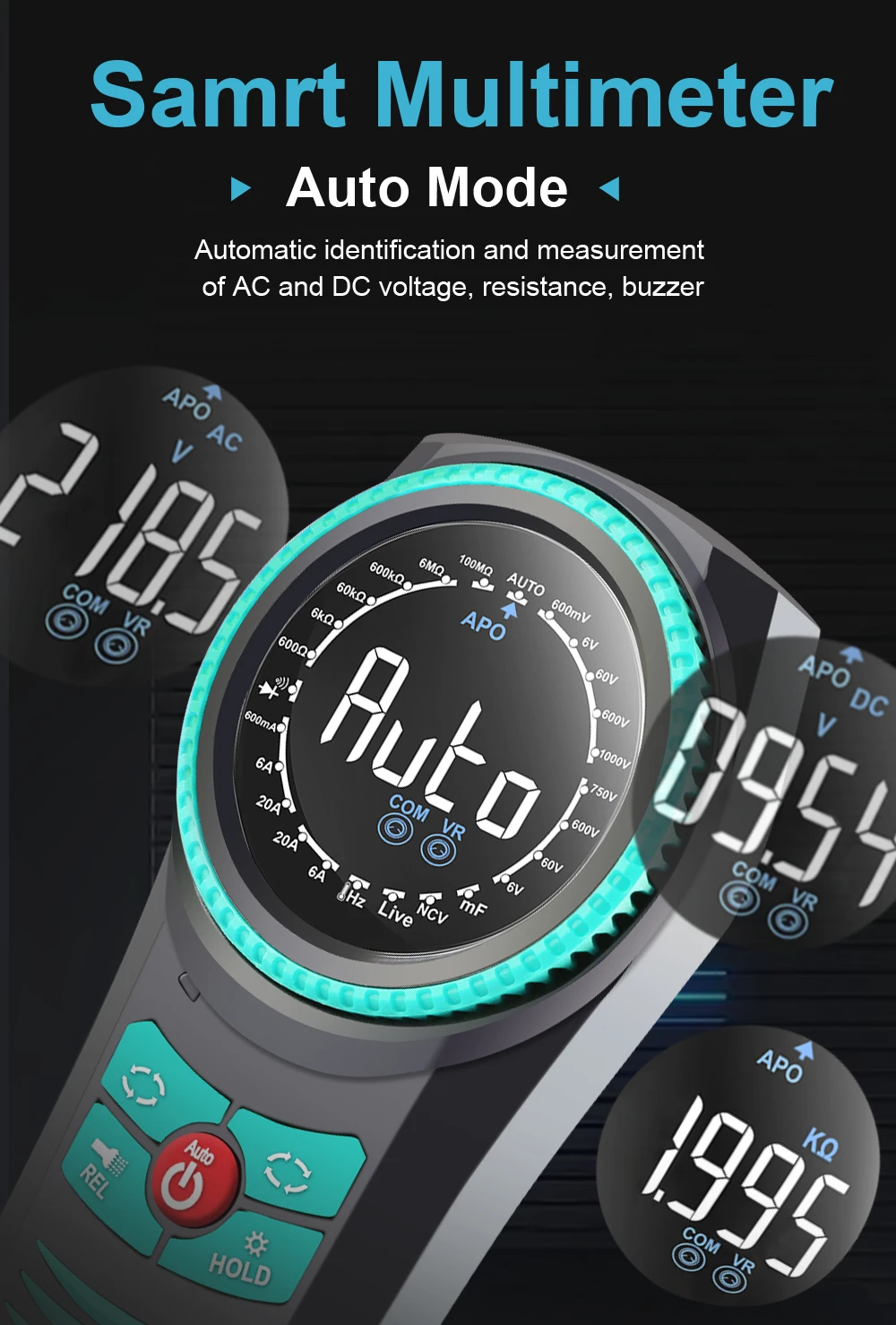

  • AUTO Intelligent Measurement Mode
  • Measures AC/DC Voltage up to 1000V DC & 750V AC
  • Measures AC/DC Current up to 20A
  • Resistance Measurement up to 100MΩ
  • Capacitance Measurement up to 60mF
  • Frequency Measurement up to 20MHz
  • Temperature Measurement (189C Model)

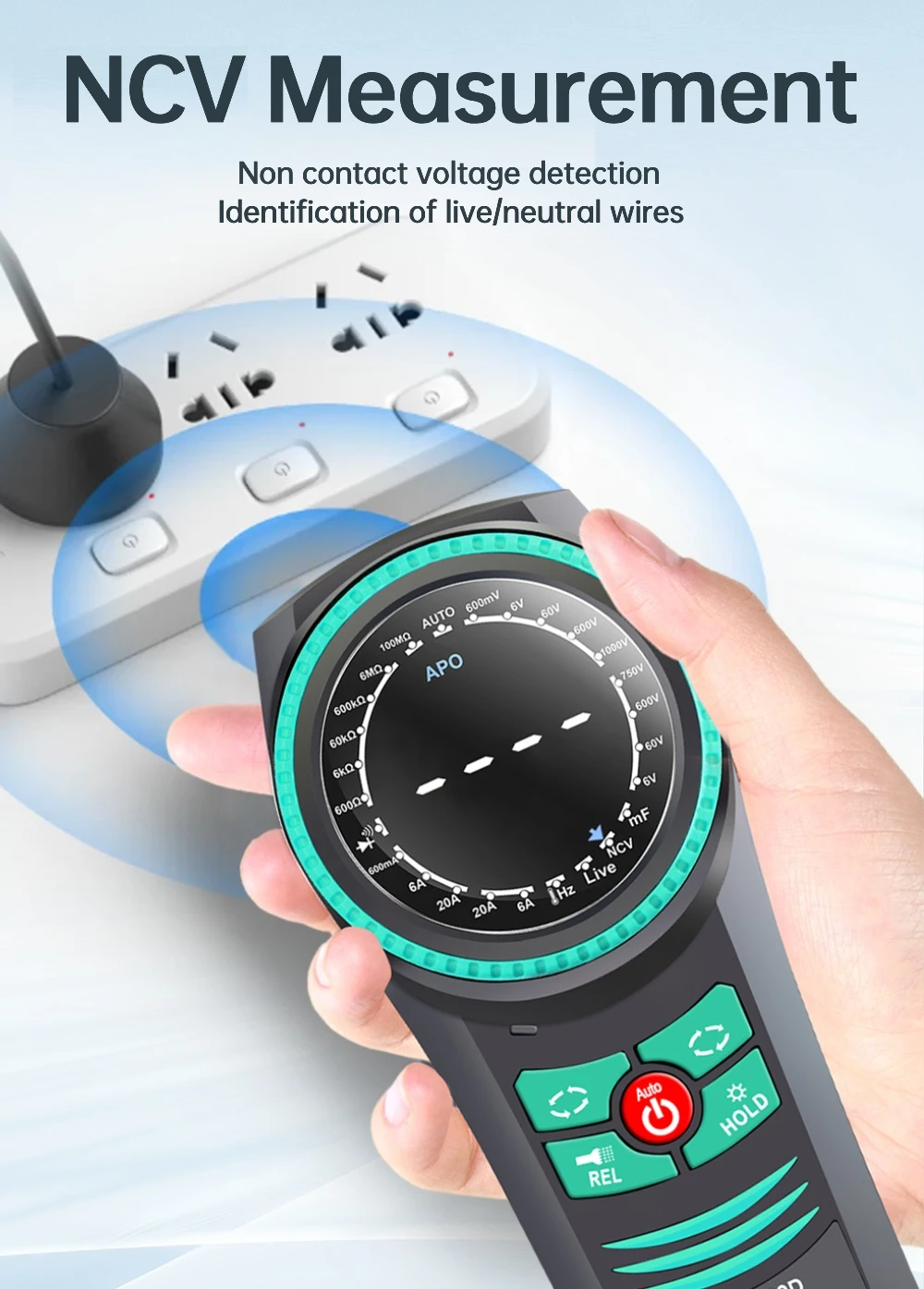

  • NCV (Non-Contact Voltage) Detection
  • Live & Neutral Wire Identification

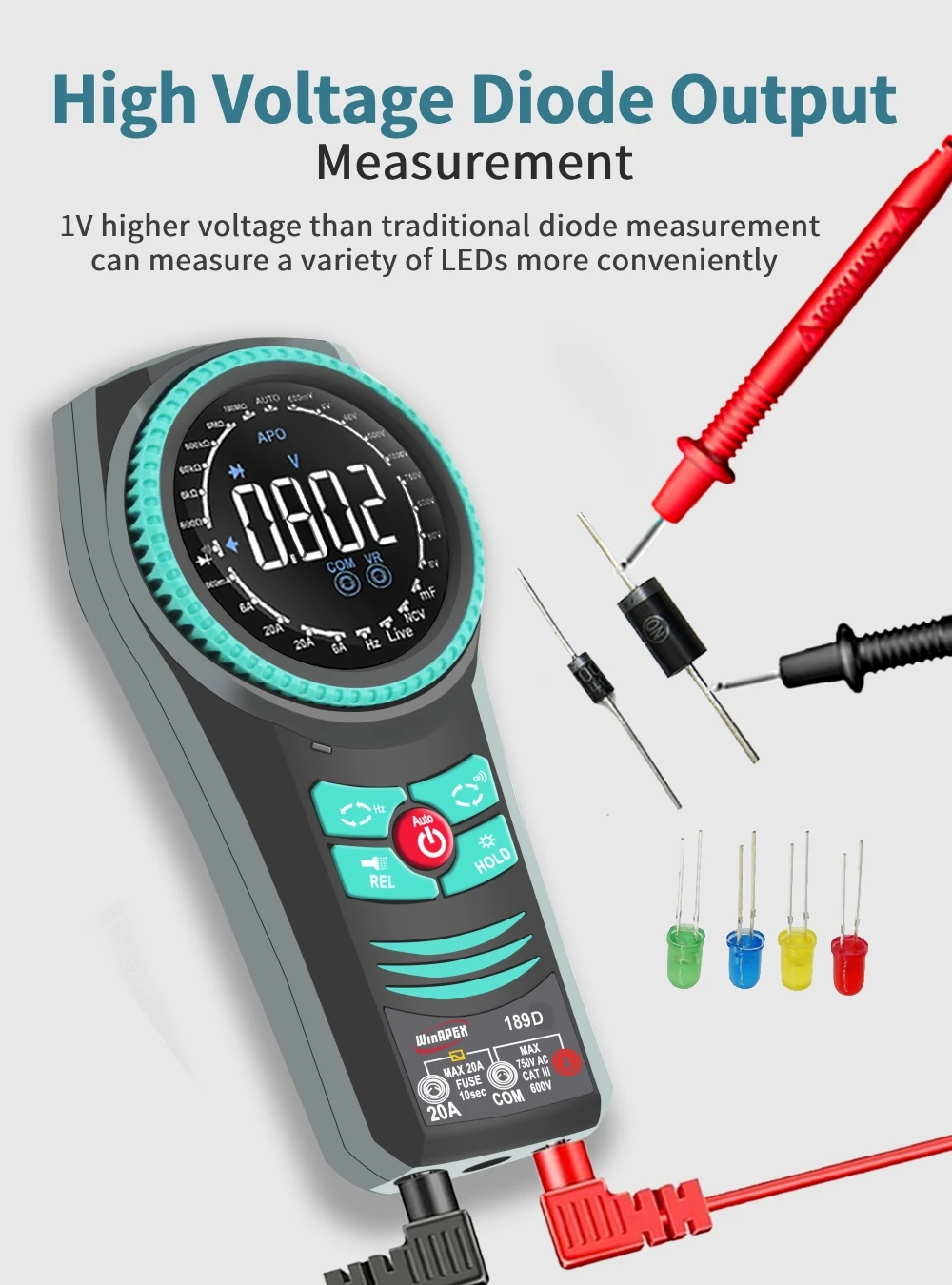

  • Diode & Continuity Test

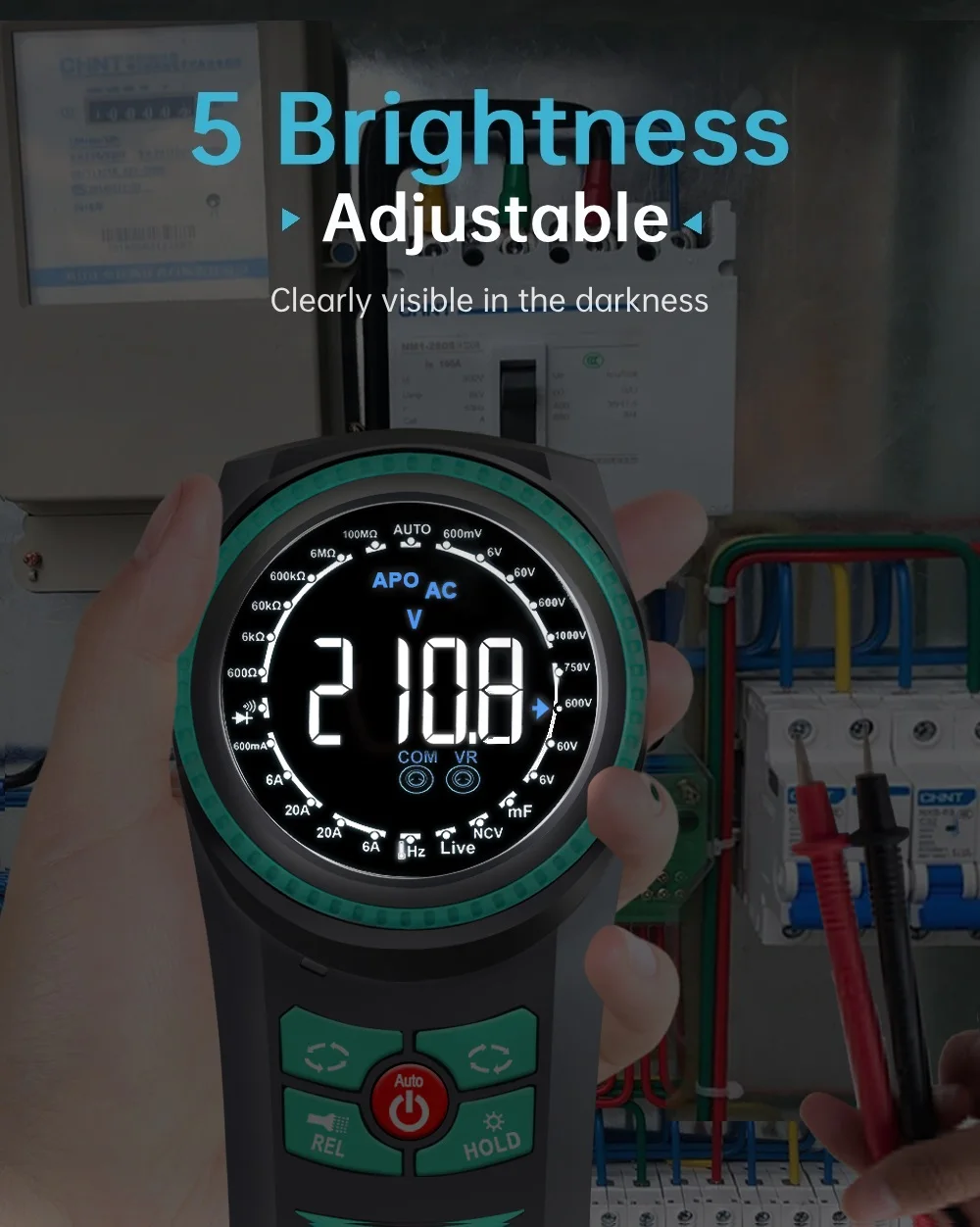

  • Ultra-Bright 5-Level Adjustable Backlight
  • Built-in LED Flashlight
  • Low Battery Indicator
  • Overload Protection
  • Automatic Polarity Display
  • Portable Lightweight Design

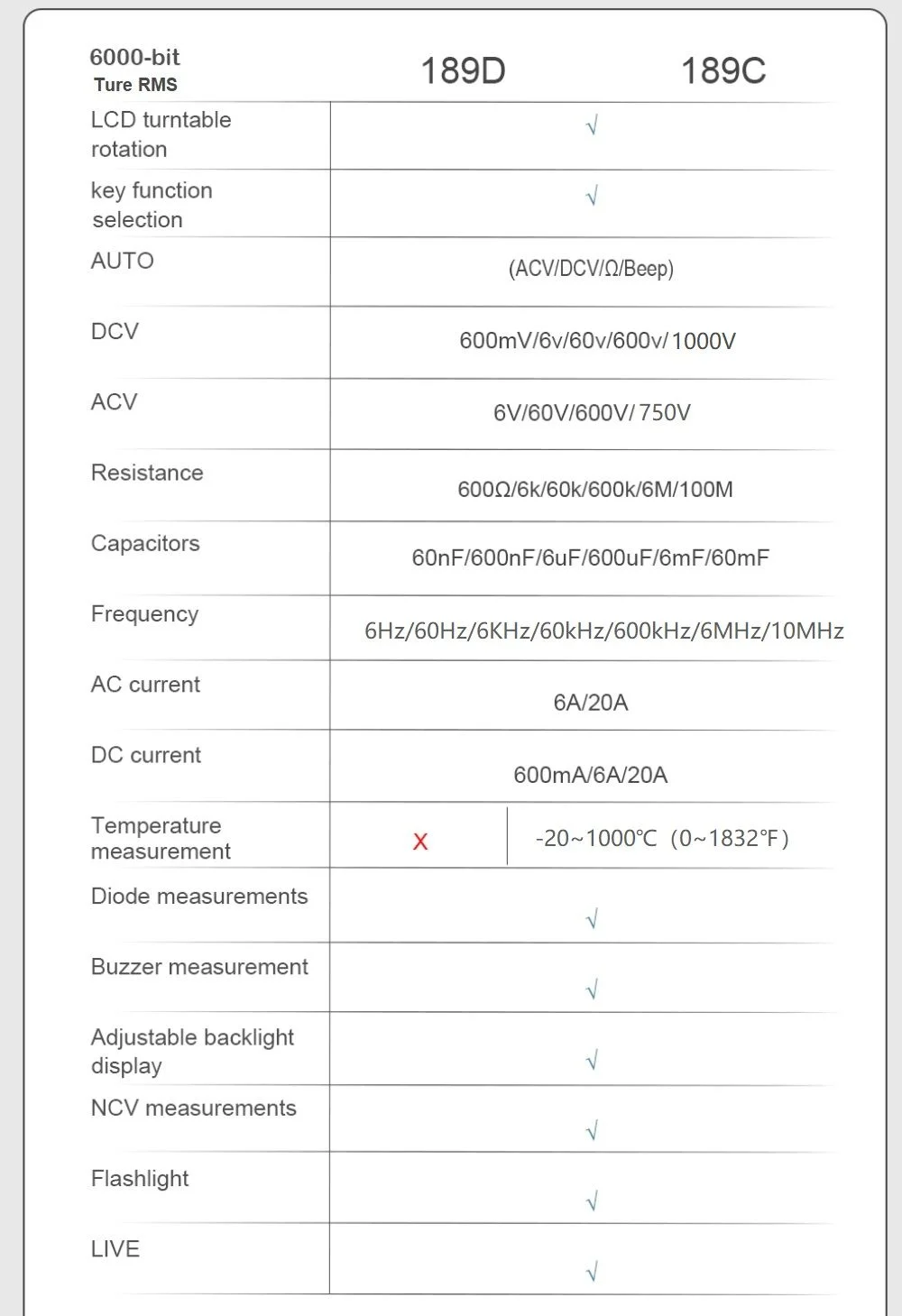

Specifications

Specification Details
Brand WinAPEX
Model 189C
Display 6000 Counts Color LCD
Measurement Method Dual Integration A/D Conversion
True RMS Supported
DC Voltage 600mV / 6V / 60V / 600V / 1000V
AC Voltage 6V / 60V / 600V / 750V
DC Current 600mA / 6A / 20A
AC Current 6A / 20A
Resistance 600Ω – 100MΩ
Capacitance 60nF – 60mF
Frequency 6Hz – 20MHz
Temperature -20°C to 1000°C (-4°F to 1832°F)
Diode Test Supported
Continuity Test Supported (Buzzer)
NCV Detection Supported
Live/Neutral Wire Detection Supported
Flashlight Built-in LED
Backlight 5-Level Adjustable
Sampling Rate Approx. 3 Times/Second
Power Supply 2 × 1.5V AA Batteries (Not Included)
Working Temperature 0°C – 40°C (RH < 80%)

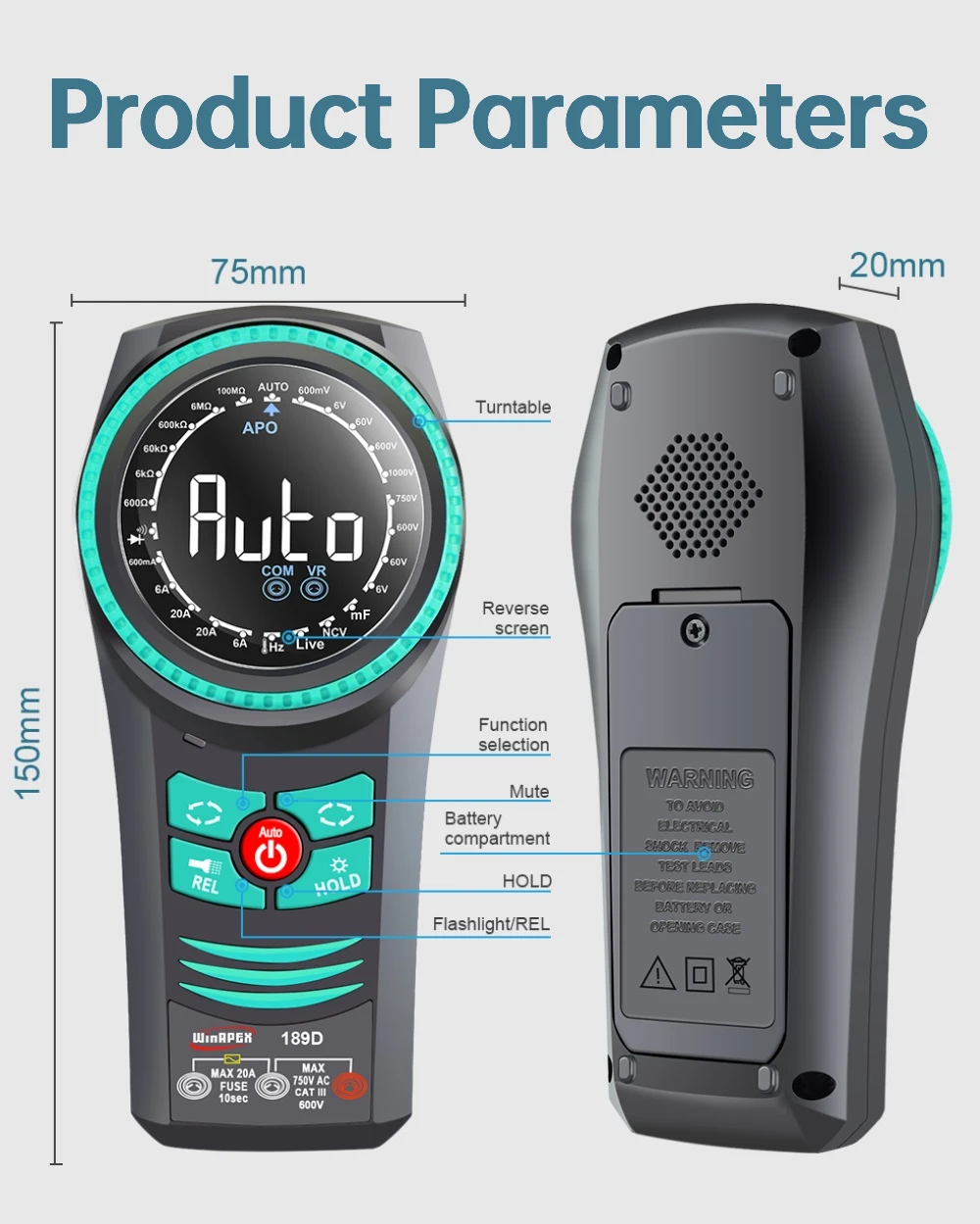

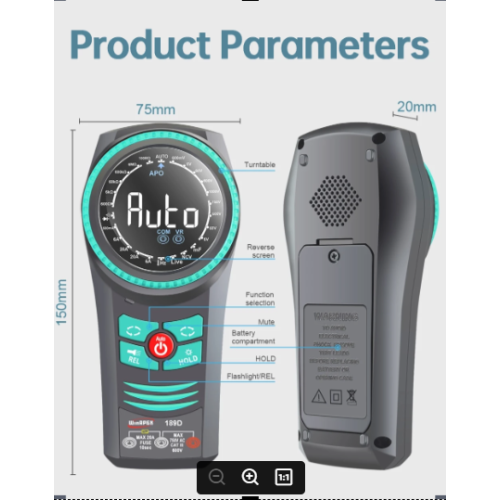

Dimensions 153 × 70 × 33 mm
Weight Approx. 200 g
Origin Mainland China

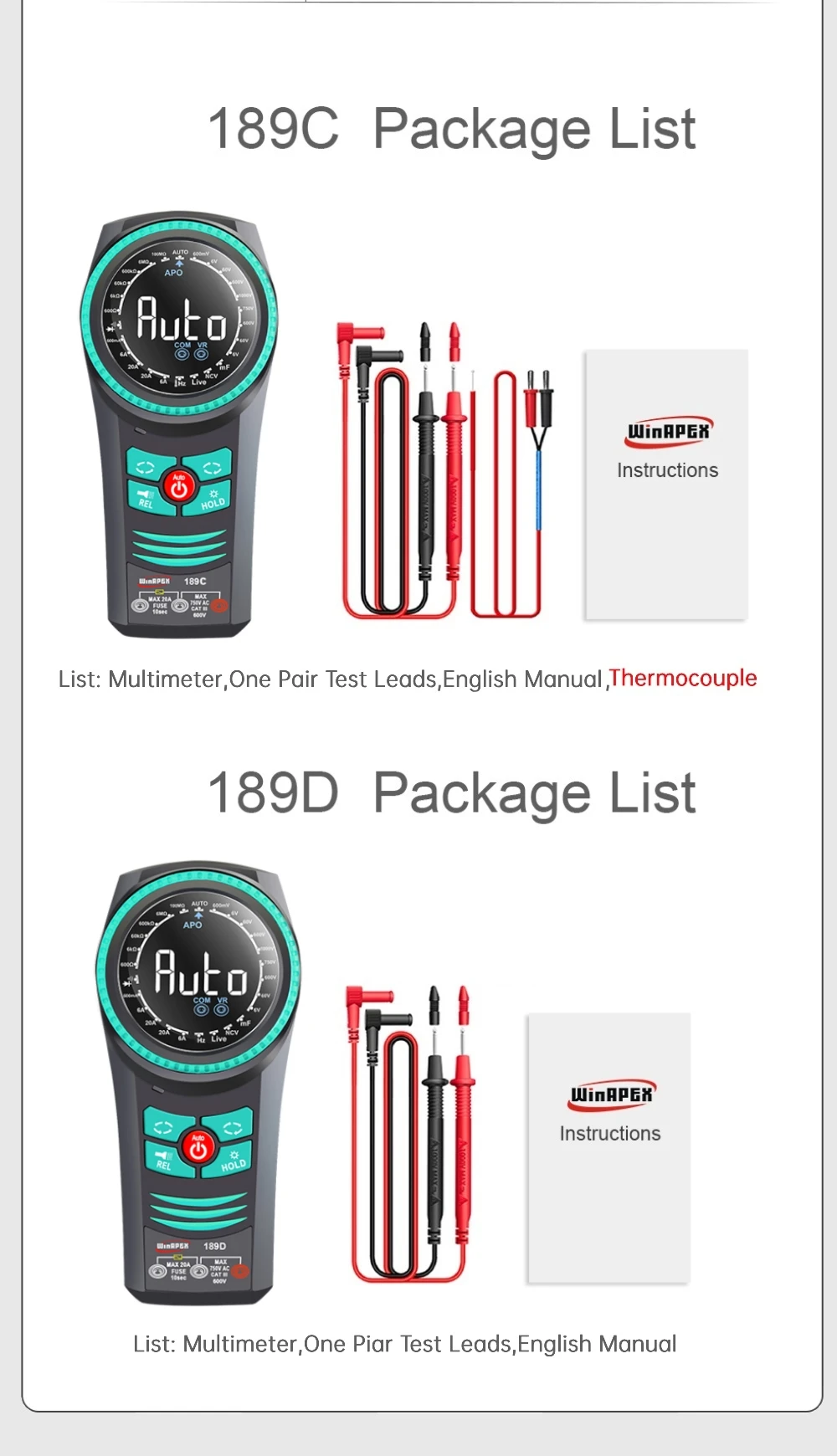

Package Contents

  • 1 × WinAPEX 189C Smart Rotary Dial Multimeter
  • 1 × Test Lead Set
  • 1 × K-Type Thermocouple (189C Only)
  • 1 × English User Manual

Applications

  • Electrical Installation & Maintenance
  • Industrial Equipment Testing
  • Automotive Diagnostics
  • Electronic Circuit Repair
  • HVAC Maintenance
  • Home Appliance Repair
  • Laboratory & Educational Use
  • DIY Electronics Projects

  • Availability: 100 In Stock
  • Model: WinAPEX 189C
  • Manufacturer: UNI-T
