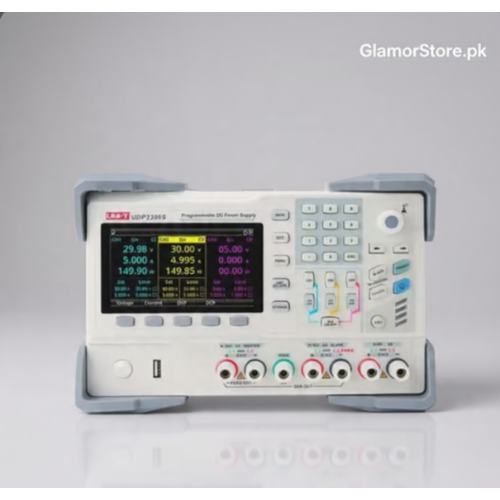

Products Details of UNI-T UDP3305S Programmable Linear DC Laboratory Power Supply 30V 5A Voltage Regulator With 4 Channels
Product Specifications Table (UNI-T UDP3305S)
Specification | Details |
High-concerned chemical | None |
Voltage | Others |
Origin | Mainland China |
Brand Name | UNI-T |
Input Voltage | AC 100V / 120V / 220V / 230V |
Output Power | 348W |
Output Voltage | 30V |
Output Current | 5A |
Model Resolution | 1mV / 1mA |
Description
UDP3000S Series Programmable Linear DC Power Supply
The UDP3000S series is a high-performance programmable linear DC power supply. It has a clear LCD user interface, excellent performance indicators, a variety of analysis functions and communication interfaces. It can meet the diversified test needs of users. It aims to provide cost-effective DC programmable power supply equipment for teaching, scientific research, industry and other fields.
Features
● Maximum power up to 328W ● Four channel independent output：CH1/CH2: 0~30V/5A,CH3：0~6V/3A, CH4：5V/2A ● Multiple protection：OCP/OVP/OTP ● Excellent load regulation and line regulation ● Ultra low output ripple and noise ● Support one key serial and parallel output function ● The 4.3 inch TFT display can display three channels and multiple parameters at the same time ● List / delayer function to control voltage and current output as required ● External trigger function to realize industrial automation control ● Provide USB host, USB device, LAN, RS232, digital IO and other interfaces ● With waveform display function, real-time and dynamic display of output voltage / current / power waveform ● Intelligent speed control of fan can effectively reduce fan noise during operation ● Support 10 groups of file storage and transfer out, and support USB FLASH read and write.
Model | UDP3305S | |
Channel | Channel | 4 |
Output Rating | Voltage | CH1&CH2:0~30V |
Voltage | CH3:0~6V | |
Voltage | CH4:5V(USB Output) | |
Current | CH1&CH2:0~5A | |
Current | CH3:0~3A | |
Current | CH4:2A(USB Output) | |
Power | 328W | |
CV mode | Line Regulation | ≤0.01%+2mV |
Load Regulation | ≤0.01%+2mV | |
Regulation | <350μVrms/2mVpp(5Hz-1MHz) | |
Reaction time | ≤50μs(50% load variation, minimum load 0.5A) | |
Command processing time | <10ms | |
CC mode | Line Regulation | ≤0.01%+250μA |
Load Regulation | ≤0.01%+250μA | |
Ripple current | ≤2mArms | |
Tracking mode | Parallel- Line Regulation | ≤0.01%+2mV |
Parallel - Load Regulation | ≤0.01%+2mV | |
Series - Line Regulation | ≤0.01%+3mV | |
Series - Load Regulation | ≤300mV | |
Tracking error (10-30V) | ≤0.5%+10mV(No load) | |
Tracking error (0-9.99V) | ≤0.5%+30mV(No load) | |
Access load | ≤300mV | |
Display | Voltage display | 5-digit(4.3inch LCD) |
Current display | 4-digit(4.3inch LCD) | |
Programming | Voltage resolution | 1mV |
Current resolution | 1mA | |
Measure | Readback resolution-Voltage | 1mV |
Readback resolution -Current | 1mA | |
Programming accuracy - Voltage | ±(0.03%+10mV) | |
Programming accuracy - Current | ±(0.2%+5mA) | |
Readback accuracy - Voltage | ±(0.03%+10mV) | |
Readback accuracy - Current | ±(0.15%+5mA) | |
Voltage speed | CH1 Rise (full/no load) | <50ms/<30ms |
CH1 Fall (full/no load) | <45ms/<400ms | |
CH2 Rise (full/no load) | <50ms/<30ms | |
CH2 Fall (full/no load) | <45ms/<400ms | |
CH3 Rise (full/no load) | <15ms/<13ms | |
CH3 Fall (full/no load) | <22ms/<100ms | |
Temperature coefficient | CH1 Voltage | 0.01%+5mV/℃ |
CH1 Current | 0.01%+2mA/℃ | |
CH2 Voltage | 0.01%+5mV/℃ | |
CH2 Current | 0.01%+2mA/℃ | |
CH3 Voltage | 0.01%+2mV/℃ | |
CH3 Current | 0.01%+2mA/℃ | |
Channel 4 (USB output) | Output voltage | 5V±0.25V |
Output current | 2A | |
Input | Voltage | AC 100V/120V/220V/230V±10% |
Frequency | 50/60Hz | |
Power | MAX 600W | |
Fuse | AC220V: T4AL250V | |
AC110V: T8AL250V | ||
Environment | Operating temperature | 0°C-40°C |
Operating humidity | 20%-80%(non-condensing) | |
Storage temperature | -10°C-60°C | |
Altitude | ≤2000m | |
Pollution degree | 2 | |
Size and weight | Size | 355mm*240mm*168mm |
Weight | 10.2kG | |
