UNI-T UT343A Paint Thickness Teste Digital Coating Gauge Meter Cars Paint Thickness Teste Metal Detector FE/NFE Measurement
Key Attributes | Details |
Type | Testing Machine |
Voltage | / |
Protection Class | / |
Warranty | 1 Year |
Customized Support | OEM, ODM |
Power | 1.5V × 2 |
Accuracy | 1% |
Place of Origin | Guangdong, China |
Brand Name | UNIT |
Measuring Range | 0~1750um |
Measurement Method | Single / Continuous |
Metal Type | Ferrous / Non-ferrous |
Display Type | EBTN Display |
Brightness Control | LCD Brightness Control |
Audio Alarm | Yes |
Packaging and Delivery
Packaging Details | Information |
Selling Units | Single Item |
Single Package Size | 12 × 5.3 × 3.7 cm |
Single Gross Weight | 2.000 kg |
Product Description

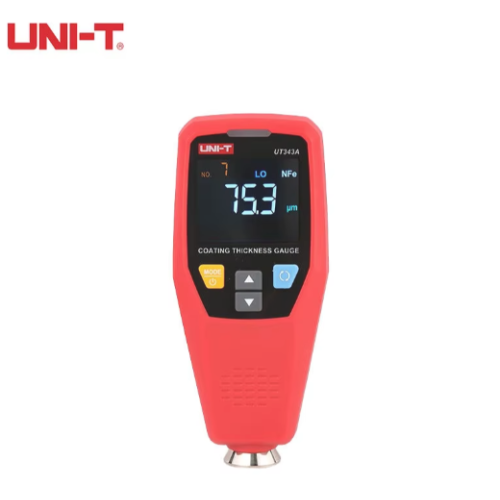

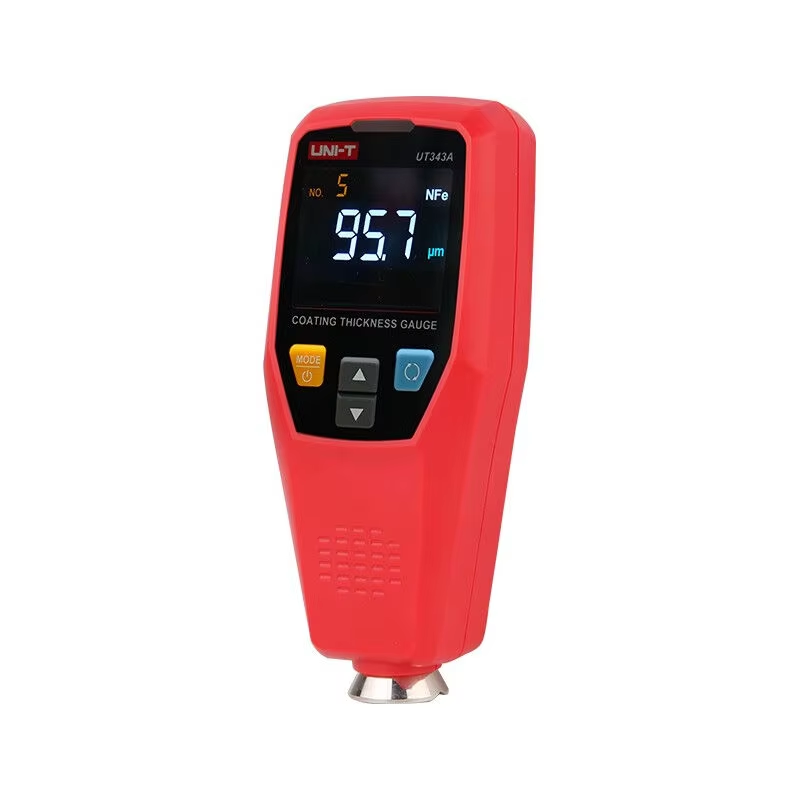

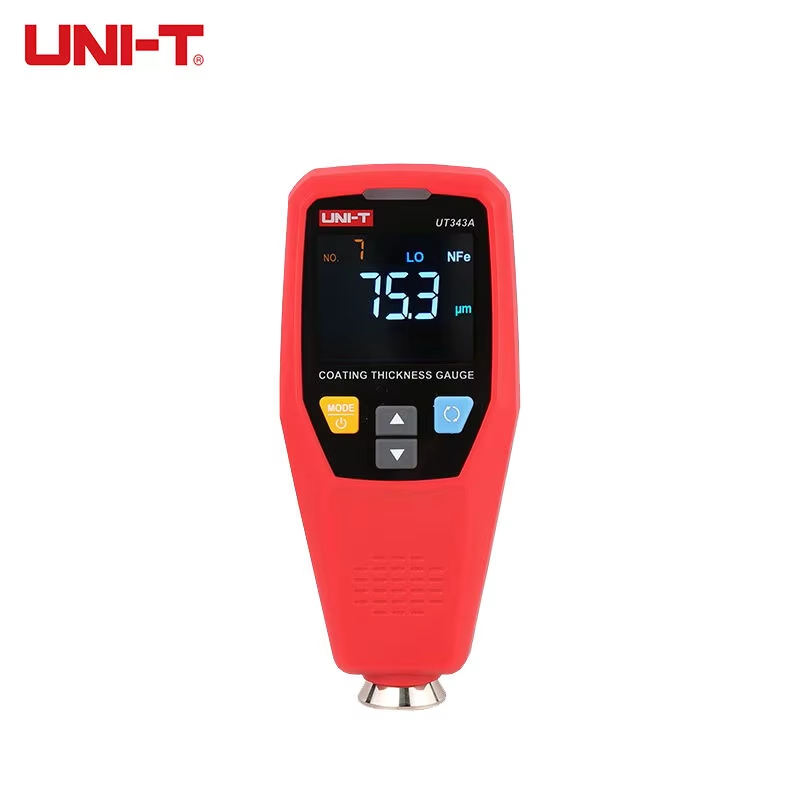

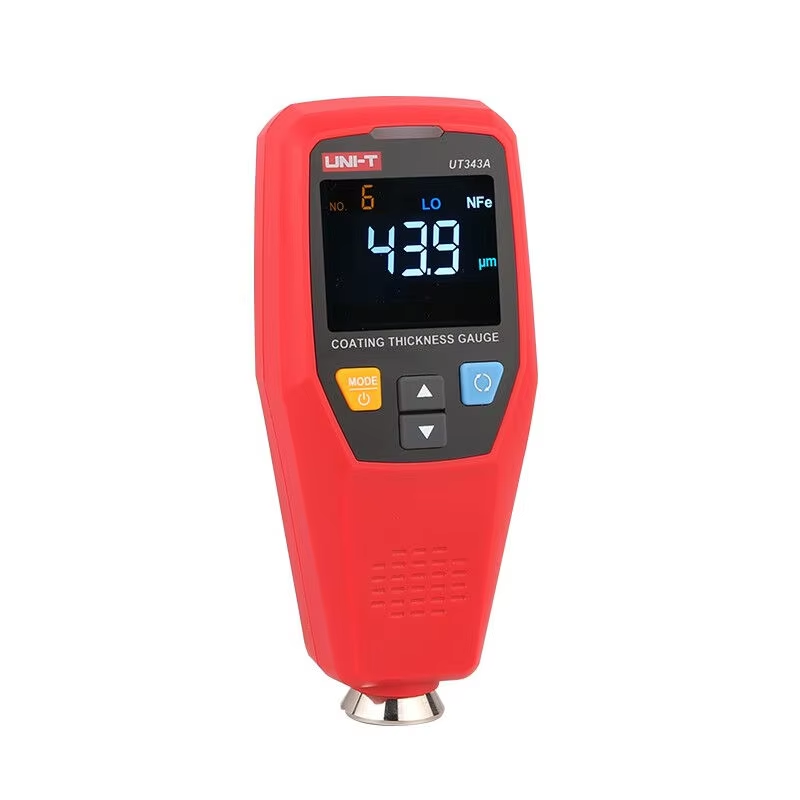

UT343A Rotatable screen Coating Thickness Gauge range up to 1750um LED/Buzzer alarm
1. Data storage: 199 groups
2. Measurement method: Single/Continuous
3. Max/Min/Avg
4. Unit conversion (um/mil)
5. Rotatable screen
6. LED/Buzzer alarm
7. Auto power off
Specifications | Range |
Certificates | RoHS |
Measuring range | 0~1750um |
Accuracy | ±(3%H+1)um |
Measurement method | Single/Continuous |
Measurement mode | Max/Min/Avg |
Metal type | Ferrous/non-ferrous |
Features | |
Display type | EBTN display |
LCD brightness control | √ |
Rotatable screen | √ |
Unit conversion | √ |
Audio alarm | √ |
LED alarm | √ |
Data storage | 199 groups |
Auto power off | √ |
Low battery indication | √ |
General Characteristics | |
Power | 1.5V battery (LR03) x 2 |
Product color | Red and grey |
Product net weight | About 111g |
Product size | 117mm x 53mm x 37mm |
Standard accessories | Ferrous substrate, non-ferrous substrate |
Standard individual packing | Gift box, English manual |
