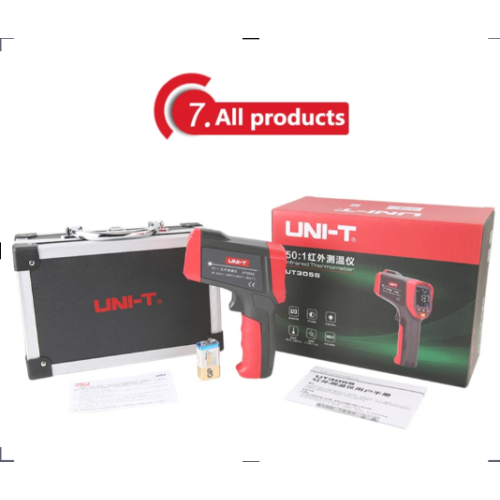

Product Details Of UNI-T UT305S Digital Infrared Thermometer Non-Contact Temperature Meter Termometer Industrial Measuring Instruments For Repair
Specifications | Details |
Battery Included | No |
High-concerned Chemical | None |
Theory | Infrared Thermometer |
Power Type | 9V Battery |
Certification | CE, RoHS |
Model Number | UT305S |
Origin | Mainland China |
Max Measuring Temperature | 120°C & Above |
Style | Handheld |
Brand Name | UNI-T |
Is Smart Device | No |
Use | Industrial |
Temperature Range (Celsius) | -50 ~ 2000°C |
Temperature Range (Fahrenheit) | -58.0 ~ 3632°F |
LCD Display | EBTN |
Resolution | 0.1°C |
D:S Ratio | 20:1 |
Emissivity | 0.1 ~ 1.0 Adjustable |
Data Storage | 99 |
Electronic Thermometer | Temperature Sensor |
Thermometer Outdoor | Termometer |
Description
UNI-T UT305S Digital Infrared Thermometer Non-Contact Temperature Meter Termometer Industrial Measuring Instruments For Repair
UT305S infrared thermometer can measure temperature by laser. UT305S has a 50:1 D:S ratio, so it can measure long range temperature points of interest with great accuracy. UT305S also has 99 sets of data storage and USB data transmission. It is an ideal tool for industrial quality inspection such as HVAC and electronics manufacturing.
Features
● °C/°F selection ● 50:1 distance coefficient ratio ● Laser switch ● Data hold/LCD backlight ● Auto power off ● Tripod mounting hole ● Low battery indication ● MAX/MIN/AVG/DIFF mode ● High/low alarm
Parameter
Specifications | UT305S |
Certifications | CE/RoHS |
Temperature range (℃) | -50°C~2000°C |
Temperature range (℉) | -58.0℉~3632℉ |
Accuracy | ±1.0℃ or ±1.0% |
Repeatability | 0.7℃ or 0.7% |
LCD display | EBTN |
High/low temperature LED alarm | √ |
Trigger lock | √ |
Resolution | 0.1°C |
D:S ratio | 2:01 |
Response time | 250ms (95% of reading) |
Emissivity | 0.1~1.0 adjustable |
Laser type | Class 2 |
Laser power | ＜1mW |
Laser wavelength | 630nm~670nm |
Spectral response | 8μm~14μm |
Data storage | 99 |
General Characterisitics | |
Power | 9V Battery (1604S) |
Display | 35mm x 35mm |
Product net weight | 310g |
Product size | 172mm x 113.5mm x 53mm |
50:1 Non-Contact Infrared Thermometer
UT305S dual laser infrared thermometer
