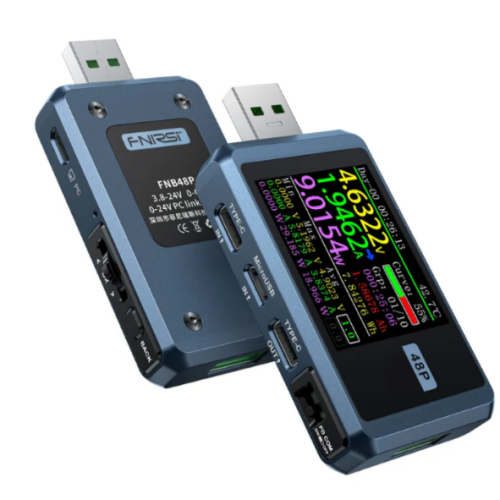

FR FNB48P BT USB Tester

Description: The FR FNB48P BT is a multifunction USB voltage-current-power tester with Bluetooth connectivity for wireless data logging. It measures 4 V–24 V, up to 6.5 A (max 156 W) for chargers, cables, and power banks. Supports fast-charge protocols like QC 2.0/3.0, PD 2.0/3.0, FCP, SCP, VOOC, WARP, AFC, etc. Features a 1.77-inch color TFT display with auto-rotation, ripple and temperature monitoring. Reads D+/D- lines, cable resistance, E-Marker chips, and logs capacity, energy, and time. Its CNC-metal housing ensures durability, accuracy, and stable performance for USB testing. Key Features: 1. Bluetooth Connectivity: Wireless data transfer to smartphone or PC for live monitoring and logging. 2. Wide Measurement Range: Measures 4 V – 24 V voltage, up to 6.5 A current, and 156 W power. 3. Fast-Charge Protocol Support: Detects and triggers QC 2.0/3.0, PD 2.0/3.0, FCP, SCP, AFC, VOOC/WARP, SuperVOOC, and MTK-PE. 4. 1.77-inch Colour TFT Display: Bright screen with gravity-based auto-rotation for any viewing angle. 5. Data Logging & Statistics: Stores 10 sets of capacity, energy, and time records with up to 9 hours of continuous logging. 6. Cable & Resistance Testing: Measures internal/cable resistance and reads E-Marker chips on PD cables. 7. Advanced Monitoring: Ripple/waveform detection, start-up time capture, temperature read-out, and D+/D- line voltage display. 8. Durable CNC-Metal Housing: Provides better heat dissipation, durability, and shielding from interference.

• Availability: 50 In Stock
• Model: FR FNB48P BT USB Tester
