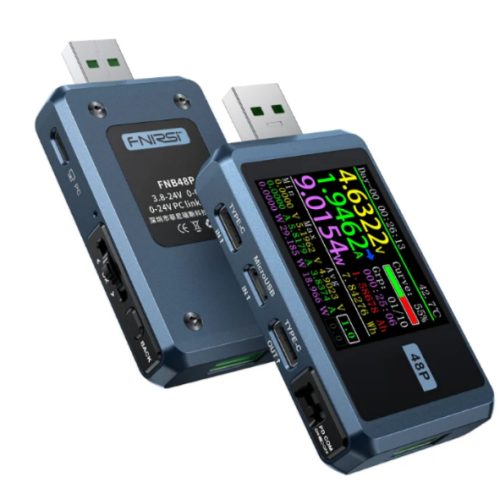

FR FNB48P USB Tester

Description: The FR FNB48P (FNIRSI FNB48P) is a multifunction USB voltage-current-power tester for testing chargers, cables, power banks, and fast-charge protocols. It features a 1.77-inch colour TFT screen, CNC-metal housing, precise measurement of 4 V – 24 V up to 6.5 A (max 156 W), and advanced tools like ripple detection, protocol triggering, data logging, cable resistance measurement, and temperature monitoring. Key Features: : 1. Wide Voltage & Current Measurement: Measures 4 V to 24 V and up to 6.5 A with high precision (0.00001 V / 0.00001 A resolution). 2. High-Power Capability: Supports load testing up to 156 W for chargers, power banks, and cables. 3. Protocol Triggering & Detection: Recognises and triggers QC2.0 / QC3.0 / PD2.0 / PD3.0 / FCP / SCP / AFC / VOOC / WARP / SuperVOOC / MTK-PE fast-charge modes. 4. Data Logging & Power Statistics: Records voltage, current, capacity, energy, and time with a 10-set memory and up to 9 hours of continuous logging. 5. Cable & Internal Resistance Test: Measures wire voltage drop/resistance and reads E-Marker chip info on PD-rated cables. 6. 1.77-inch Colour TFT Display: Bright full-colour screen with gravity-based auto-rotation for easy viewing in any orientation. 7. Advanced Extras: Ripple/waveform monitoring, start-up time capture, temperature read-out, D+/D– line voltage display, and CNC metal shell for durability and shielding.

• Availability: 50 In Stock
• Model: FR FNB48P USB Tester
