FR LCRST1 SMD TESTER

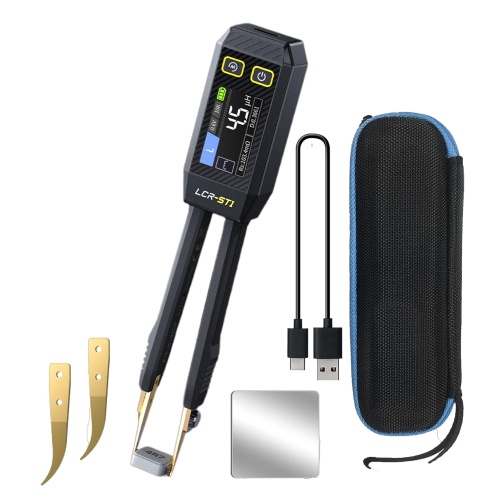

Description: The FNIRSI LCR-ST1 is a miniature smart tweezer-style LCR/ESR tester designed for measuring small surface-mount (SMD) components (resistors, capacitors, inductors, diodes) quickly and conveniently. It uses tweezers as probes so you can clamp directly onto a component instead of needing external leads. It operates in “auto mode” to recognize the type of component under test, and can also show derived parameters such as ESR, dissipation (D), quality factor (Q), impedance (Z), etc. Key Features: Supports measurement of resistance (R), capacitance (C), inductance (L), and diode test. Test frequencies selectable: 100 Hz, 1 kHz, 10 kHz Test voltage levels: 0.3 Vrms and 0.6 Vrms Component recognition / auto mode: the device attempts to detect whether the component is a resistor, capacitor, or inductor and displays the appropriate parameter. Parameter display: shows R, Z, D, Q, ESR, X and other derived values in addition to the main measurement. Memory & data export: stores measurement records internally, and you can connect to a PC (via USB) and export data (e.g., CSV). Replaceable tweezer tips/heads (e.g. pointed, hook) to allow better contact types in different situations. Auto shut-off, data hold, auto zero (calibration) of the tweezers when tips are shorted (zeroing out residual resistance) Firmware upgrades are possible via USB (Type-C). Lightweight and compact design for handheld use in labs, repair benches, and fieldwork.

• Availability: 50 In Stock
• Model: FR LCRST1 SMD TESTER
