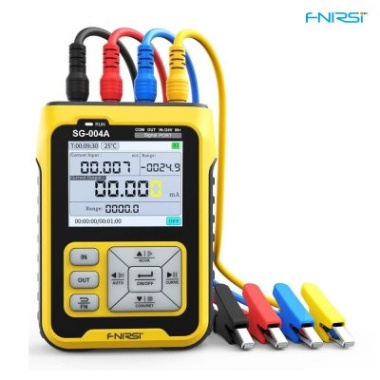

FR SG004A MULTIFUNCTION CALIBRATOR

Description: The SG-004A is a palm-sized multifunction signal calibrator capable of sourcing and measuring a variety of industrial signals (current, voltage, thermocouples, resistance, frequency, etc.). It is used for calibration, loop simulation, instrumentation testing, and process control tasks. Key Features: Sources and measures voltage, current, millivolts, resistance, thermocouples, frequency / PWM signals Current (mA): 0.000 to 24.000 mA (active & passive) Voltage: 0.000 to 24.000 V Millivolt (mV): –10.00 to 100.00 mV Frequency / PWM: 0 to 9,999 Hz Thermocouple support: many types (K, J, E, T, R, S, B, N, etc.) with automatic cold junction compensation 12 V / 24 V loop power selectable (to power external transmitters) Programmable output modes: stepping, ramping (rise/fall, cyclic) Real-time curve display and history recording (up to ~100,000 records) Communication: USB (for firmware upgrade, emulated U-disk), Modbus slave support Built-in rechargeable battery: 3,000 mAh, USB-C charging, supports long standby (≈24 h) Durable construction: ABS shell, rubberized housing edges for shock protection

• Availability: 50 In Stock
• Model: FR SG004A MULTIFUNCTION CALIBRATOR
