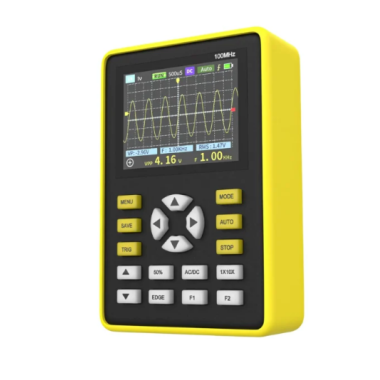

FR 5012H 100MHz SINGLE CHANNEL OSCILLOSCOPE

Description: The FR 5012H (also known as FNIRSI 5012H) is a compact, handheld digital oscilloscope designed for diagnostics, maintenance, and R&D use. It offers a 100 MHz analog bandwidth with real-time sampling up to 500 MS/s, making it capable of capturing fast signal transitions. The device includes a 2.4-inch color TFT display (320×240), supports waveform storage and reviewing, and is protected by a silicone anti-slip / shock sleeve. It is battery powered (3000 mAh) for portable operation, offering hours of use away from mains power. Features: 100 MHz analog bandwidth with 500 MS/s real-time sampling for capturing fast signals. 2.4-inch TFT color LCD (320×240) with clear waveform display. Vertical sensitivity: 50 mV/div to 100 V/div with time base: 50 s/div to 6 ns/div. High-voltage protection: up to 80 V (1× probe) and 800 V (10× probe) input. Waveform storage: built-in memory stores up to ~2,000 waveform snapshots. Trigger modes: Auto / Normal / Single with rising or falling edge trigger. Rechargeable 3000 mAh battery offering about 8 hours of portable use. Protective silicone sleeve for anti-slip, shock resistance, and durability.

• Availability: 50 In Stock
• Model: FR 5012H 100MHz SINGLE CHANNEL OSCILLOSCOPE
