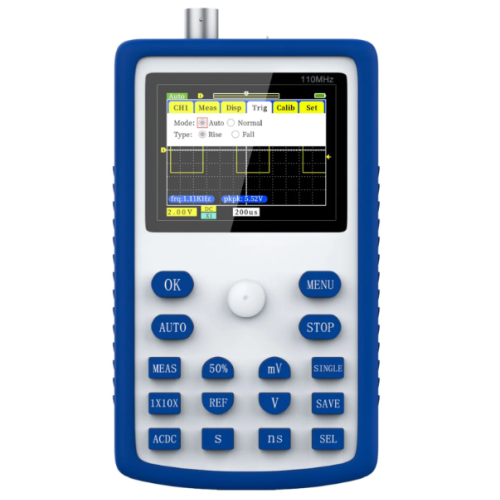

FR 1C15 110MHz SINGLE CHANNEL OSCILLOSCOPE

Description & Key Features: Single channel (1 input) handheld digital oscilloscope with 110 MHz analog bandwidth Real-time sampling rate: 500 MS/s Memory depth: 12 kpts Vertical sensitivity: 20 mV/div up to 100 V/div (with x1 / x10 probe) Time base range: 5 ns/div to 10 s/div Trigger modes: Auto / Normal; edge trigger (rising/falling) Display: 2.4-inch LCD, resolution 320 × 240 px Built-in 1 kHz calibration square wave (for probe compensation / calibration) Storage / waveform saving capability: can store snapshots and compare with real-time waveforms. Battery: 3000 mAh rechargeable battery, supports >10 hours operation Protective housing: silicone sleeve for anti-slip, shock absorption and drop protection

• Availability: 50 In Stock
• Model: FR 1C15 110MHz SINGLE CHANNEL OSCILLOSCOPE
