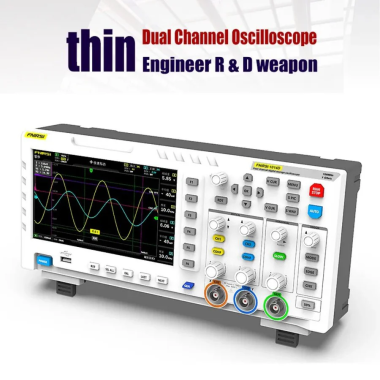

FR 1014D 100MHz 2 CHANNEL OSCILLOSCOPE

Description: The 1014D is a dual-channel digital storage oscilloscope combined with a DDS signal generator. It is intended for electronics debugging, design, repair, and lab use. It offers a compact form factor, real-time sampling, waveform capture, FFT analysis, and full trigger capabilities in a benchtop style unit. Key Features: 2 input channels, 100 MHz analog bandwidth each Real-time sample rate up to 1 GSa/s Memory depth: 240 Kbits Vertical sensitivity: 50 mV/div to 500 V/div Timebase range: 50 s/div to 10 ns/div Trigger modes: Auto, Normal, Single; trigger types: rising / falling edge Input coupling: AC / DC Included DDS signal generator: 14 standard waveforms, frequency up to 10 MHz FFT / spectral analysis & Lissajous display support Waveform / screenshot storage: built-in 1 GB memory USB interface for export of screenshots and data Built-in high-voltage protection to tolerate input up to 400 V in 10× probe mode

• Availability: 50 In Stock
• Model: FR 1014D 100MHz 2 CHANNEL OSCILLOSCOPE
