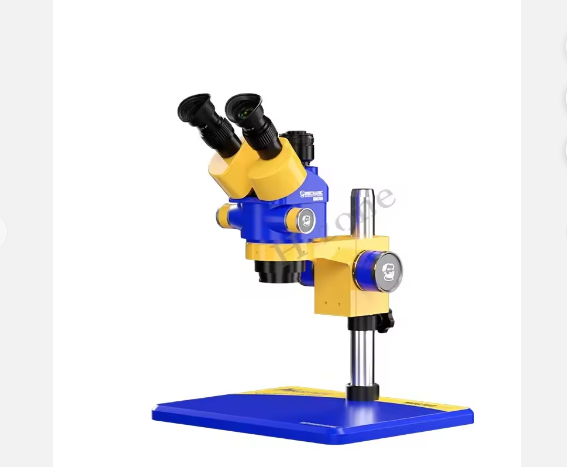

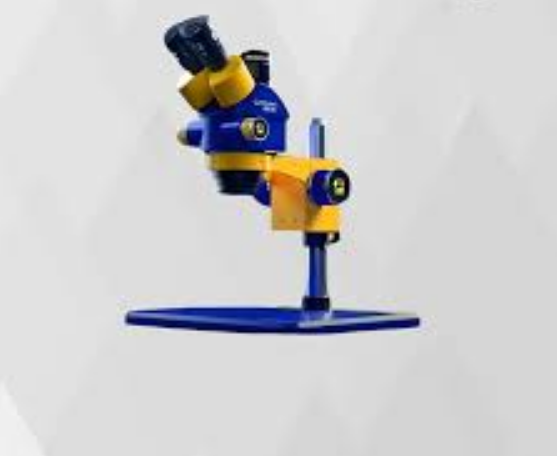

Description: The MC MOS760-B11 is a high-zoom trinocular stereo microscope designed for precision work and inspection in electronics, laboratory, and industrial settings. It offers a continuous 7× to 60× magnification range, giving both a broad overview and fine detail in one unit. The trinocular head allows simultaneous viewing through eyepieces and camera imaging. The 45° inclined head with 360° rotation and adjustable interpupillary distance ensures ergonomic flexibility. With a robust B11 column stand and modular design for auxiliary optics and lighting, the MOS760-B11 is built for prolonged use in demanding inspection and microassembly applications. Features: * Continuous zoom from 7× to 60× magnification * Trinocular head for simultaneous eyepiece and camera use * 45° inclined and 360° rotatable head for flexible viewing angles * Interpupillary distance adjustment (typical range approx. 54–76 mm) * Wide-field eyepieces (e.g. WF10×/25 mm standard) * Integrated LED illumination with adjustable brightness * Dust-proof optical paths * Modular support for auxiliary lenses (0.3×, 0.5×, etc.) * B11-type column base for stable mounting * Coarse focusing mechanism with smooth control * Suitable for PCB inspection, chip work, microfabrication, and quality inspection
