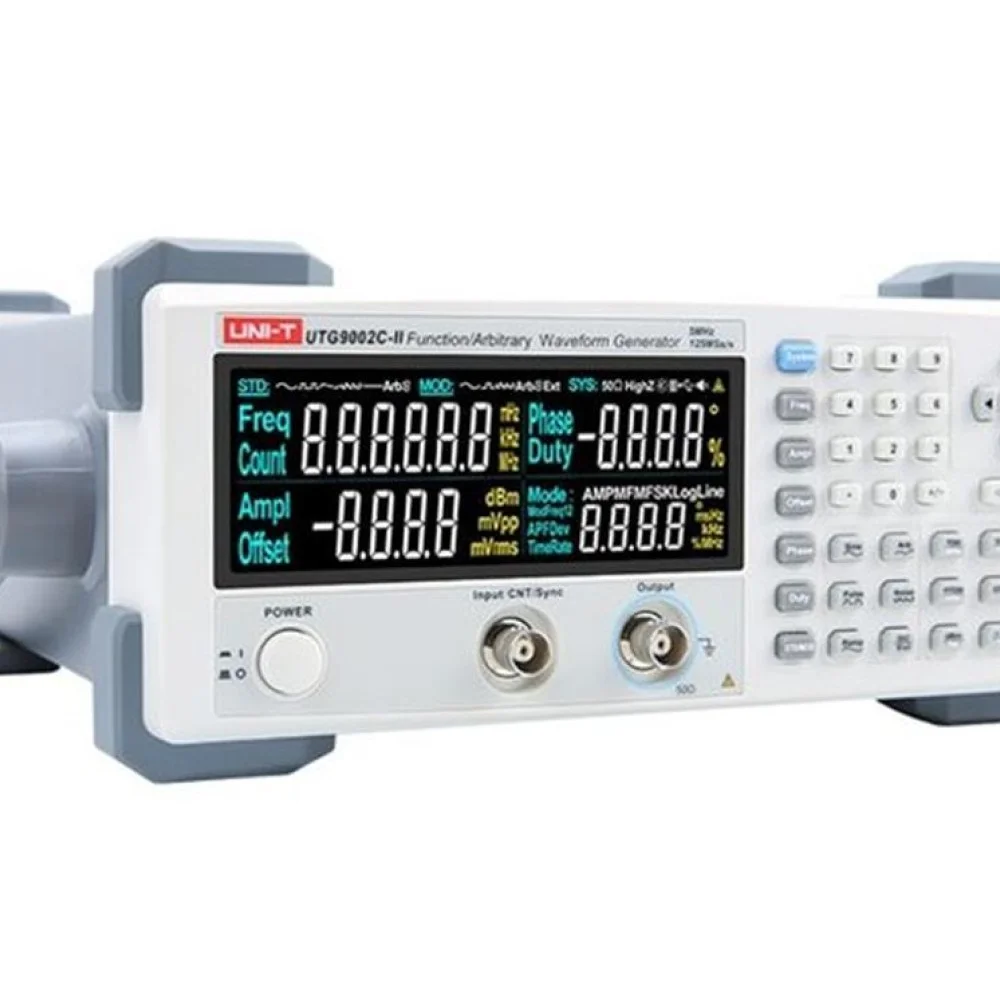

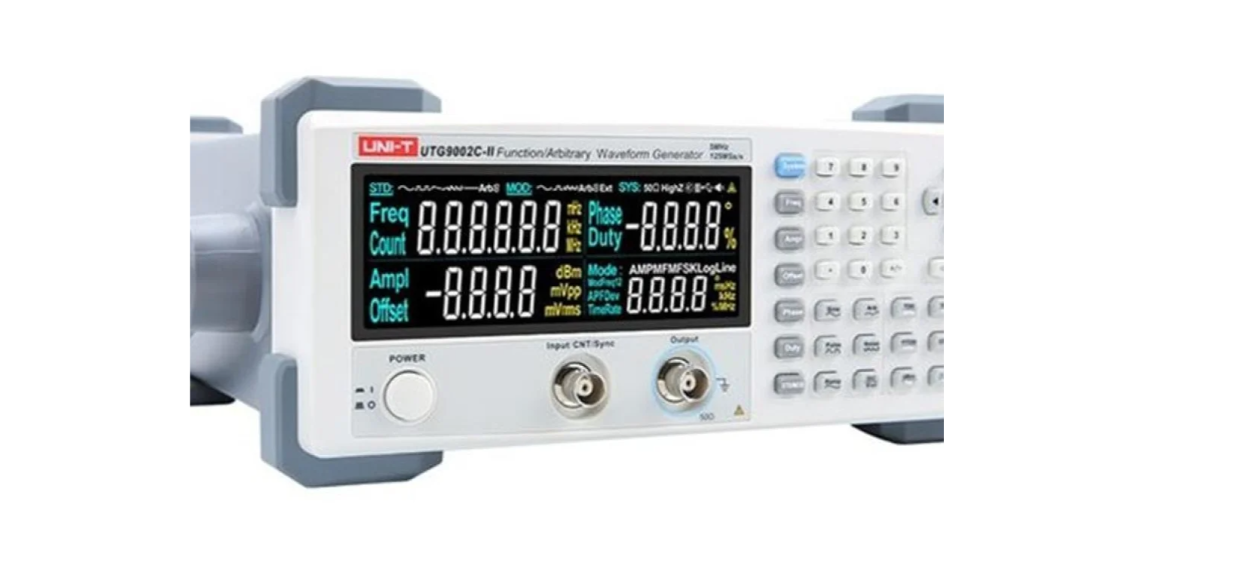

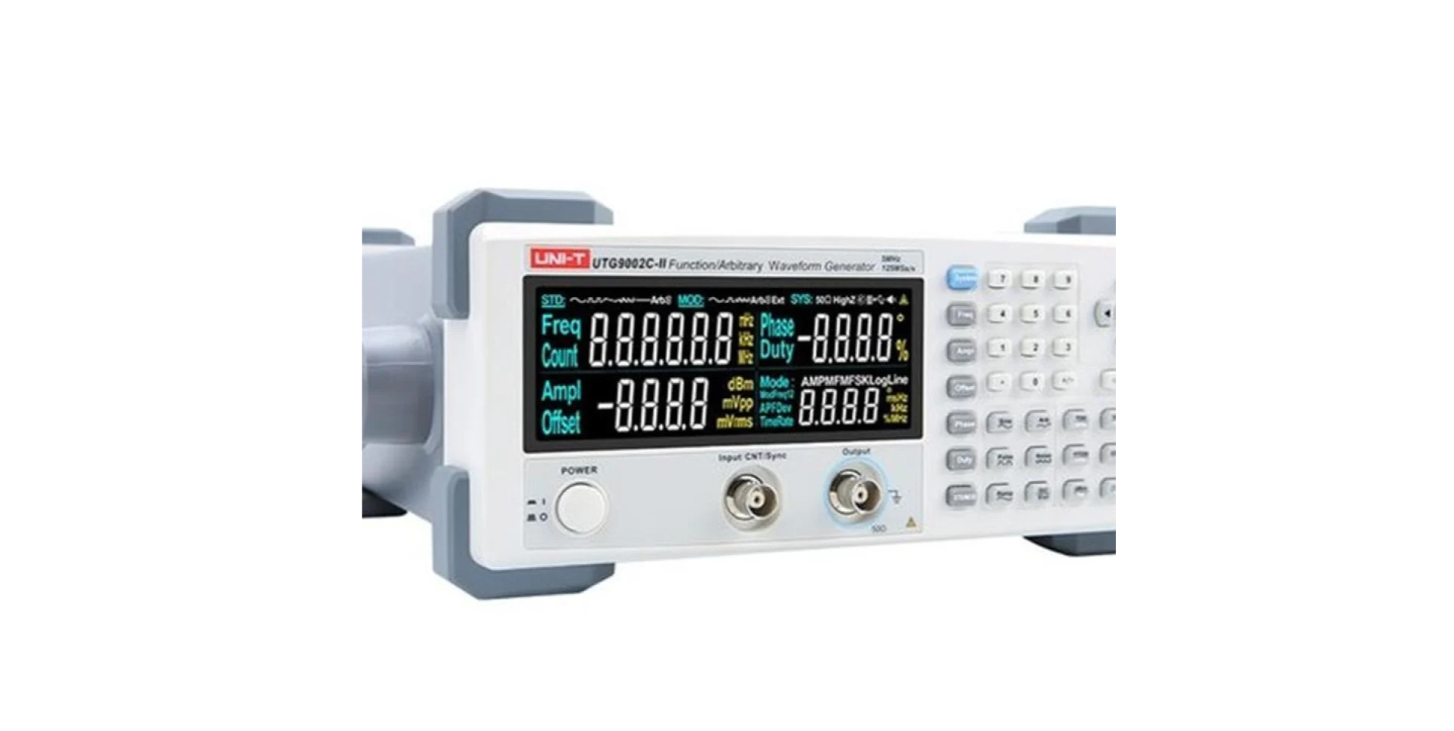

UTG9002C-II UNI T Arbitrary Waveform Function Generator

• Description

The UTG9000C-II Series Function/Arbitrary Waveform Generator uses the direct digital synthesis technology, which can generate the accurate, stable, pure and low-distortion waveform output, and the resolution is as low as 1μHz. It is an economical, high-performance and multifunctional function/arbitrary waveform generator. With the convenient operation interface, excellent technical indicators and humanized graphic display, this multi-purpose equipment can meet your learning and testing requirements and improve work efficiency.

Applications: Designing, testing, troubleshooting, and repairing of electronic and electroacoustic devices, such as circuit and equipment testing in cellular and wireless systems, broadcasting, television and radio systems; semiconductor component testing etc.

Features:

1. Output waveforms: Sine, square, ramp, pulse, noise, DC, arbitrary2. Output frequency range: Sine/square, 2MHz 3. High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz 4. EBTN LCD screen

Technical specifications:

Specifications
Model	UTG9002C-II
Channel	1
Bandwidth	2MHz
Sampling rate	125MS/s
Vertical resolution	14 bits
Waveforms	Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
Sweep modes	Logarithmic, linear
Frequency Characteristics
Sine	1μHz~2MHz
Square	1μHz~2MHz
Ramp	1μHz~200kHz
Pulse	1μHz~2MHz
Arbitrary	1μHz~1MHz
Resolution	1μHz
Accuracy	Within 90 days ± 50ppm
Within 1 year ± 100ppm
18℃~28℃
Output Characteristics
Impedance	50Ω/High Z
Amplitude range	1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z)
DC offset range	-5Vpp~5Vpp (50Ω) (AC+DC); -10Vpp~10Vpp (high Z) (AC+DC)
Amplitude resolution	1mV
General Characteristics
Power	100~240VAC, 50Hz/60Hz
Display	EBTN LCD
Product color	White and grey
Product net weight	2.8kg
Product size	265mm x 110mm x 320mm
Standard accessories	USB interface cable, power cord, BNC cable with alligator clips
Standard individual packing	Carton box
