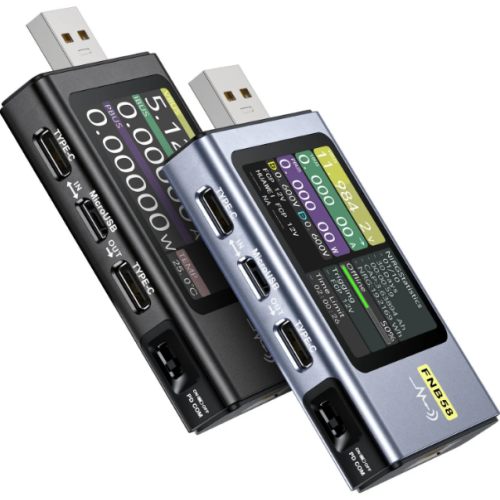

FR FNB58 BT USB Tester

Description: The FNB58 BT is the Bluetooth-enabled variant of the FNIRSI FNB58 USB tester. It is a multifunctional USB voltmeter/ammeter/power meter with fast charge protocol detection & triggering, and adds wireless (Bluetooth Low Energy) connectivity so that measurement data (voltage, current, power, etc.) can be monitored via a smartphone or app in real time. It has a 2.0-inch full-color TFT LCD display, supports USB-A, Micro-USB, and Type-C interfaces, and includes features like waveform/ripple analysis, cable resistance measurement, E-Marker chip reading, D+/D– line voltage reading, and internal temperature monitoring. Key Features: * Bluetooth connectivity for wireless data transmission to smartphone or PC * Measures real-time voltage, current, power (USB-A, USB-C, Micro-USB) * Fast-charge protocol detection & trigger (QC2.0/QC3.0, PD2.0/PD3.0, VOOC/WARP/SuperVOOC, FCP/SCP, AFC) * High-resolution measurement: 10 µV for voltage, 10 µA for current, 10 µW for power * Ripple/waveform analysis, D+/D– line voltage measurement * Cable resistance measurement & reading E-Marker chip information on USB-C cables * Energy/capacity logging (up to 10 sets), offline recording, and statistics tracking Customisable settings: brightness, standby time, refresh rate, temperature unit, screen auto-rotation.

• Availability: 47 In Stock
• Model: FR FNB58 BT USB Tester
