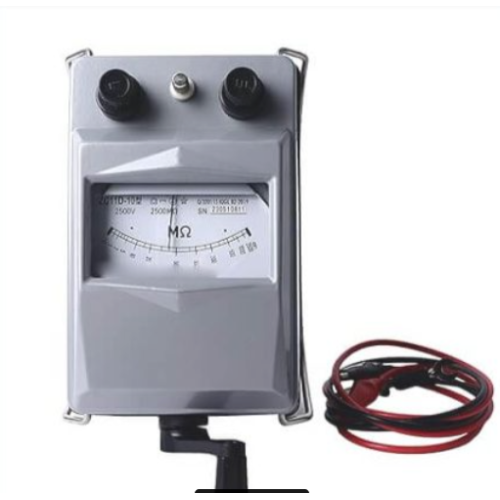

2500VInsulationResistanceTesterMeterZC11D-10
●Description
Insulation Resistance Tester Meter ZC11D-10 is required in use away from magnetic fields placed horizontally. 2500V resistance megger megohmmeter is as insulating determination may be the ends of the analytes are connected respectively on the two terminals of the "Ground" and "Line". At rated speed rotating cranks, the resistance value can be measured. This ZC11D-10 insulation ohmmeter is applicable to measure the insulation resistance of motors, cables, transformers, electronic components, home appliances and other electrical devices, as well as insulation measurement of resistance wire strain gauges.
●Features
●Use of conditions: Temperature -25°C~+40°C, Relative Humidity less than 80%. ●Nominal crank speed: 150r/min. ●Scale arc length: Approximately 80mm. ●Tilt effect: Up to 5° inclination from horizontal. ●External magnetic field resistant. ●Suitable for industrial electrical insulation testing.
●Specifications
Rated Voltage: 2500V
Rated Voltage Tolerance: ±10%
Measuring Range: 0~2500MΩ
Accuracy: Class 20
Reference Resistance: 30MΩ
Relative Humidity: ≤80%RH
Operating Temperature: -25°C~40°C
Working Position: Horizontal
Rated Rocking Speed: 150rpm
Dimensions: 215×135×130mm
Net Weight: Approx. 1.5kg
Gross Weight: ≤11kg
●Operation
●Use the instrument away from magnetic fields. ●Keep the tester in a horizontal position. ●Connect the test object to the "Ground" and "Line" terminals. ●Ensure proper contact before testing. ●Discharge the equipment before and after measurement. ●Do not use during lightning or on live circuits. ●Rotate the handle smoothly at approximately 150rpm. ●Store the instrument in a dry, clean place.
●Package Includes
●1×2500VInsulationResistanceTesterMeterZC11D-10
