VC60B+ Digital Insulation Resistance Tester VICI MegOhm Meter 250V 500V 1000V Anti High Voltage And Short Circuit Input Alarm
VC60B+ ڈیجیٹل انسولیشن ریزسٹنس ٹیسٹر VICI میگوہم میٹر 250V 500V 1000V اینٹی ہائی وولٹیج اور شارٹ سرکٹ ان پٹ الارم
Rs.10,374.00
Rs.14,820.00

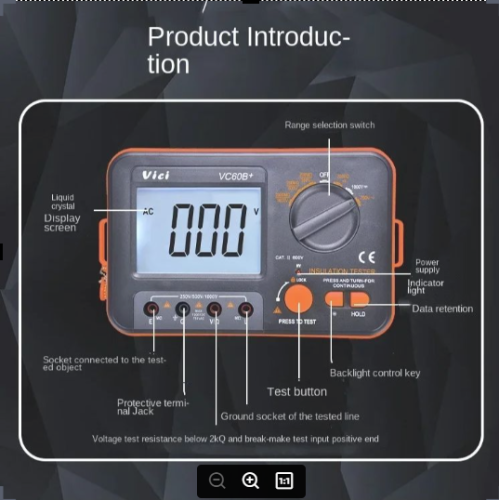

VC60B+ Digital Insulation Resistance Tester (Megger)
The VC60B+ Digital Insulation Resistance Tester is a professional MegOhm meter designed for accurate insulation resistance testing of electrical equipment, transformers, motors, cables, switchgear, and industrial installations. It supports 250V, 500V, and 1000V insulation testing ranges, along with AC/DC voltage measurement and resistance testing. Featuring a large LCD display, anti-high voltage protection, short circuit input alarm, and strong anti-magnetic interference performance, the VC60B+ is an ideal instrument for electrical maintenance, troubleshooting, and safety inspections.
Key Features
- Insulation Resistance Testing at 250V, 500V & 1000V
- Large Easy-to-Read LCD Display
- High Voltage & Short Circuit Input Alarm
- Strong Anti-Magnetic & Anti-Interference Design
- Function Protection Circuit
- AC and DC Voltage Measurement
- Resistance Measurement
- Continuity Buzzer
- Data Hold Function
- LCD Backlight
- Low Battery Indicator
- Manual Range Selection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VICI |
| Model | VC60B+ |
| Product Type | Digital Insulation Resistance Tester (Megger) |
| Certification | CE |
| Insulation Test Voltage | 250V / 500V / 1000V |
| 250V Range | 0–200MΩ ±(4.0%+2) |
| 500V Range | 0–200MΩ ±(4.0%+2) |
| 1000V Range | 0–2GΩ ±(4.0%+2) |
| Resistance Measurement | 2000Ω ±(1.0%+5) |
| DC Voltage | 0–1000V ±(1.0%+5) |
| AC Voltage | 0–750V ±(1.5%+5) |
| Maximum Display | 1999 Counts |
| Continuity Alarm | Less than 30Ω |
| Input Impedance | 1MΩ |
| Sampling Rate | 3 Times / Second |
| Range Selection | Manual |
| Power Supply | 6 × 1.5V AA Batteries or External DC 9V Adapter (Not Included) |
| LCD Size | 75 × 52 mm |
| Meter Dimensions | 176 × 116 × 63 mm |
| Package Size | 205 × 170 × 70 mm |
| Net Weight | 580 g |
| Package Weight | 709 g |
| Color | Dark Gray / Yellow |
Applications
- Transformer Insulation Testing
- Motor Insulation Measurement
- Power Cable Testing
- Switchgear Inspection
- Industrial Electrical Maintenance
- Electrical Equipment Testing
- Power Distribution Systems
- Electrical Safety Inspection
Package Includes
- 1 × VC60B+ Digital Insulation Resistance Tester
- 1 × Test Lead Set
- 1 × User Manual
- AA Batteries and External DC Adapter are not included.
Product Video
```- Availability: 100 In Stock
- Model: VC60B+
- Manufacturer: UNI-T
