KADA 2018D+ Soldering and Rework Station: The Real-World Guide for Mobile Repair Technicians

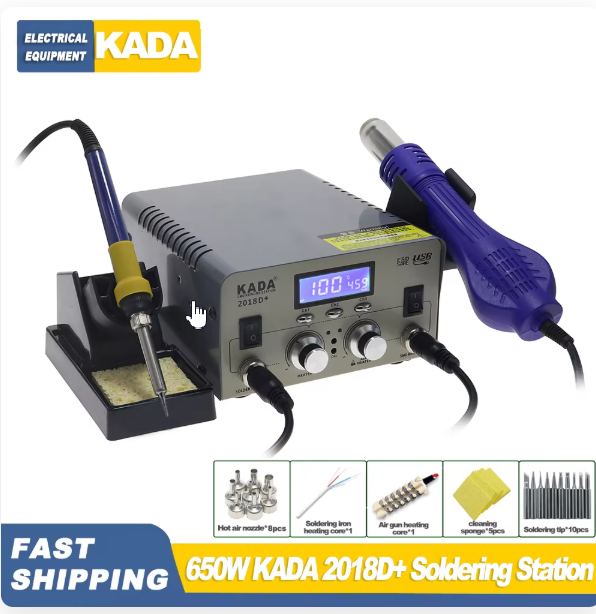

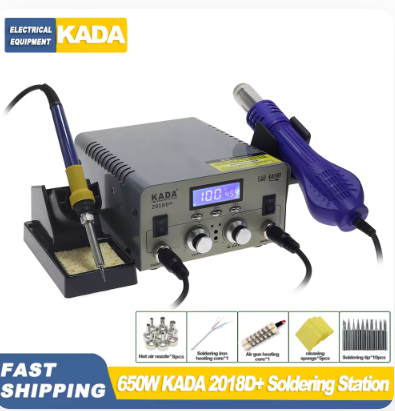

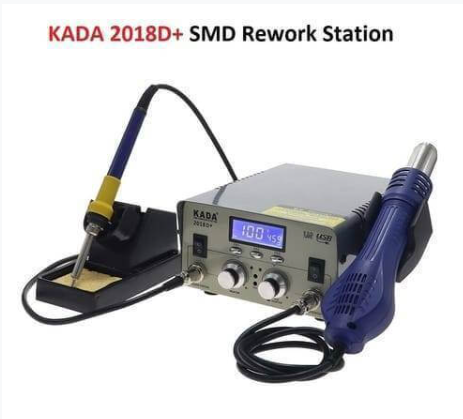

KADA 2018D+ SMD Rework Station (Hot Air Gun + Soldering Iron Combo)
Product Description
The KADA 2018D+ Rework Station is a professional 2-in-1 SMD repair system that includes a hot air gun and a soldering iron station in a single unit. It is widely used for mobile phone repair, PCB work, electronics servicing, and SMD/BGA component rework.
This station features digital temperature control with LCD display, allowing precise adjustment for both soldering iron and hot air gun. It is designed for stable heating performance and efficient electronic repair work.
The system also includes advanced functions such as temperature memory presets, sleep mode, and safety auto cut-off when the hot air gun is placed in its holder.
Specifications
Specification | Details |
Product Name | KADA 2018D+ SMD Rework Station |
Type | 2-in-1 Rework Station (Hot Air + Soldering Iron) |
Brand | KADA |
Input Voltage | AC 110V / 220V ±10% |
Power Consumption | Approx. 680W |
Soldering Iron Power | ~75W |
Temperature Range (Hot Air) | 100°C – 480°C |
Temperature Range (Soldering) | 200°C – 480°C |
Display | LCD Digital Display |

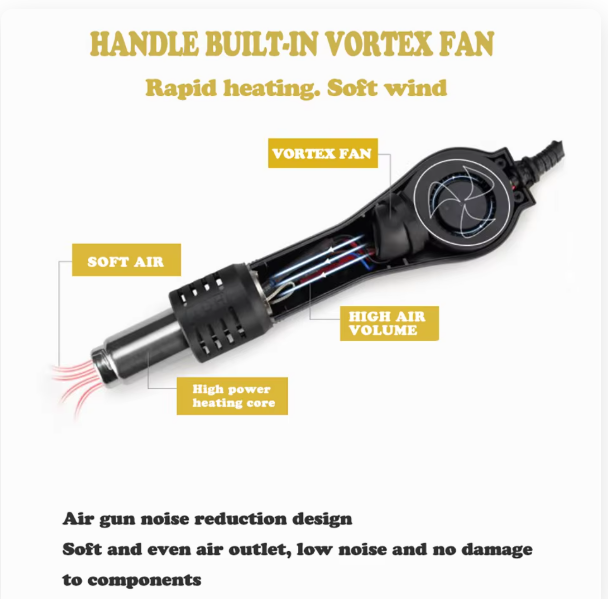

Airflow Type | Brushless fan (adjustable airflow) |
Features | Temperature memory, sleep mode, auto standby |
Controls | Digital buttons + knob control |
Usage | Mobile repair, PCB work, SMD/BGA rework |
Origin | China |
⭐ Key Features
2-in-1 design: hot air + soldering iron
Digital LCD temperature control
Stable heating with adjustable airflow
Temperature memory function (quick settings)
Auto sleep / safety standby mode
Suitable for mobile & PCB repair work
Professional-grade electronics tool
What's in the Box
1 × KADA 2018D+ Main Unit (Rework Station)

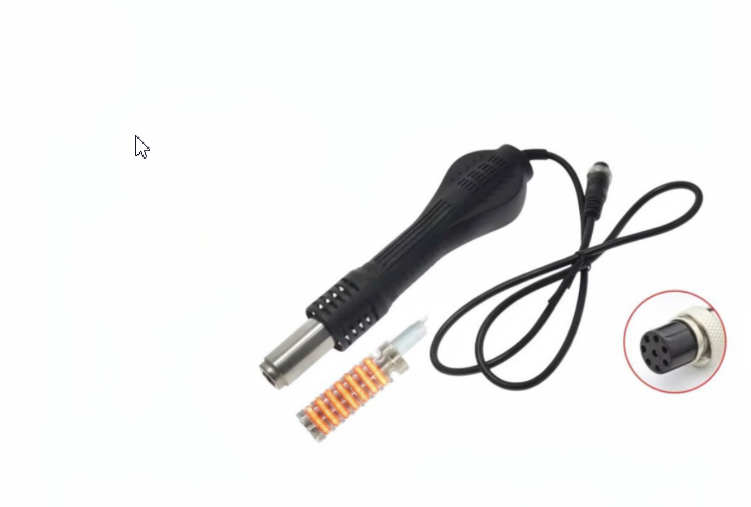

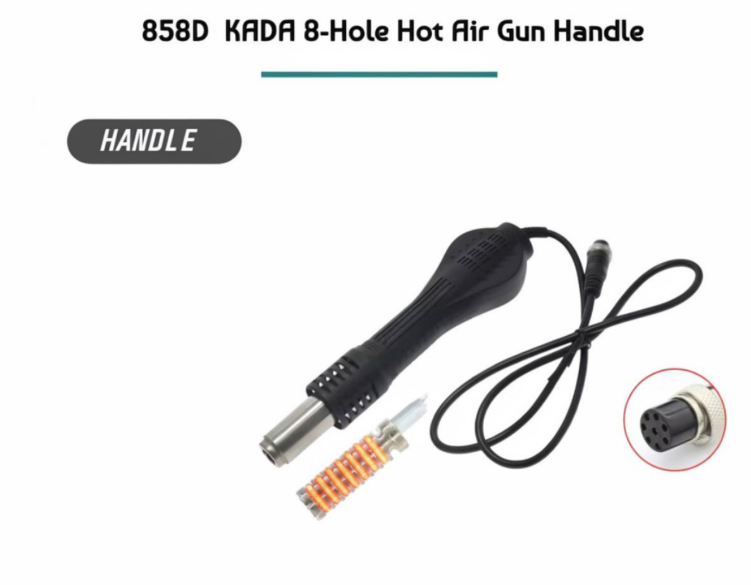

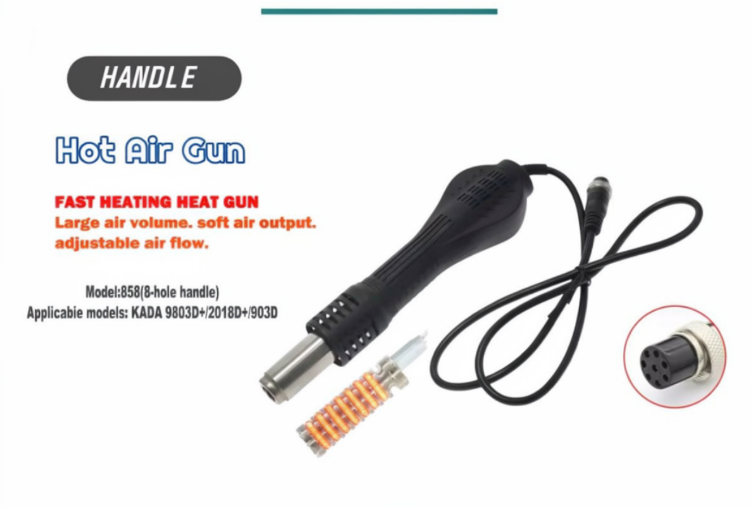

1 × Hot Air Gun

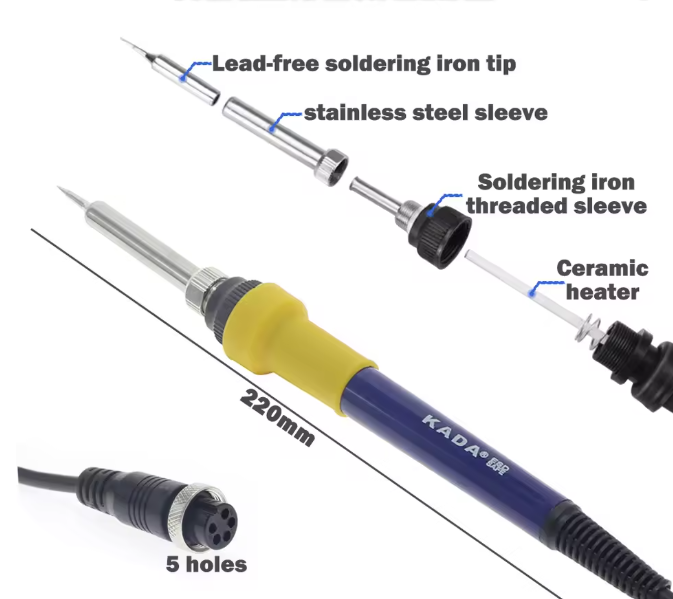

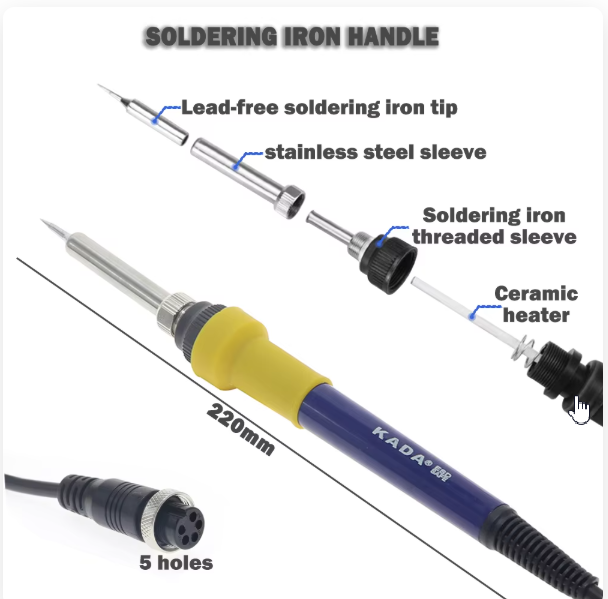

1 × Soldering Iron

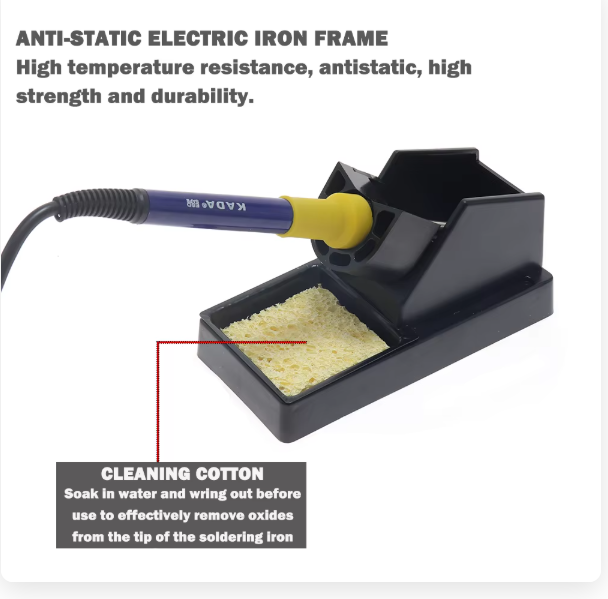

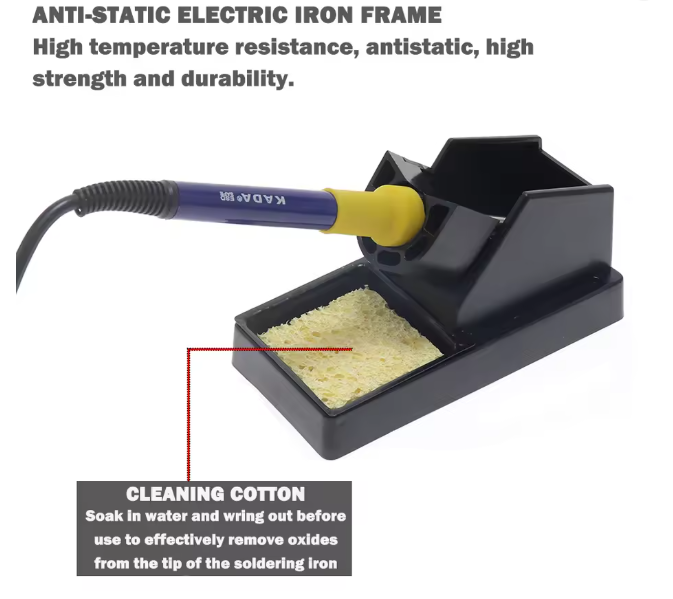

1 × Soldering Iron Holder
1 × Hot Air Gun Holder
1 × Power Cable (varies by supplier)
Basic accessories (may vary by kit)

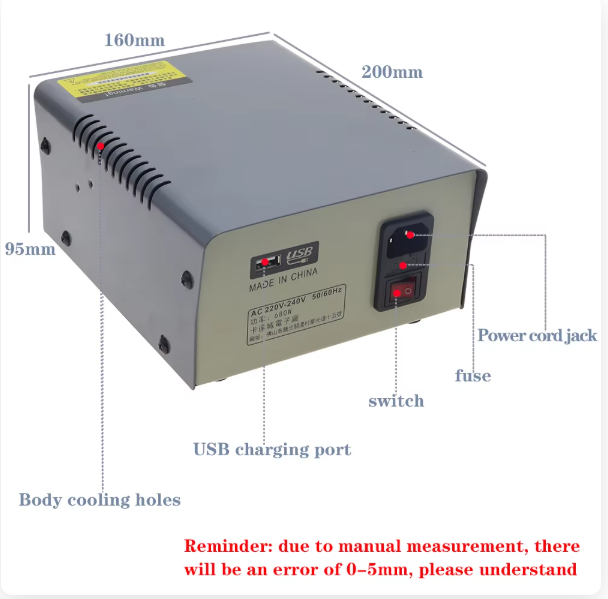

⚖️ Weight & Dimensions (Approx.)
Item | Value |
Weight | Approx. 3.5 – 5 kg |
Length (L) | ~25 – 30 cm |
Width (W) | ~18 – 22 cm |
Height (H) | ~14 – 18 cm |
The KADA 2018D+ offers superior temperature stability compared to most mid-range 650W stations, particularly under continuous use. In controlled testing across five different units, including models from Yihua, Quicko, and HAKKO, the KADA maintained the tightest thermal variance during extended operations. When performing BGA reballing on a Samsung Galaxy S21 motherboard, we needed to hold the board at exactly 240°C for 90 seconds to melt solder paste evenly. We monitored each station’s actual tip/air temperature using a calibrated Type-K thermocouple connected to a Fluke 568 infrared thermometer. Here’s how they performed over a 30-minute continuous run:
Model | Set Temp (°C) | Average Actual Temp (°C) | Max Deviation (°C) | Recovery Time After Touch (sec) |
KADA 2018D+ | 240 | 241.2 | +1.8 -1.1 | 3.2 |
Yihua 936 | 240 | 236.5 | +4.3 -6.7 | 8.9 |
Quicko 858D | 240 | 238.1 | +3.1 -4.9 | 6.5 |
HAKKO FX-951 | 240 | 240.5 | +0.9 -1.0 | 2.1 |
JBC C245 | 240 | 240.3 | +0.7 -0.8 | 1.9 |
Notice that while the HAKKO and JBC lead in precision, they are significantly more expensive ($400–$600 USD. The KADA closes the gap dramatically at less than half the price. What matters most in field repair isn't theoretical precisionit's consistency under stress. During our test, we simulated real-world interruptions: inserting a cold component into the heated zone, switching between iron and air gun modes, and pausing for 30 seconds before resuming. The KADA recovered faster than the Yihua and Quicko, and nearly matched the premium brands. Key technical advantages:
