UNI-T ut501a انسولیشن ریزسٹینس ٹیسٹر 1000 وولٹ میگا میٹر 5gپروف ohm میٹر پروفیشنل ڈیجیٹل ohmمیٹر الیکٹریکل میگا میٹر
UNI-T فاسٹ انسولیشن ریزسٹینس ٹیسٹر ut501e 0.01mپروف ~ 4000mپروف انسولیشن ٹیسٹر ohm میٹر ڈیٹا اسٹوریج pi dar ٹیسٹ ip54
UNI-T ut502a 2500 وولٹ ڈیجیٹل انسولیشن ریزسٹینس میٹر ٹیسٹر اوہم میٹر انتہائی وولٹ میٹر تسلسل ٹیسٹر lcd بیک لائٹ کے ساتھ
UNI-T انسولیشن ریزسٹینس ٹیسٹر ut503pv 1.51m14-4000mپروف ڈیجیٹل میگوہم میٹر اسٹیپنگ وولٹیج کی پیمائش کا فنکشن
UNI-T ut5583 انسولیشن ریزسٹینس ٹیسٹر اعلی درستگی والا چھوٹا ڈیسک ٹاپ آلہ
UNI-T ut516b انسولیشن ریزسٹینس ٹیسٹر/12000 وولٹ ڈیجیٹل میگوہم میٹر/10t 14/usb ڈیٹا ٹرانسفر

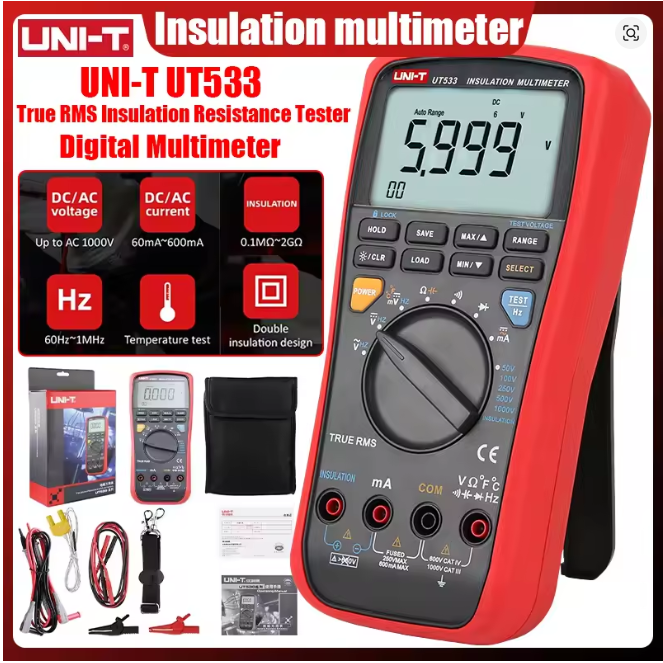

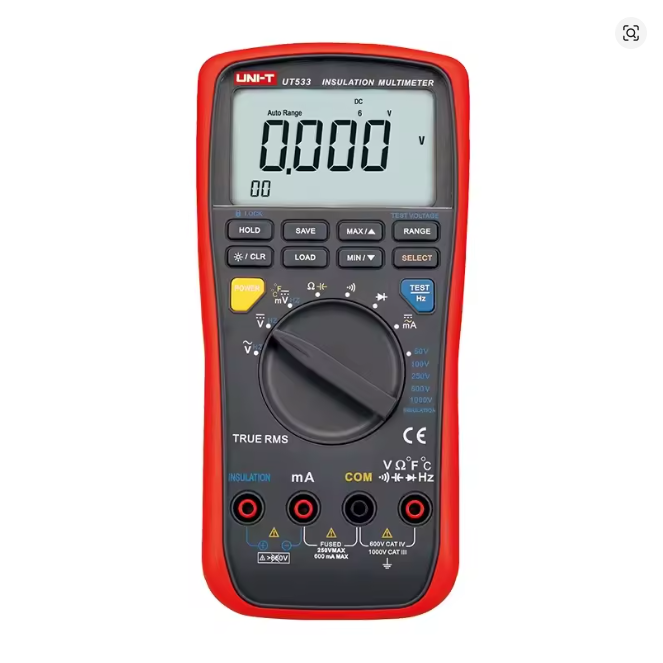

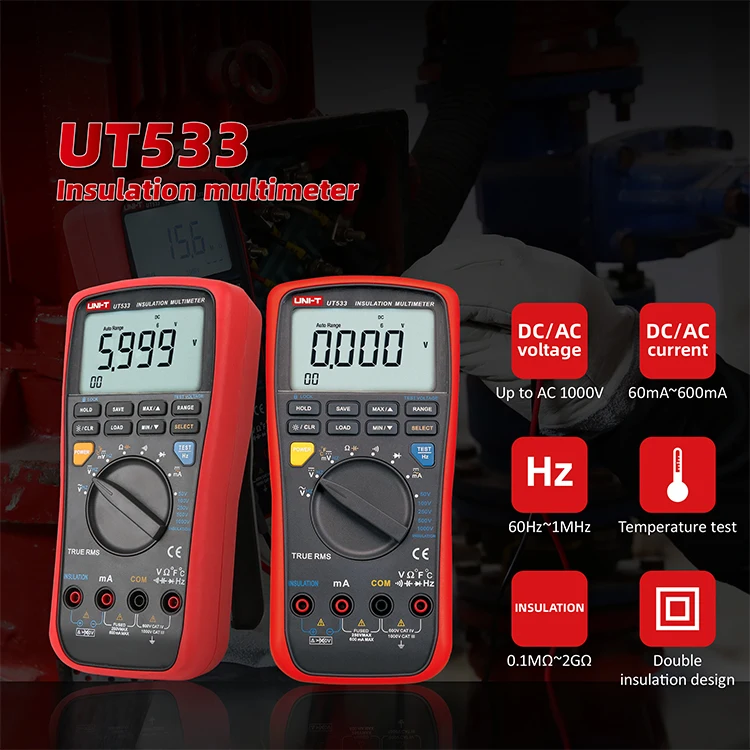

UNI-T ut533 ٹرو rms انسولیشن ریزسٹینس ٹیسٹر ڈیجیٹل ملٹی میٹر آٹو رینج ac dc ohm میگوہم میٹر وولٹ میٹر گنجائش ٹیسٹ 1 فروخت شدہ bymetمیٹ اسٹور (4.9 + فروخت شدہ)
UNI-T UT501A Insulation Resistance Tester 1000V Megohmmeter 5GΩ Ohm Meter Professional Digital Ohmmeter Electrical Megometer (UNI-T, UT501A)
UNI-T UT501A Insulation Resistance Tester
The UNI-T UT501A is a professional digital insulation resistance tester (Megohmmeter) designed for electrical insulation testing up to 5GΩ. It features selectable test voltages of 100V, 250V, 500V, and 1000V, making it suitable for testing motors, transformers, cables, switchgear, electrical installations, and industrial equipment. With automatic discharge protection, backlit LCD, audible and visual alarms, and AC voltage measurement up to 750V, the UT501A is an ideal tool for electricians and maintenance professionals.
Key Features
- Insulation Resistance Measurement up to 5GΩ
- Selectable Test Voltages: 100V / 250V / 500V / 1000V
- AC Voltage Measurement up to 750V
- 2000 Count Digital LCD Display
- Auto Range Function
- Automatic Discharge Protection
- Backlit LCD Display
- High Voltage Warning Indicator
- Audible & Visual Alarm
- Low Battery Indicator
- Overload Protection
- Test Voltage Secondary Display
- 10MΩ Internal Resistance Test
- Portable & Durable Design
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT501A |
| Product Type | Digital Insulation Resistance Tester (Megohmmeter) |
| Display | Digital LCD (2000 Counts) |
| Maximum Display | 1999 |
| Insulation Resistance Range | 0MΩ – 5GΩ |
| Test Voltages | 100V / 250V / 500V / 1000V |
| AC Voltage Range | 30V – 750V |
| Test Current | ≥1mA |
| Short Circuit Current | <2mA |
| Auto Range | Yes |
| Automatic Discharge | Yes |
| LCD Backlight | Yes |
| Light Alarm | Yes |
| Buzzer Alarm | Yes |
| High Voltage Indicator | Yes |
| Overload Protection | Yes |
| Low Battery Indicator | Yes |
| Test Voltage Display | Yes |
| 10MΩ Internal Resistance Test | Yes |
| Operating Temperature | -10°C to 40°C |
| Power Supply | 6 × 1.5V AA (LR6) Batteries |
| Product Dimensions | 150 × 100 × 71 mm |
| Weight | Approx. 500 g |
| Certifications | CE, FCC, RoHS |
| Origin | Mainland China |
Main Functions
- Insulation Resistance Testing up to 5GΩ
- 100V / 250V / 500V / 1000V Test Voltages
- AC Voltage Measurement (30V–750V)
- Auto Range Measurement
- Automatic Discharge Protection
- Backlit LCD Screen
- Audible & Visual Alarm System
- High Voltage Detection
- Low Battery Warning
- Overload Protection
- 10MΩ Internal Resistance Verification
Applications
- Electrical Installation Testing
- Motor Insulation Testing
- Transformer Maintenance
- Cable Insulation Inspection
- Industrial Equipment Maintenance
- Power Distribution Systems
- Electrical Safety Inspection
- Maintenance Engineering
What's in the Box
- UNI-T UT501A Insulation Resistance Tester
- Test Leads
- Alligator Clips
- 6 × AA Batteries
- Carrying Bag
- User Manual
- Retail Gift Box
UNI-T ut501a انسولیشن ریزسٹینس ٹیسٹر 1000 وولٹ میگا میٹر 5gپروف ohm میٹر پروفیشنل ڈیجیٹل ohmمیٹر الیکٹریکل میگا میٹر
UNI-T Fast Insulation Resistance Tester UT501E 0.01MΩ~4000MΩ Insulation Tester Ohm Meter Data Storage PI DAR Test IP54 (UNI-T, UT501E)
UNI-T UT501E Fast Insulation Resistance Tester
The UNI-T UT501E is a professional fast insulation resistance tester designed for electricians, maintenance engineers, and industrial applications. It measures insulation resistance up to 4GΩ with five selectable test voltages (100V, 125V, 250V, 500V, and 1000V). Featuring 2.5× faster testing, PI & DAR analysis, data storage, remote testing, PC software support, and IP54 protection, the UT501E is an ideal solution for testing motors, transformers, cables, switchgear, and electrical installations.
Key Features
- Insulation Resistance Measurement up to 4GΩ
- Five Test Voltages: 100V / 125V / 250V / 500V / 1000V
- 2.5× Faster Insulation Measurement
- PI (Polarization Index) Test
- DAR (Dielectric Absorption Ratio) Test
- Comparison Test Function
- 99 Groups Data Storage
- PC Software Analysis (USB)
- Remote Control Test Lead
- Lock Function to Prevent False Triggering
- Automatic Discharge Protection
- Audible & Visual Alarm
- Backlit LCD Display
- Auto Power Off
- Low Battery Indication
- Rechargeable Lithium Battery
- IP54 Dust & Water Protection
- CAT III 600V Safety Rating
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT501E |
| Product Type | Fast Digital Insulation Resistance Tester |
| Insulation Resistance Range | 0.01MΩ – 4000MΩ (4GΩ) |
| Selectable Test Voltages | 100V / 125V / 250V / 500V / 1000V |
| Low Resistance Measurement | 0.00Ω – 400Ω |
| AC Voltage Measurement | 30V – 600V |
| DC Voltage Measurement | 30V – 600V |
| Rated Test Current | 1.0mA |
| Short Circuit Current | <2.0mA |
| Fast Measurement | 2.5× Faster |
| PI Test | Yes |
| DAR Test | Yes |
| Comparison Function | Yes |
| Auto Discharge | Yes |
| High Voltage Alarm | Audible & Visual |
| Manual Range | Insulation Measurement |
| Auto Range | Voltage Measurement |
| Data Storage | 99 Groups |
| PC Software | Supported (USB Connection) |
| Remote Testing | Supported |
| Security Lock | Yes |
| Analog Bar Graph | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Protection Rating | IP54 |
| Safety Category | CAT III 600V |
| Power Supply | 11.1V 2600mAh Rechargeable Lithium Battery |
| Dimensions (L × W × H) | 161 × 116 × 68 mm |
| Product Color | Black & Red |
| Battery Included | Yes |
| Origin | Mainland China |
Main Functions
- Fast Insulation Resistance Testing
- Motor Insulation Testing
- Transformer Insulation Inspection
- Cable & Wiring Testing
- Electrical Equipment Maintenance
- PI & DAR Diagnostic Testing
- Comparison Testing
- Automatic Discharge Protection
- Remote Controlled Measurement
- Data Recording & PC Report Analysis
Applications
- Electrical Installation Testing
- Industrial Maintenance
- Power Distribution Systems
- Transformer Inspection
- Motor Maintenance
- Cable Insulation Testing
- Factory Equipment Inspection
- Electrical Troubleshooting
What's in the Box
- UNI-T UT501E Fast Insulation Resistance Tester
- Rechargeable Lithium Battery
- Test Leads
- Alligator Clips
- User Manual
- Carrying Case
- Retail Packaging
UNI-T فاسٹ انسولیشن ریزسٹینس ٹیسٹر ut501e 0.01mپروف ~ 4000mپروف انسولیشن ٹیسٹر ohm میٹر ڈیٹا اسٹوریج pi dar ٹیسٹ ip54
UNI-T UT502A 2500V Digital Insulation Resistance Meter Tester ohmmeter Highly Voltmeter Continuity Tester With LCD Backlight (UNI-T, UT502A)
UNI-T UT502A 2500V Digital Insulation Resistance Tester
The UNI-T UT502A is a professional digital insulation resistance tester (Megohmmeter) designed for high-voltage insulation testing up to 2500V. It measures insulation resistance up to 20GΩ and features PI & DAR testing, low resistance measurement, AC voltage testing, automatic discharge, LCD backlight, audible alarms, and overload protection. It is an ideal instrument for electricians, industrial maintenance engineers, power distribution systems, cable testing, transformer maintenance, and motor insulation inspection.
Key Features
- High Voltage Insulation Testing up to 2500V
- Insulation Resistance Measurement up to 20GΩ
- Selectable Test Voltages: 500V / 1000V / 2500V
- PI (Polarization Index) Test
- DAR (Dielectric Absorption Ratio) Test
- Low Resistance Measurement
- AC Voltage Measurement up to 600V
- 2000 Count Digital LCD Display
- LCD Backlight
- Automatic Range Selection
- Automatic Discharge Function
- High Voltage Warning Indicator
- Audible & Visual Alarm
- Overload Protection
- Low Battery Indicator
- Test Voltage Secondary Display
- 10MΩ Internal Resistance Test
- IEC 61557 Compliant
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT502A |
| Product Type | Digital Insulation Resistance Tester (Megohmmeter) |
| Display | Digital LCD (2000 Counts) |
| Insulation Resistance Range | 0MΩ – 20GΩ |
| Selectable Test Voltages | 500V / 1000V / 2500V |
| Low Resistance Range | 0.01Ω – 200Ω |
| AC Voltage Measurement | 30V – 600V |
| Rated Test Current | 1mA |
| Short Circuit Current | <2mA |
| Accuracy Class | 3% |
| DAR Function | Yes (60s/15s & 60s/30s) |
| PI Function | Yes |
| Auto Range | Yes |
| Auto Discharge | Yes |
| LCD Backlight | Yes |
| Light Alarm | Yes |
| Buzzer Alarm | Yes |
| High Voltage Indicator | Yes |
| Overload Protection | Yes |
| Low Battery Indicator | Yes |
| Test Voltage Secondary Display | Yes |
| 10MΩ Internal Resistance Test | Yes |
| Operating Temperature | 0°C – 50°C |
| Power Supply | 6 × 1.5V AA (LR6) Batteries |
| Display Size | 70.6 × 34 mm |
| Dimensions (L × W × H) | 150 × 100 × 71 mm |
| Weight | Approx. 500 g |
| Product Color | Red & Grey |
| Certifications | CE, FCC, RoHS, IEC 61557 |
| Origin | Mainland China |
Main Functions
- 2500V High Voltage Insulation Testing
- Insulation Resistance Measurement up to 20GΩ
- PI & DAR Diagnostic Testing
- Low Resistance Measurement
- AC Voltage Measurement
- Automatic Discharge Protection
- High Voltage Detection
- Backlit LCD Display
- Audible & Visual Safety Alarm
- Internal Resistance Verification
Applications
- Electrical Installation Testing
- Power Distribution Systems
- Motor Insulation Testing
- Transformer Maintenance
- Cable Insulation Inspection
- Industrial Equipment Maintenance
- Electrical Safety Inspection
- High Voltage Equipment Testing
What's in the Box
- UNI-T UT502A Digital Insulation Resistance Tester
- Test Leads
- Alligator Clips
- Test Probes
- 6 × AA Batteries
- Carrying Bag
- User Manual
- Retail Gift Box
UNI-T ut502a 2500 وولٹ ڈیجیٹل انسولیشن ریزسٹینس میٹر ٹیسٹر اوہم میٹر انتہائی وولٹ میٹر تسلسل ٹیسٹر lcd بیک لائٹ کے ساتھ
UNI-T Insulation Resistance Tester UT503PV 1.51MΩ-4000MΩ Digital Megohm Meter Stepping Voltage Measurement Compare FunctioN (UNI-T, UT503PV)
UNI-T UT503PV PV Insulation Resistance Tester
The UNI-T UT503PV is a professional photovoltaic (PV) insulation resistance tester designed for testing solar power systems, electrical installations, cables, motors, and industrial equipment. It offers live PV insulation testing, insulation resistance measurement up to 4000MΩ, and voltage measurement up to 1000V DC / 600V AC. With Bluetooth connectivity, USB data transfer, 1000-record memory, stepping voltage testing, compare function, and automatic discharge protection, the UT503PV is an ideal instrument for solar installers, maintenance engineers, and electrical professionals.
Key Features
- Photovoltaic (PV) Live Insulation Resistance Testing
- Insulation Resistance Measurement up to 4000MΩ
- 1000V DC High Output Test Voltage
- 1000V DC & 600V AC Voltage Measurement
- Stepping Voltage Test Function
- Continuous Measurement Mode
- Time Measurement Function
- Compare Function (IR)
- Automatic Discharge Protection
- High Voltage Audible & Visual Alarm
- 1000 Data Storage Records
- Bluetooth App Connectivity
- USB Data Communication
- Auto / Manual LCD Backlight
- Portable Handheld Design
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT503PV |
| Product Type | PV Insulation Resistance Tester |
| Insulation Resistance Range | 1.51MΩ – 4000MΩ |
| PV Insulation Test | Supported (Live PV Testing) |
| Output Test Voltage | 1000V DC |
| DC Voltage Measurement | Up to 1000V DC |
| AC Voltage Measurement | Up to 600V AC |
| Stepping Voltage Function | Yes |
| Continuous Measurement | Yes |
| Time Measurement | Yes |
| Compare Function | Yes (IR Comparison) |
| Auto Discharge | Yes |
| High Voltage Alarm | Yes |
| Data Storage | 1000 Measurement Records |
| Communication | Bluetooth App + USB Cable |
| Display | Digital LCD with Auto/Manual Backlight |
| Backlight | Auto / Manual |
| Certification | CE |
| Application | PV & Electrical Insulation Testing |
| Origin | Mainland China |
Main Functions
- Live Photovoltaic (PV) Insulation Testing
- 1000V DC High Voltage Output
- Insulation Resistance Measurement up to 4000MΩ
- 1000V DC / 600V AC Voltage Measurement
- Stepping Voltage Testing
- Continuous & Timed Measurement
- IR Compare Function
- Automatic Discharge Protection
- Bluetooth & USB Data Transfer
- 1000 Internal Data Storage Records
Applications
- Solar PV System Installation
- Photovoltaic Power Plant Maintenance
- Solar Panel Inspection
- Electrical Installation Testing
- Cable Insulation Testing
- Motor & Transformer Maintenance
- Industrial Electrical Inspection
- Preventive Maintenance & Troubleshooting
What's in the Box
- UNI-T UT503PV PV Insulation Resistance Tester
- Test Leads
- Alligator Clips
- USB Data Cable
- User Manual
- Carrying Case
- Retail Packaging
\
UNI-T انسولیشن ریزسٹینس ٹیسٹر ut503pv 1.51m14-4000mپروف ڈیجیٹل میگوہم میٹر اسٹیپنگ وولٹیج کی پیمائش کا فنکشن
UNI-T UT5583 Insulation Resistance Tester High Precision Miniature Desktop Instrument (UNI-T, UT5583)
UNI-T UT5583 High Precision Insulation Resistance Tester
The UNI-T UT5583 is a high-performance desktop insulation resistance tester designed for laboratories, production lines, quality control, and industrial electrical testing. It measures insulation resistance up to 10TΩ with programmable DC test voltages from 1V to 1000V. Featuring a large 4.3-inch color LCD, leakage current measurement, PASS/FAIL comparator, calibration function, and high measurement accuracy, the UT5583 is an ideal solution for professional insulation testing.
Key Features
- High Precision Desktop Insulation Resistance Tester
- Insulation Resistance Measurement up to 10TΩ
- Programmable DC Test Voltage (1V–1000V)
- Leakage Current Measurement
- 4.3-inch True Color LCD Display
- PASS / FAIL Comparator Function
- UFAIL / PASS / LFAIL Judgment
- Full Digital Keypad
- Real-Time Operating System
- High-Speed Real-Time Detection
- Full Range Open Circuit Calibration
- Industrial Bench-Top Design
- Suitable for Continuous Production Testing
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT5583 |
| Product Type | Desktop Insulation Resistance Tester |
| Insulation Resistance Range | 10kΩ – 10TΩ |
| Test Voltage | 1V – 1000V DC (Programmable) |
| Measurement Parameters | Insulation Resistance & Leakage Current |
| Accuracy | <1MΩ: ±5% ≥1MΩ: ±1% ≥1GΩ: ±3% |
| Display | 4.3-inch True Color LCD |
| Display Type | Digital |
| Comparator Function | UFAIL / PASS / LFAIL |
| Data Storage | 1 Comparator Record |
| Calibration | Full Range Open Circuit Reset |
| Operating Temperature | 0°C – 40°C |
| Power Supply | AC 110V / 220V, 47–63Hz |
| Device Dimensions | 215 × 88 × 382.3 mm |
| Package Dimensions | 515 × 365 × 220 mm |
| Package Weight | 4.5 kg |
| Place of Origin | Jiangsu, China |
Main Functions
- High Voltage Insulation Resistance Testing
- Leakage Current Measurement
- Programmable Test Voltage (1V–1000V)
- Comparator PASS / FAIL Testing
- Real-Time Measurement
- Automatic Calibration
- Laboratory & Production Line Testing
- Quality Control Inspection
Applications
- Electronic Component Testing
- Electrical Equipment Inspection
- Wire & Cable Manufacturing
- Transformer Testing
- Motor Insulation Testing
- Dielectric Material Testing
- Industrial Production Lines
- Research Laboratories
- Quality Assurance & Quality Control
What's in the Box
- UNI-T UT5583 Insulation Resistance Tester
- Power Cable
- Test Leads
- User Manual
- Calibration Certificate (If Included)
- Retail Packaging
UNI-T ut5583 انسولیشن ریزسٹینس ٹیسٹر اعلی درستگی والا چھوٹا ڈیسک ٹاپ آلہ
UNI-T UT516B Insulation Resistance Tester/12000V Digital Megohmmeter/10TΩ/USB data transfer (UNI-T UT516B)
UNI-T UT516B Insulation Resistance Tester/12000V Digital Megohmmeter/10TΩ/USB data transfer
Specification | Details |
Model Number | UT516B |
Battery Included | No |
High-concerned Chemical | None |
Dimensions | 510 × 320 × 420 mm |
Testing Voltage | 12 kV |
Measuring Range | 10 TΩ |
Display Type | Digital Only |
DIY Supplies | Electrical |
Brand Name | UNI-T |
Origin | Mainland China |
Certification | None |
Product sellpoints
LCD Backlight:Clearly view test results in any lighting condition with the LCD backlight.
Memory Storage:Store test results in the tester memory for easy access and review.
Ut516b|Uni T Ut516b|High Voltage Range:Test up to 12kV with 6 selectable ranges for comprehensive insulation resistance measurement.
USB Data Transfer:Effortlessly transfer test data to a PC via USB, ensuring accurate records for analysis.
Comparative Measurement:Compare measurements to previous tests, aiding in maintenance and troubleshooting.
Description
report
UNI-T UT516B 12kV High Voltage Insulation Resistance Tester Digital Megohmmeter USB Communication 10TΩ
The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V.
Fine adjustment of voltage with 10% step at each range (except 12000V) is available.
Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time.
The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.
Features:
1. AC/DC voltage
2. USB data transfer
3. Low battery indication
4. Data storage
5. LCD backlight
6. Polarization Index
7. Over-range alarm
8. 9999 Max display
9. Comparative measurement
10. Measurement time selection
Take notice: Battery was not included for air shipping, please prepare it by yourself.
Specifications of UT516B Insulation Resistance Tester
High Voltage Range: 500V to 12000V
Accuracy: ±(5%+3) at 500V to 2500V, ±(8%+3) at 5000V to 10000V, ±(10%+3) at 12000V
Memory: 9999 data sets
USB Communication: Yes
Battery Indicator: Yes
Polarization Index: Yes
|Uni T Ut516b|
**Advanced Measurement Capabilities**
The UNI-T UT516B High Voltage Insulation Resistance Tester is an essential tool for electrical professionals and DIY enthusiasts alike. With a versatile range of 500V to 12000V, this digital megohmmeter is equipped to handle a wide array of insulation resistance testing scenarios. Its high precision, with an accuracy of ±(5%+3) at 500V to 2500V, ±(8%+3) at 5000V to 10000V, and ±(10%+3) at 12000V, ensures reliable results for even the most critical measurements.
**Seamless Data Management and Transfer**
The UT516B's USB communication capability allows for quick and easy data transfer to a PC, enabling users to store and analyze test results with ease. The dedicated USB cable simplifies the process, making it a breeze to share data with colleagues or clients. Additionally, the tester's memory can store up to 9999 data sets, providing ample storage for extensive testing projects.
**User-Friendly Design and Functionality**
The UT516B is not only a powerful tool but also a user-friendly device. Its LCD backlight ensures clear visibility in low-light conditions, while the polarization index feature offers additional insights into the test results. The tester's design is compact and lightweight, making it suitable for use in a variety of environments. Moreover, the low battery indicator alerts users when it's time to replace the batteries, ensuring that the tester is always ready for use.
**Versatile Application and Safety**
The UNI-T UT516B High Voltage Insulation Resistance Tester is designed for use in electrical maintenance and power supply circuit testing. Its robust construction and safety features make it an essential tool for professionals working in the electrical field. Whether it's for routine maintenance or critical repair, the UT516B is the go-to device for reliable, precise insulation resistance testing.
UNI-T ut516b انسولیشن ریزسٹینس ٹیسٹر/12000 وولٹ ڈیجیٹل میگوہم میٹر/10t 14/usb ڈیٹا ٹرانسفر
UNI-T UT533 True RMS Insulation Resistance Tester Digital Multimeter Auto Range AC DC ohm Megohmmeter Voltmeter Capacitance Test 1 sold byMetalMate Store (4.9 | 1,000+ sold ) (UNI-T UT533)

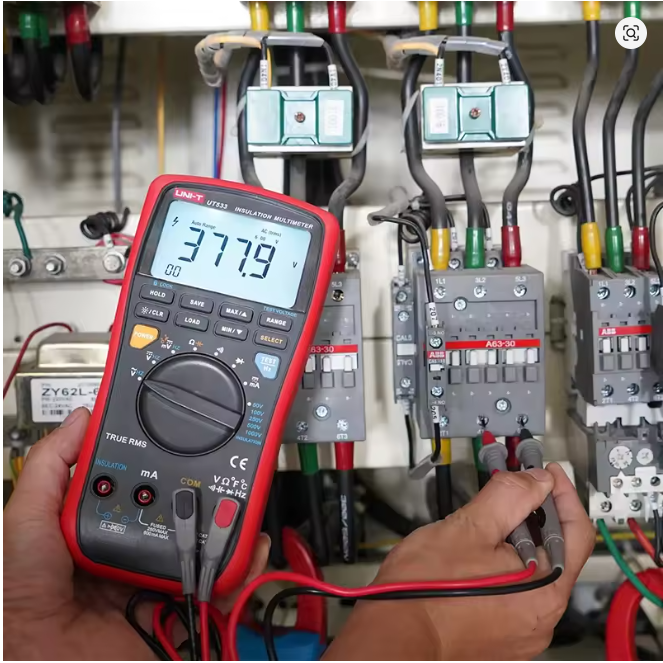

UNI-T UT533 True RMS Insulation Resistance Tester Digital Multimeter Auto Range AC DC ohm Megohmmeter Voltmeter Capacitance Test
Specification | Details |
Model Number | UT533 |
Brand Name | UNI-T |
Battery Included | No |
High-concerned Chemical | None |
Operating Mode | Auto Range |
Operating Temperature | 0 – 40 ℃ |
DIY Supplies | Electrical |
Certification | CE |
Origin | Mainland China |
DC Voltage | 1000V |
AC Voltage | 1000V |
Display Type | Digital Display |
Description
report

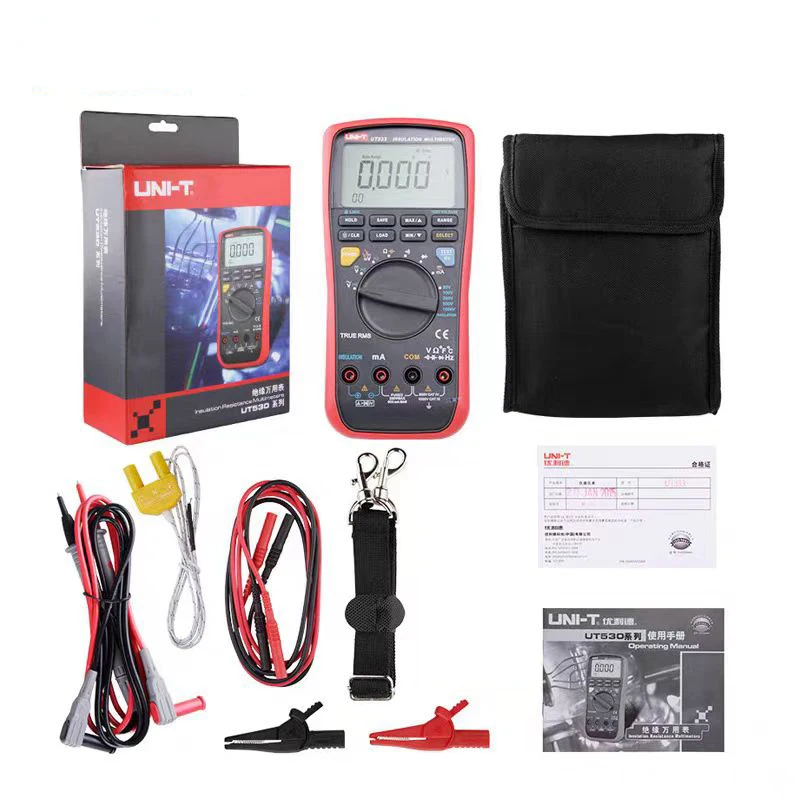

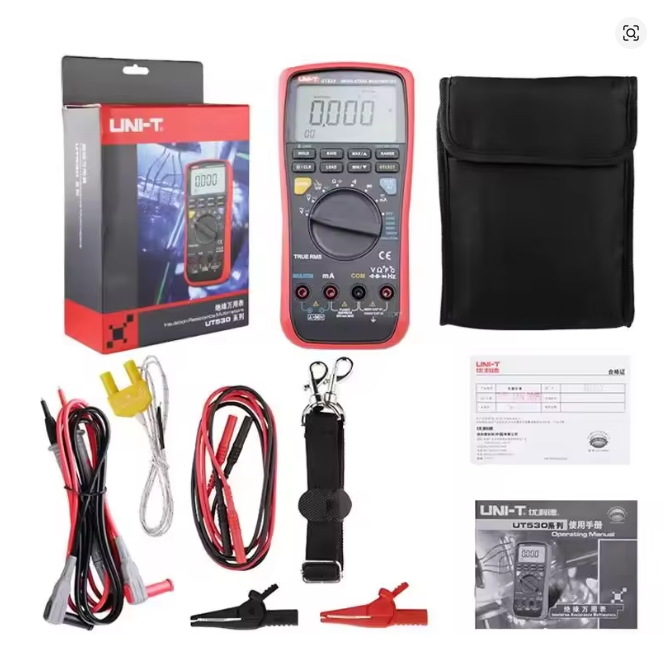

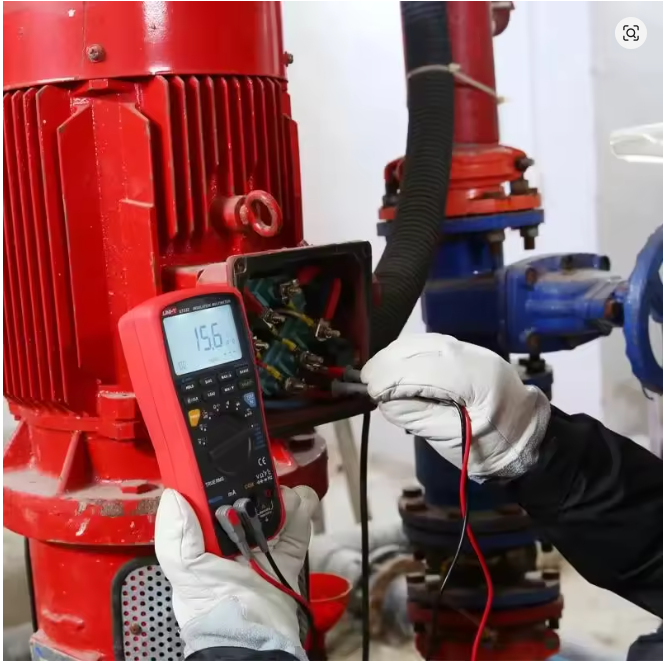

Uni-T UT533 digital multimeter insulation resistance meter 2 Gigaohm 1000V 2 in 1 for electric cable motor transformer
Features of UT533 Insulation Multimeter 1. AC/DC voltage measurement 2. AC/DC current measurement 3. Insulation resistance measurement 4. Resistance & Capacity test 5. Frequency & Temperature test 6. 1000V output voltage 7. Double insulation design

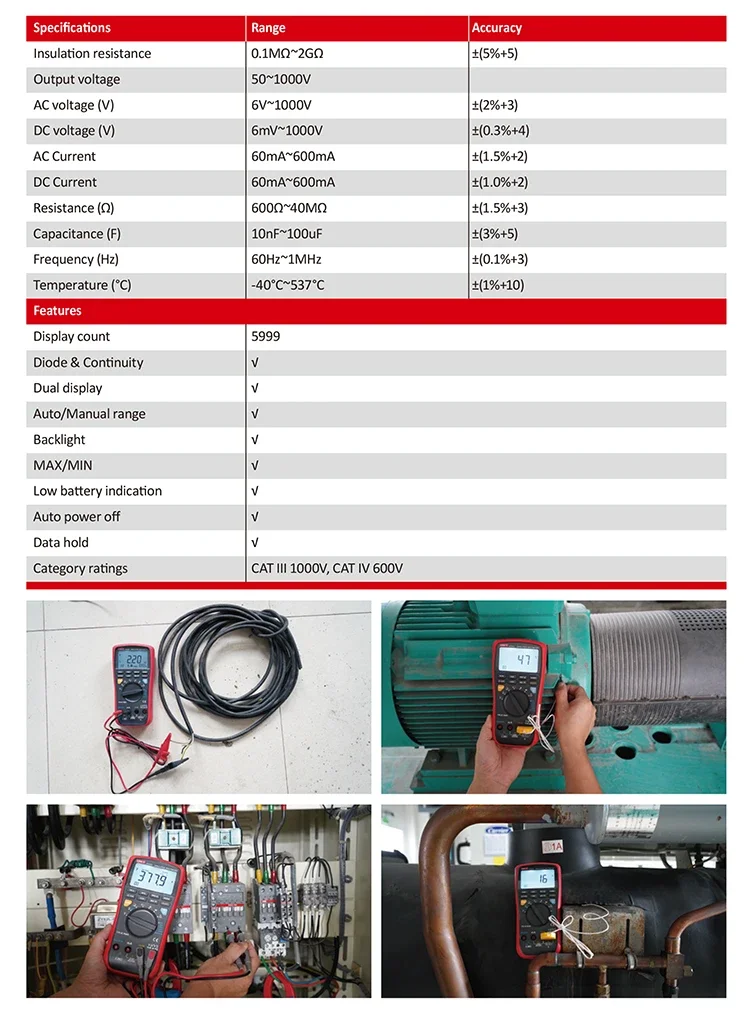

Specifications | Range | UT533 |
Insulation resistance | 0.1MΩ~2GΩ | ±(5%+5) |
Output voltage | 50~1000V | – |
AC voltage (V) | 6V~1000V | ±(2%+3) |
DC voltage (V) | 6mV~1000V | ±(0.3%+4) |
AC Current | 60mA ~600mA | ±(1.5%+2) |
DC Current | 60mA ~600mA | ±(1.0%+2) |
Resistance (Ω) | 600Ω~40MΩ | ±(1.5%+3) |
Capacitance (F) | 10nF~100uF | ±(3%+5) |
Frequency (Hz) | 60Hz~1MHz | ±(0.1%+3) |
Temperature(鈩�) | -40鈩� ~ 537鈩� | ±(1%+10) |
UNI-T ut533 ٹرو rms انسولیشن ریزسٹینس ٹیسٹر ڈیجیٹل ملٹی میٹر آٹو رینج ac dc ohm میگوہم میٹر وولٹ میٹر گنجائش ٹیسٹ 1 فروخت شدہ bymetمیٹ اسٹور (4.9 + فروخت شدہ)
- 1
