Product Details of UNI-T UTi712S Thermal Camera, 120x90 IR, 8H Battery & 6 Color Modes, IP54/2m Drop, Affordable for HVAC/Auto/Electric inspection
Product sellpoints
Versatile Temperature Range:Measure temperatures from -20℃ to 400℃, making it suitable for a broad range of industrial and automotive applications.
Advanced Color Modes:Choose from 6 color palettes, including White hot, Black hot, and Rainbow, for better visualization of temperature variations.
Extended Battery Life:Enjoy up to 8 hours of uninterrupted use with the fixed Li-ion battery, perfect for long inspection sessions.
Durable & Waterproof:With an IP54 rating and 2m drop-proof design, this thermal imager withstands rugged field conditions.
Uni T Uti712s|Uni T Uti712s Thermal Imager|High Resolution Imaging:Capture finer details with the 120x90 IR resolution, ensuring precise temperature readings for accurate diagnostics.
UNI-T UTI712S Handheld Thermal Imager – Specifications
Specification | Details |
Brand | UNI-T |
Model | UTI712S |
Product Type | Handheld Thermal Imaging Camera |
Semi-finished Product | No |
Battery Included | Yes |
Battery Type | Fixed Li-ion Battery (3.7V, 2600mAh) |
Power Source | Fixed Li-ion Battery |
Thermal Resolution | 120 × 90 Pixels |
Temperature Measurement Range | -20°C to 400°C |
Minimum Temperature | -20°C |
Maximum Temperature | 400°C |
Thermal Sensitivity (NETD) | ≤60mK |
Display | 2.4" TFT LCD |
Display Resolution | 320 × 240 Pixels |
Display Size | 2.0–3.9 Inches |
Focus | Focus Free |
Emissivity | 0.01~1.00 Adjustable (Default 0.95) |
Color Palettes | White Hot, Black Hot, Ironbow, Rainbow HC, Rainbow, Lava |
Image Mode | Thermal |
Hi/Lo Temperature Alarm | Icon, LED Flashlight, Buzzer |
Smart Device | No |
Supported Languages | English, German, French, Russian, Spanish |
Certification | CE, FCC, RoHS |
Origin | Mainland China |
Key Features
- 120 × 90 pixel infrared thermal sensor
- Temperature measurement range from -20°C to 400°C
- High thermal sensitivity ≤60mK
- 2.4-inch TFT LCD display (320 × 240)
- Focus-free operation for quick inspections
- Adjustable emissivity from 0.01 to 1.00
- Six professional color palettes
- High/Low temperature alarms with visual and audible alerts
- Built-in 2600mAh rechargeable Li-ion battery
- Supports 5 operating languages
- Suitable for electrical inspection, HVAC maintenance, building diagnostics, equipment troubleshooting, and preventive maintenance
Estimated Weight & Dimensions (Approx.)
Item | Estimated Value |
Device Weight | 350–450 g |
Package Weight (WT) | 0.8 kg |
Length (L) | 24 cm |
Width (W) | 12 cm |
Height (H) | 8 cm |
Recommended Shipping Data
WT | L | W | H |
0.8 kg | 24 cm | 12 cm | 8 cm |
Description

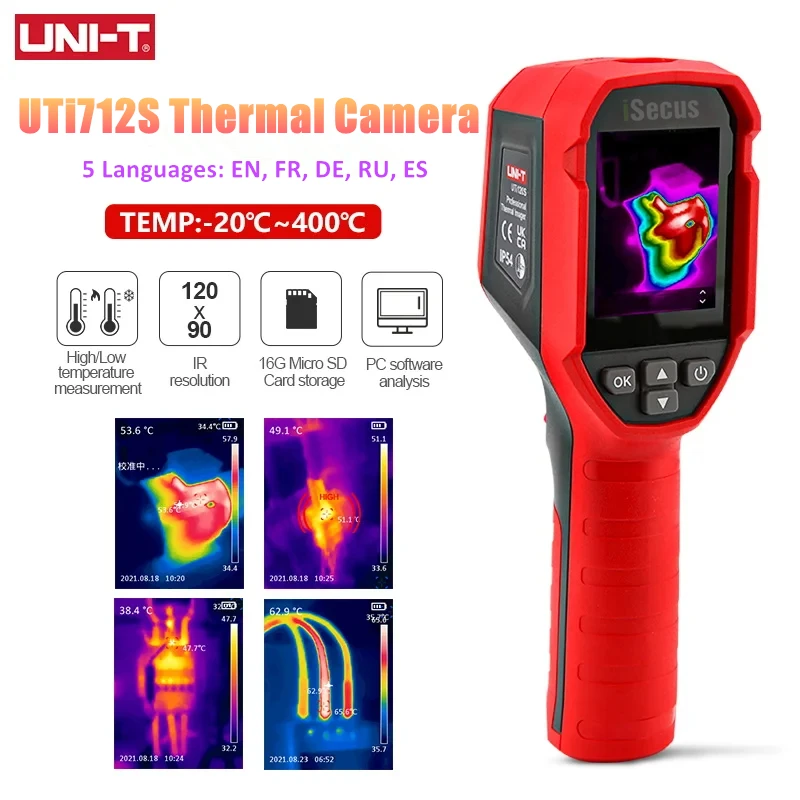

UTi712S Thermal Camera 120x90 Handheld IR Imager for PCBA HVAC Automotive Inspection, -20~400℃ Rugged Thermographic Camera
UTi712S Professional Handheld Thermal Camera: Your Essential Diagnostic Tool
Discover hidden problems instantly with the UTi712S, a cost-effective thermal imager designed for professionals and DIY experts. This rugged thermal camera combines high performance with a durable, IP54-rated and 2m drop-proof body, making it the perfect thermographic camera for any job site. As a powerful heat camera, it helps you see the invisible world of temperature.
Why Choose the UTi712S Thermal Imager?
- Clear Thermal Vision: Featuring a 120x90 IR resolution and a 2.4” TFT screen, this infrared camera provides crisp images to quickly identify hot and cold spots.
- Wide Temperature Range: Measure from -20℃ to 400℃ (-4℉ to 752℉), making it a versatile industrial thermal camera for a huge variety of tasks.
- Built for the Field: With IP54 waterproof and dustproof protection and a 2m drop-proof rating, this rugged thermal camera is built to last in tough environments.
- Intelligent Diagnostics: Automatically track hot/cold spots and set high/low-temperature alarms with a buzzer. The included PC software analysis tool allows for in-depth reporting.
- User-Friendly Features: Equipped with a laser pointer for precise targeting, an LED flashlight for dark spaces, and a rechargeable Li-ion battery with over 8 hours of operation.
Unlimited Applications: The Perfect Diagnostic Tool For Every Industry
This versatile portable IR camera is engineered for a wide array of professional and home use cases.
- Electronics & PCBA Inspection: The ideal thermal camera for electronics repair. Safely inspect printed circuit boards (PCBA) for overheating components without contact.
- Automotive Maintenance: A must-have automotive thermal imager for mechanics. Diagnose engine issues, check bearings, and inspect exhaust and A/C systems.
- Building & HVAC Inspection: An essential tool for any HVAC inspection. Use it as a heat leak detector camera to easily find insulation gaps, water leaks, and problems with underfloor heating.
- Electrical Inspection: Safely perform electrical inspection on power distribution cabinets, transformers, and facilities to prevent failures before they happen.
- Industrial Maintenance: Perfect for motor inspection, mechanical equipment checks, and inspecting solar panels for defects.

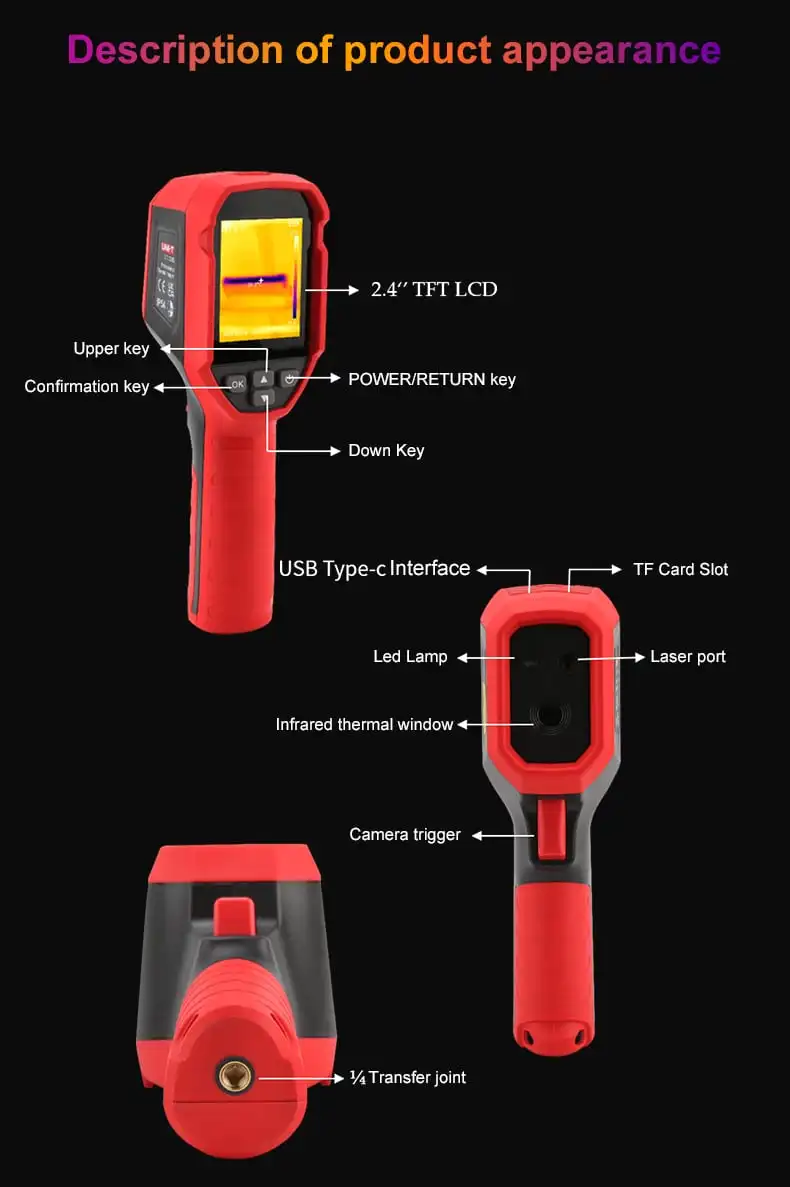

Key Features at a Glance:
- IR Resolution: 120×90 pixels
- Screen: 2.4” TFT Screen (320×240)
- Tracking: Auto tracking for hot spot/cold spot
- Alarms: Buzzer alarm for high/low temperature

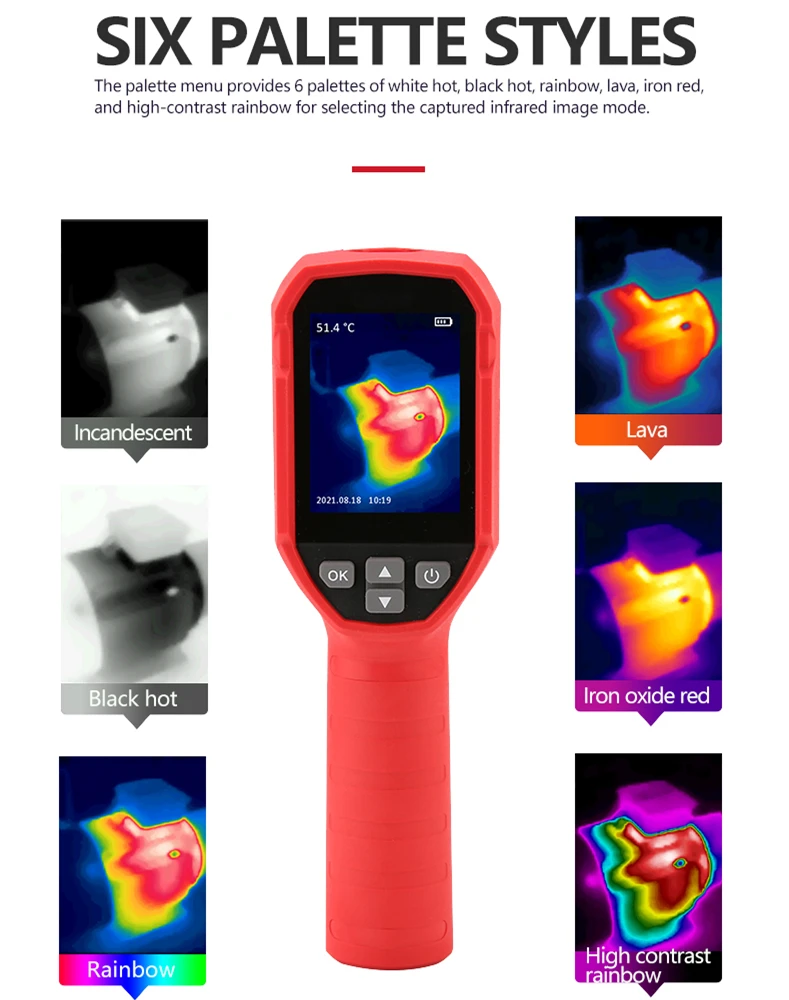

- Image Palettes: 6 options (Lava, Rainbow HC, Rainbow, Ironbow, White Hot, Black Hot)
- Targeting: Laser Pointer & LED Flashlight

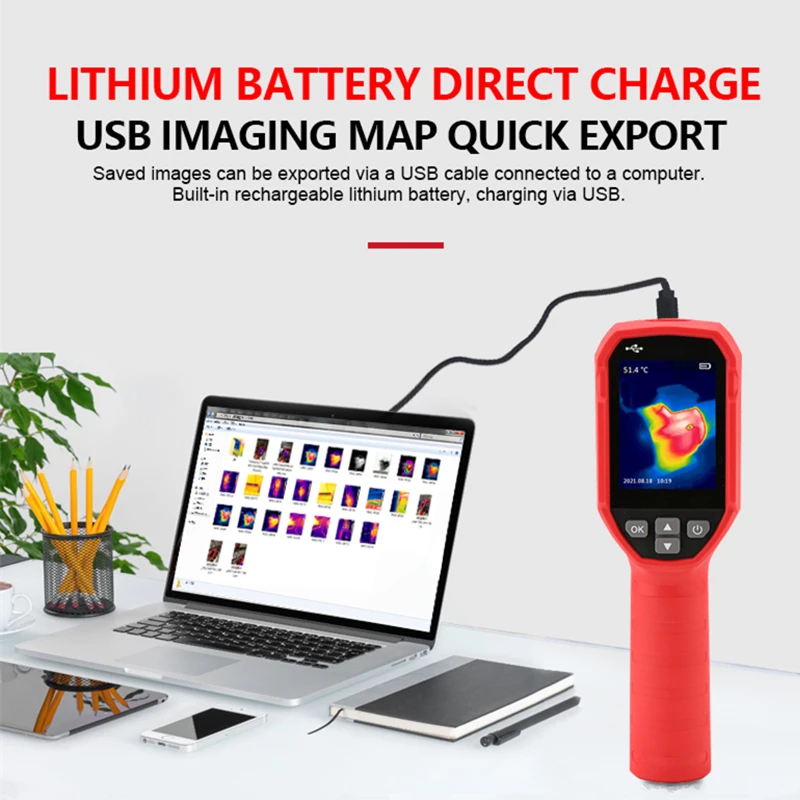

- Connectivity: PC Software for analysis and reporting
- Power: Rechargeable Li-ion battery (>8 hours life)
- Mounting: Standard 1/4” tripod mounting hole
Technical Specifications:
Model Number | UTi712S |
IR Resolution (Pixels) | 120 × 90 |
Display | 2.4” TFT LCD (320 × 240) |
Field of View (FOV) | 50° × 38° |
Thermal Sensitivity (NETD) | ≤ 60 mK |
Spatial Resolution (IFOV) | 7.3 mrad |
Frame Rate | ≤ 25 Hz |
Spectral Range | 8 ~ 14 µm |
Focus | Focus Free |
Temperature Measurement Range | -20℃ ~ 400℃ |
Accuracy | ±2℃ or ±2% (whichever is greater) |
Emissivity | 0.01 ~ 1.00 adjustable (0.95 default) |
Color Palettes | 6 (White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava) |
Image Modes | Thermal |
Hi/Lo Temperature Alarm | Icon, LED flashlight, Buzzer |
PC Software Analysis | ✔ |
Laser Pointer | ✔ |
LED Light | ✔ |
Battery | Fixed Li-ion battery (3.7V 2600mAh) |
Battery Operation Time | ≥ 8 hours |
USB | Type-C |
IP Rating | IP54 |
Drop Proof | 2 meters |
Storage | 16GB Micro SD card |
Image/Video Storage Format | BMP |
Certificates | CE, UKCA, FCC, RoHS |
Product Net Weight | 310 g |
Product Size | 197 mm × 72 mm × 60 mm |

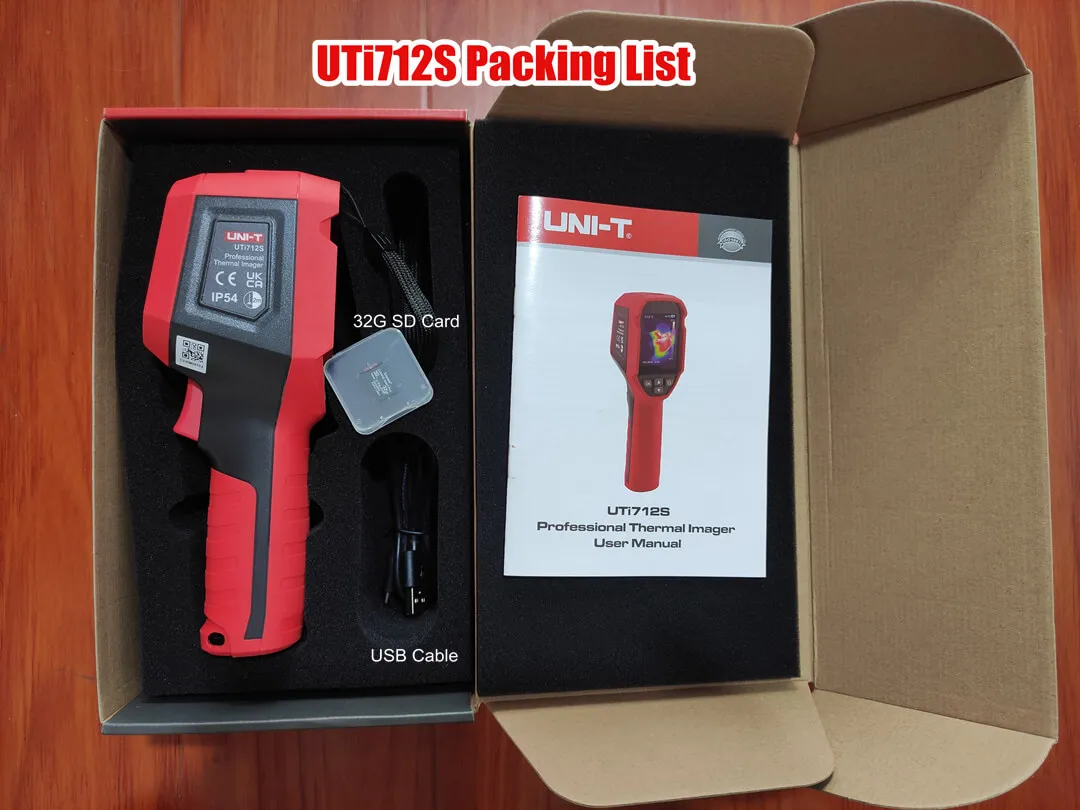

What's in the Box:
- 1 x UTi712S Thermal Camera
- 1 x Type-C USB Cable
- 1 x 16GB TF Card
- 1 x User Manual
Original Packing with Brand New Camera:
Thermal Sensitivity: ≤60mK Display: 2.4 TFT LCD (320x240) Battery: Fixed Li-ion battery (3.7V 2600mAh) Emissivity: 0.01~1.00 adjustable (0.95 default) Color Palettes: 6 modes (White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava) Durability: IP54/2m Drop |Uni T Uti712s|Uni T Uti712s Thermal Imager| **Advanced Thermal Imaging for Professional Diagnostics** The UNI-T UTi712S Thermal Camera is an indispensable tool for professionals and DIY enthusiasts alike, offering unparalleled clarity and precision in thermal imaging. With a 120x90 IR resolution and a crisp 2.4-inch TFT LCD screen, this infrared camera provides detailed images that allow for rapid identification of hot and cold spots. Whether you're an HVAC technician, automotive mechanic, or an electronics repair specialist, the UTi712S is designed to enhance your diagnostic capabilities with ease. **Versatile Performance for a Wide Range of Applications** The UTi712S thermal imager is a versatile device that excels in a myriad of scenarios. Its wide temperature range of -20℃ to 400℃ (-4℉ to 752℉) makes it suitable for a wide array of tasks, from checking the efficiency of heating and cooling systems to identifying overheating components in electronics. Its rugged construction, with an IP54 rating and a 2m drop-proof feature, ensures that it can withstand the rigors of field use. The device's smartphone connectivity via the UNI-T UTi712S app allows for easy image sharing and storage, making it a valuable asset for both on-site and office-based work. **User-Friendly Design and Advanced Features** The UTi712S is not only a powerful tool for professionals but also user-friendly, with a laser pointer for precise targeting and an LED flashlight for low-light conditions. It comes with a rechargeable Li-ion battery that offers over 8 hours of operation, ensuring that you have ample time to complete your tasks. The device's intelligent diagnostics, including high/low-temperature alarms, PC software analysis, and an array of color palettes, make it a reliable companion for professionals who demand accuracy and efficiency in their work. Whether you are a seasoned expert or a newcomer to the field, the UNI-T UTi712S thermal imager is a reliable and cost-effective solution for your thermal imaging needs.
