MLC500 LC Meter LC And RC Oscillation With SMD Clip 500kHz Digital Capacitance Inductance Meter AutoRanging Component Tester
Specifications | Details |
Model Number | MLC500 |
Brand Name | easyover |
Display Type | Digital Display |
Operating Mode | Auto Range |
Battery Included | No |
Is Smart Device | No |
Measuring Capacitance Range | 0.00pF – 100.00mF |
Measuring Inductance Range | 0.000uH – 100H |
Measuring Resistance Range | 0Ω |
DC Voltage | N/A |
AC Voltage | N/A |
DC Current | N/A |
AC Current | N/A |
Operating Temperature | 0°C – 50°C |
DIY Supplies | Electrical |
Certification | CE, RoHS |
Dimensions | 17.5 × 9.5 × 5 cm |
High-Concerned Chemical | None |
Origin | Mainland China |
Description

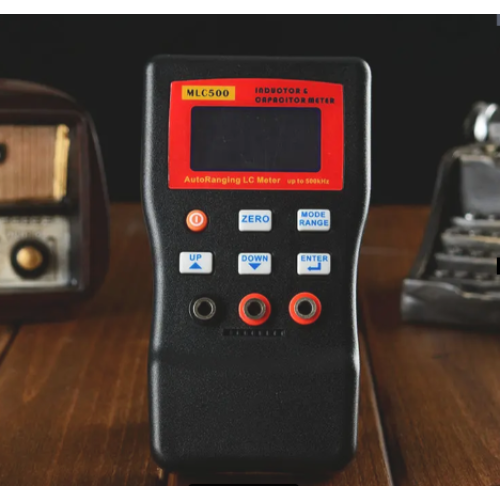

High Resolution Auto-ranging Component Tester 500kHz MLC500 LCD Display LC Meter For LC And RC Oscillation With SMD Test Clip
MLC500 LC meter is autoranging component tester, can drive up to 500 KHz, suitable for small value capacitor and inductor measurement. It provides very stable and high resolution measurement up to 5 digits. Meter can measure 0.00pF to 100.00mF capacitance and 0.000uH to 100.00H This meter is using two technique measurement, LC oscillation and RC oscillation. LC is much suitable for small value measurement and RC for high value capacitance.
*Discharge Capacitor before Testing!!
* Please don’t connect under testing device during power on, it will affect the initialization.
Features:
- Fully auto-ranging designed
- High resolution, up to 5 digit display, most finest resolution: 0.01pF, 0.001uH
- High stability and measurement range for L/ C
- Large LCD display with backlight
- USB PC program, can take record and pass and fail component sorting function.
- Capacitor discharge terminal and capacitor storage voltage display.
Inductor Measurement:
Test lead plug to black and red (right side) socket. Press Mode/Range button to select inductor mode
Capacitor Measurement:
Test lead plug to black and red (right side) socket, capacitor with polarity please follow the – and + sign. Press Mode/Range button to select capacitor mode
USB External Power:
USB 5V, you can use standard 500mA USB charger or PC port for external power, suggest to power off before plug in or remove USB cable
Discharge:
Display the current capacitor’s voltage; please discharge the capacitor below 1 V before you put it to measuring terminal.
Frequency:
Display the current measurement frequency, frequency is not tunable by user, and it change automatically according the under testing component
RC Time:
One RC constant for the current testing mode
PC Connection:
1) Install the USB driver
2) Install the PC program
3) Connect USB Cable between MLC500 and PC
4) Check which port is assigned: The device name is USB-SERIAL CH340, example is showing COM10
Window XP: Control Panel -> Hardware Device -> COM & LPT
Window 7: My Computer (right click Mouse) -> Properties -> Hardware Device -> COM & LPT
/p>
- Large LCD display with backlight
- USB PC program, can take record and pass and fail component sorting function.
- Capacitor discharge terminal and capacitor storage voltage display
Package Included:
1*MLC500
1*SMD Test Clip
