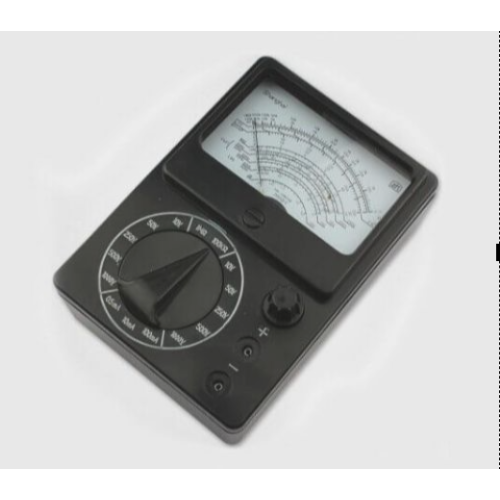

MF-15 Analog Multimeter is a rectifier-type moving coil instrument designed for radeio servicing and electrical measurements of D.C. current and voltage, A.C. voltage. Output lever, capacitance, and inductance.
Analog Multimeter | |||||
MODEL: MF-15 | |||||
Basic Function | Range | Accuracy | |||
DC Voltage | 0～10V～50V～250V～500V～1000V | 2.50% | |||
AC Voltage | 0～10V～50V～250V～500V～1000V | 5% | |||
DC Current | 0～500μA～10mA～500mA | ||||
AC Current | |||||
D.C. Resistance | 0 ~ 100kΩ; 0 ~ 1MΩ | 2.5% of scale length | |||
Capacitance | 0 ~ 0.03 ~ 0.6μF | ||||
Frequency | 45~1000Hz | ||||
Temperature | 0°C~+50°C | ||||
Inductance Range | 10~1000H | ||||
Relative humidity | <85%RH | ||||
Output level | -10~+22~+36~=50~+56~+62dB | ||||
Standard Features | |||||
Body Color | Black | ||||
Size | 92×43×132mm | ||||
Working condition of MF-15 Analog Multimeter:
- Ambient temperature 0°C~+50°C
- Relative humidity<85%
- Frequency range 45~1000Hz
- Dimensions:92×43×132mm
Package Include:
- 1xMeter
- 2xProbes
- 1xMannual
