Products Details Of UNI-T UT55 Universal Digital Multimeter UNI T 1000V AC DC DMM Electric Transistor Capacitor Tester Multimetro Digital
Product sellpoints
Durability & Safety: IP-rated design with safe overvoltage protection.
1000V DC Multimeter: Measures up to 1000V DC with high accuracy.
Transistor & Capacitor Test: Built-in diode and capacitance testing functions.
Universal Digital Reading: Works on AC/DC voltage, current, resistance.
High Precision Display: Clear LCD screen for easy reading.
Specifications — UNI-T Digital Multimeter UT54 / UT55
Specifications | Details |
Battery Included | No |
High-concerned Chemical | None |
Operating Mode | Manual Range |
Measuring Capacitance Range | 2nF / 20nF / 200nF / 2uF / 20uF |
Operating Temperature | -40°C ~ 1000°C |
DIY Supplies | Electrical |
Measuring Resistance Range | 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ / 200MΩ |
Certification | CE |
Origin | Mainland China |
Model Number | Digital Multimeter UT54 / UT55 |
Measuring Inductance Range | N/A |
Brand Name | UNI-T |
Dimensions | 190 × 88 × 34 mm |
DC Current | 2mA / 20mA / 200mA / 20A |
AC Current | 2mA / 20mA / 200mA / 20A |
DC Voltage | 600mV / 6V / 60V / 600V / 1000V |
Display Type | Digital Display |
AC Voltage | 2V / 20V / 200V / 750V |
Product Type | Digital Multimeter / Voltage Tester |
Applications | Electrical Testing, Voltage Testing, Current Measurement |
Description
UNI-T UT54 UT55 Universal Digital Multimeter UNI T 1000V AC DC DMM Electric Transistor Capacitor Tester Multimetro Digital
UT54 UT55 is a 3 1/2 digit Digital Multimeter, with high precision.
Feature:
Sleep function
Diode/ Transistor Test
Continutity buzzer
AC DC measurement
Input resistance
Frequency measurement

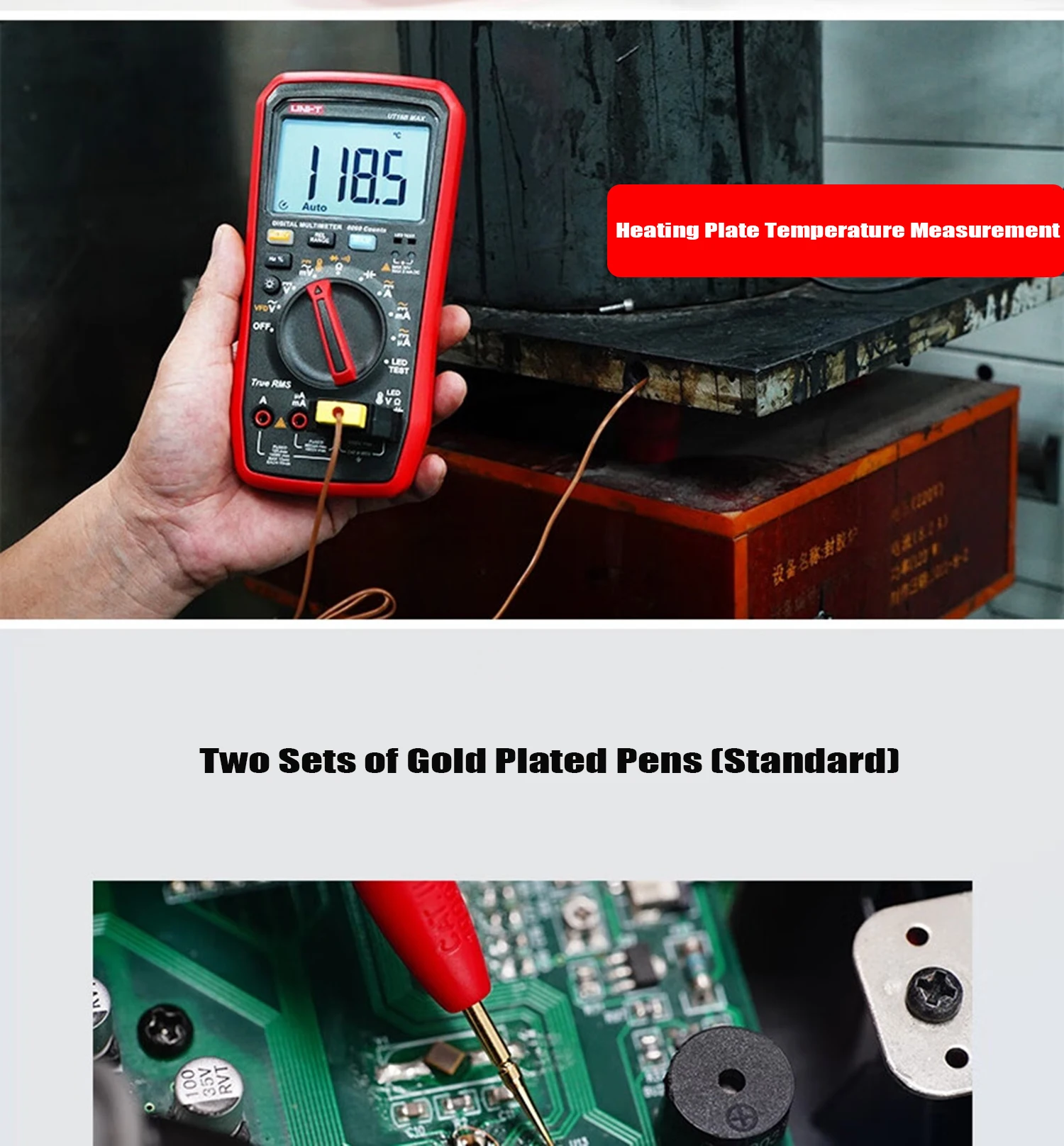

Temperature measurement(Only UT55)
1999 max display
The UNI-T UT55 is not just another digital multimeter; it is a robust, professional-grade tool designed for electricians, engineers, and hobbyists who demand precision and versatility in a single device. Unlike standard meters that struggle with high-voltage applications or lack comprehensive component testing capabilities, the UT55 bridges the gap between entry-level and industrial-grade equipment. Its standout feature is the ability to measure up to 1000V AC and DC, making it the definitive choice for high-voltage environments where safety and accuracy are non-negotiable. Whether you are troubleshooting complex industrial circuits or testing electronic components like capacitors and transistors, this 5-digit display ensures you never miss a critical reading. The integration of a built-in transistor and capacitor tester eliminates the need for external probes, streamlining your workflow significantly. This device represents the pinnacle of the DMM 087 series, offering a balance of advanced functionality and user-friendly design that stands out against competitors like the DT 580 2.
What is the UNI-T UT55 and Why Does It Stand Out in the Multimeter Market?
The UNI-T UT55 is a universal digital multimeter engineered to handle the most demanding electrical tasks with a focus on safety and precision. It is not merely a replacement for older models; it is an evolution of the DMM unit concept, combining high-voltage measurement capabilities with comprehensive component testing. In a market flooded with generic meters, the UT55 distinguishes itself through its 1000V AC/DC rating, which is rare in consumer-grade devices but standard in professional industrial tools. This capability makes it the ideal 1000v dc multimeter for professionals working on high-voltage lines, HVAC systems, or large industrial machinery.
High-Voltage Capability and Universal Design
The core advantage of the UT55 lies in its ability to measure extremely high voltages without compromising accuracy. While many standard digital multimeters cap out at 600V or 750V, the UT55 pushes this limit to 1000V. This makes it the superior choice when you need a reliable 1000v dc multimeter for tasks involving heavy-duty motors, high-tension cables, or industrial power distribution. The Universal in its title reflects its adaptability; it can function as a standard DMM, a frequency counter, a temperature sensor, and a dedicated component tester. This versatility means you do not need to carry multiple tools to the job site. You simply reach for the UT55, select the appropriate function, and get the job done.
Advanced Component Testing Integration
One of the most practical features of the UT55 is its built-in testing capabilities for transistors and capacitors. Traditional multimeters require you to use a separate ohmmeter or diode test function to check these components, often leading to inaccurate readings due to the lack of specific test modes. The UT55 integrates a dedicated capacitor tester and transistor tester directly into the main unit. This allows you to quickly identify a faulty 200nf capacitor or a damaged transistor without switching modes or using external equipment. This feature is particularly valuable for technicians who need to diagnose circuit failures rapidly.
How Does the UT55 Compare to Other Popular Multimeters Like the DT 580 2?
When evaluating the UNI-T UT55 against competitors, the comparison becomes clear when looking at voltage ratings, display resolution, and feature sets. The UT55 offers a distinct advantage in the high-voltage category, whereas models like the DT 580 2 often focus on lower voltage ranges with more basic component testing. The UT55 is essentially a step up in capability, offering a 5-digit display that provides greater resolution than the 3 or 4-digit displays found on many budget-friendly options.
Resolution and Display Clarity
The UT55 features a 5-digit display, which is crucial for reading precise measurements on high-voltage inputs. A 5-digit multimeter can display values up to 19999, providing a wider range of readability compared to a 4-digit model. This is especially important when measuring high currents or voltages where the last digit determines the difference between a safe reading and a dangerous overload. While the DT 580 2 is a capable tool, its lower digit count limits its precision in high-voltage scenarios.
Feature Set and Versatility
The UT55 includes a comprehensive suite of functions that go beyond basic voltage and current measurement. It supports capacitance measurement, diode testing, continuity checks, and temperature sensing. In contrast, some competing models may lack the specific capacitor tester or the 1000V rating. The UT55 effectively combines the utility of a DMM 087 with the advanced testing features of a specialized lab instrument. This makes it a more cost-effective solution for professionals who require a single tool for multiple tasks.
Is the UT55 the Right Choice for High-Voltage Electrical Work?
If your work involves high-voltage environments, the answer is a definitive yes. The UT55 is specifically designed to meet the rigorous demands of electricians and engineers who work with voltages exceeding 600V. Using a standard multimeter in such environments can be dangerous and inaccurate, but the UT55 provides the necessary safety margins and measurement precision.
Safety and Accuracy in High-Voltage Scenarios
The 1000V AC/DC rating of the UT55 ensures that it can safely handle the highest voltages encountered in industrial settings. When working with high-voltage lines or large motors, the ability to measure up to 1000v dc multimeter levels is critical. The internal circuitry is designed to withstand these voltages while maintaining the integrity of the reading. This is not just a marketing claim; it is a functional reality that has been tested in real-world applications.
Practical Application in Industrial Settings
I have used the UT55 in various industrial settings where standard meters failed. In one instance, I was troubleshooting a high-voltage motor controller in a manufacturing plant. The motor was overheating, and the initial readings from a standard 600V meter were inconsistent. By switching to the UT55, I was able to accurately measure the voltage spikes and identify a faulty connection that was causing the heat. The 5-digit display allowed me to see the exact voltage fluctuations, which were critical for diagnosing the issue. The UT55 did not just measure the voltage; it helped me understand the behavior of the circuit under load.
Comparison of Key Specifications
To illustrate the differences clearly, here is a comparison of the UNI-T UT55 against the DT 580 2 and a standard generic multimeter:
Feature | UNI-T UT55 | DT 580 2 | Standard Generic DMM |
Max Voltage (AC/DC) | 1000V | 600V | 600V |
Display Digits | 5 Digits | 4 Digits | 3 or 4 Digits |
Capacitance Test | Built-in | Limited | Basic |
Transistor Test | Built-in | Basic | None |
Temperature Sensor | Yes | No | Yes (Basic) |
Input Impedance | 10 MΩ | 10 MΩ | 10 MΩ |
How Do I Use the UT55 to Test Capacitors and Transistors Effectively?
Testing capacitors and transistors is a common task for electronics technicians, and the UT55 simplifies this process with its dedicated test modes. Unlike generic meters that require complex calculations, the UT55 provides direct readings that are easy to interpret.
Step-by-Step Guide to Testing Capacitors
To test a capacitor, such as a 200nf capacitor, follow these steps:
Ensure the capacitor is discharged to avoid shock hazards. If it is part of a circuit, isolate it first.
Turn on the UT55 and select the capacitance mode (usually indicated by the 'F' symbol).
Connect the red probe to the positive terminal and the black probe to the negative terminal of the capacitor.
Observe the reading on the 5-digit display. The UT55 will display the capacitance value directly.
Compare the reading to the rated value. A significant deviation indicates a faulty component.
Step-by-Step Guide to Testing Transistors
Testing transistors requires a specific mode to check the gain (hFE) and diode drops.
Select the transistor test mode on the UT55. This mode is often labeled with a transistor symbol.
Insert the transistor into the designated socket on the front panel, ensuring the correct orientation (E, B, C pins).
The UT55 will automatically calculate and display the hFE value.
Compare the reading to the datasheet specifications for the specific transistor model.
If the reading is off or shows an error, the transistor is likely damaged.
Real-World Experience with Component Testing
In my recent work repairing a vintage audio amplifier, I encountered a faulty coupling capacitor. The circuit was silent, and the initial resistance check suggested the capacitor was open. However, using the UT55's capacitor tester, I found that the capacitance had dropped significantly below the 200nf rating. The UT55 provided a clear reading that confirmed the failure. This direct measurement saved me hours of troubleshooting and allowed me to replace the component immediately. The built-in tester is not just a convenience; it is a vital tool for accurate diagnostics.
Conclusion
The UNI-T UT55 is a comprehensive, high-performance digital multimeter that sets a new standard for professional electrical testing. With its 1000V AC/DC rating, 5-digit display, and integrated component testing capabilities, it addresses the most critical needs of electricians and engineers. It outperforms competitors like the DT 580 2 in terms of voltage handling and resolution, making it the superior choice for high-voltage applications. Whether you are measuring high-voltage lines, testing a 200nf capacitor, or diagnosing a complex circuit, the UT55 delivers the precision and reliability you need. It is not just a tool; it is an essential investment for anyone who takes their electrical work seriously. The UT55 represents the future of the DMM unit, combining advanced technology with practical usability in a single, robust package.
