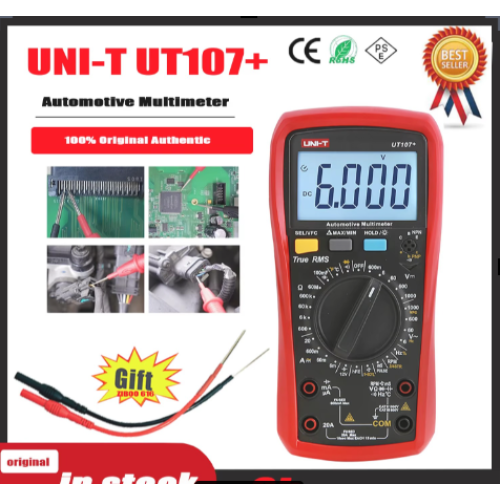

Product Details of UNI-T UT107+ Automobile Multimeter High Precision True RMS Automobile Automatic Range Actual Value Digital Multimeter.
Specifications | Details |
Battery Included | No |
High-concerned Chemical | None |
Operating Mode | Auto Range |
Measuring Capacitance Range | 6nF / 60nF / 600nF / 6uF / 60uF / 600uF / 6mF / 60mF / 100mF (Only UT107+) |
DIY Supplies | Electrical |
Measuring Resistance Range | 400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ |
Certification | CE |
Origin | Mainland China |
Model Number | UT105+ |
Measuring Inductance Range | 10Hz ~ 10MHz |
Brand Name | UNI-T |
Dimensions | 183 × 88 × 56 mm |
DC Current | 4mA / 40mA / 400mA / 20A |
AC Current | 4mA / 40mA / 400mA / 20A |
DC Voltage | 400mV / 4V / 40V / 400V / 1000V |
AC Voltage | 4V / 40V / 400V / 1000V |
Display Digits | 4000 |
mS Pulse | 999.9mS (Only UT107+) |
Temperature | -40℃ ~ 1000℃ / -40℉ ~ 1832℉ |
VFC | 1000V |
### Special tip pen value
◆ It can be used to measure the dense pins of the integrated block. Due to the small contact area, it is not easy to short-circuit. For the circuit board covered with paint, it can be measured through the paint.
◆ It can be used to measure the density of cables (such as: the connectors of each circuit cable in the car). Because the cables of the car are all waterproof and well insulated, the tip of the ordinary test pen cannot touch the part that needs to be measured.
