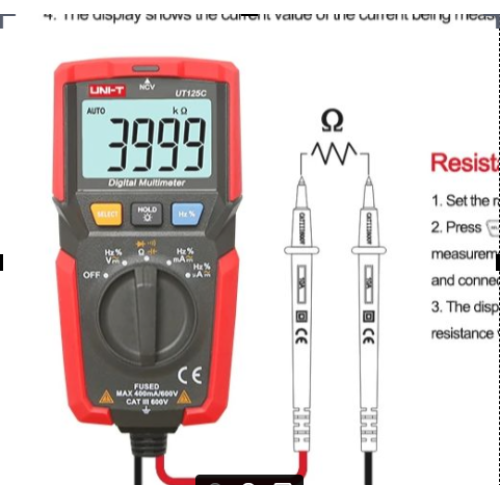

UT125C Pocket Size Digital Multimeter
UT125C is a pocket size, ergonomic and reliable multimeter with 4000 display counts. It is a useful tool for electronics DIYers working with low currents (< 0.4A). This product is CE/cETLus certified and complies with CAT III 600V.
UNI-T UT125C Handheld Pocket Size Digital Multimeter AC/DC Voltage Tester Resistor Capacitor Frequency Diode NCV Test
Specifications | Range | UT125C |
DC voltage (V) | 600V | ±(0.5%+5) |
AC voltage (V) | 600V | ±(1.2%+5) |
DC current (A) | 400mA | ±(1.8%+5) |
AC current (A) | 400mA | ±(2%+8) |
Resistance (Ω) | 40MΩ | ±(1%+5) |
Capacitance (F) | 100μF | ±(4%+10) |
Frequency (Hz) | 10Hz~60kHz | ±(0.1%+5) |
Duty cycle | 20%~80% | Reference |
Features | ||
NCV | √ | |
Diode test/Continuity test | √ | |
Low battery indication | √ | |
Data hold/Auto power off | √ | |
Operating temperature | 0℃~50℃ | |
General Characteristics | ||
Power | 1.5V battery (R03) x 2 | |
Display | 38mm x 23mm | |
Product color | Red and grey | |
Product net weight | 180g | |
Product size | 112mm x 58mm x 35mm | |
Standard accessories | Batteries | |
Standard individual packing | Gift box, English manual | |
Standard quantity per carton | 60pcs | |
Standard carton measurement | 500mm x 290mm x 280mm | |
Standard carton gross weight | 13.1kg | |
Features of UT125C Pocket Size Digital Multimeter
Certifications: CE, UKCA, cETLus
● Small size, easy to carry and operate
● 600V DC/AC voltage measurement
● 400mA DC/AC current measurement
● Resistance/Capacitance/Diode/Continuity test
● Frequency/Duty cycle measurement
● CE (EMC, LVD, RoHS), cETLus
● CAT III 600V
● 1m drop test
