UNI-T ut501a انسولیشن ریزسٹینس ٹیسٹر 1000 وولٹ میگا میٹر 5gپروف ohm میٹر پروفیشنل ڈیجیٹل ohmمیٹر الیکٹریکل میگا میٹر
UNI-T فاسٹ انسولیشن ریزسٹینس ٹیسٹر ut501e 0.01mپروف ~ 4000mپروف انسولیشن ٹیسٹر ohm میٹر ڈیٹا اسٹوریج pi dar ٹیسٹ ip54
UNI-T ut502a 2500 وولٹ ڈیجیٹل انسولیشن ریزسٹینس میٹر ٹیسٹر اوہم میٹر انتہائی وولٹ میٹر تسلسل ٹیسٹر lcd بیک لائٹ کے ساتھ
UNI-T انسولیشن ریزسٹینس ٹیسٹر ut503pv 1.51m14-4000mپروف ڈیجیٹل میگوہم میٹر اسٹیپنگ وولٹیج کی پیمائش کا فنکشن

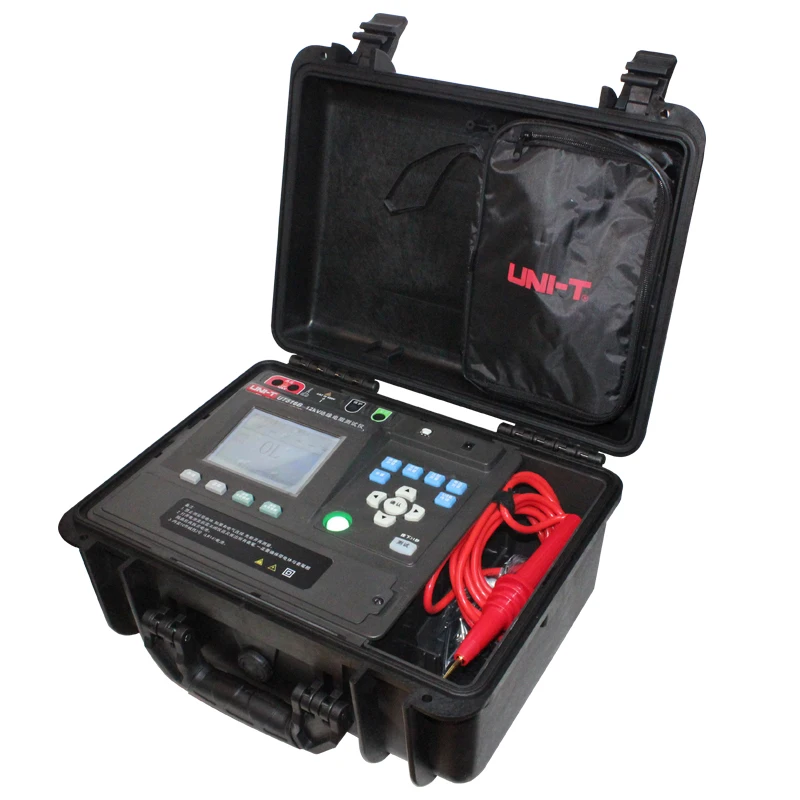

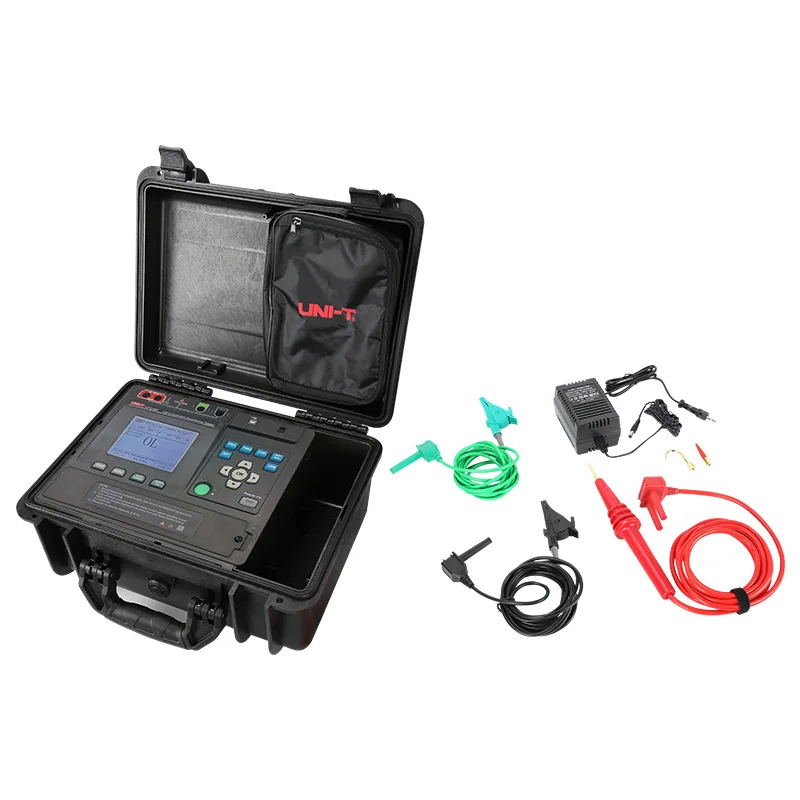

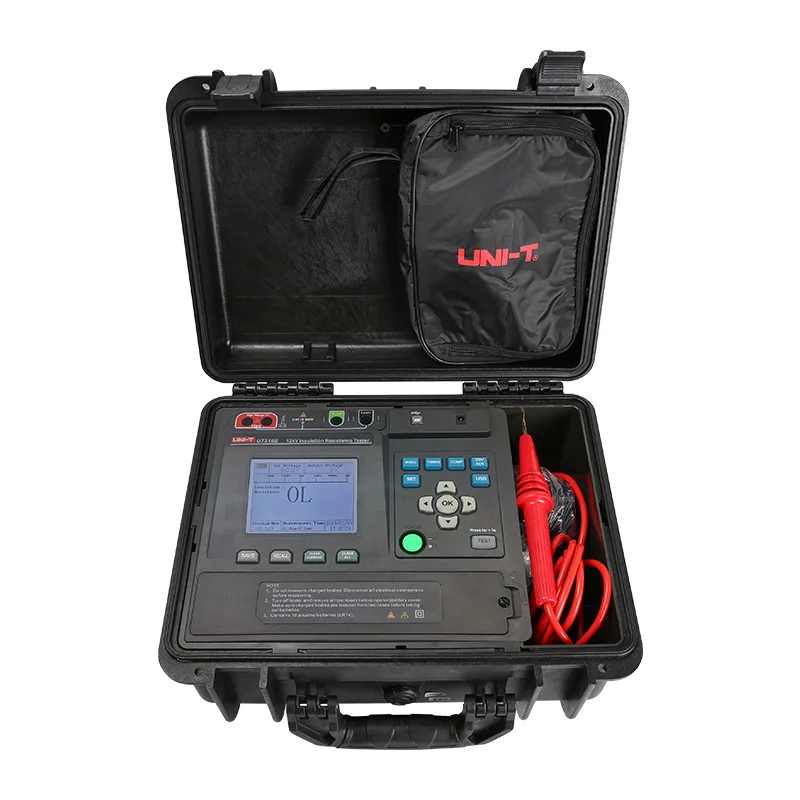

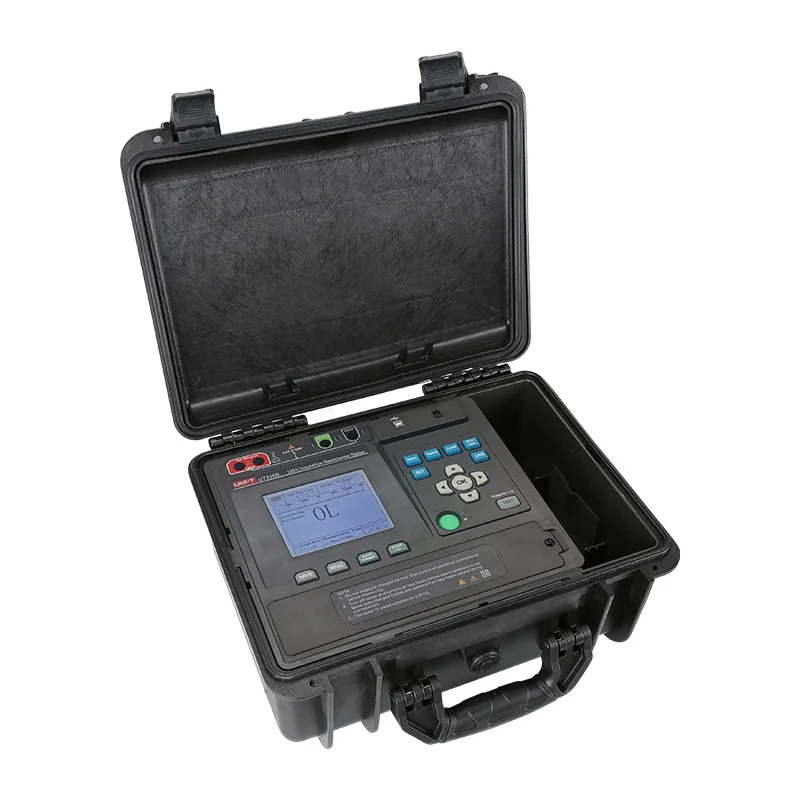

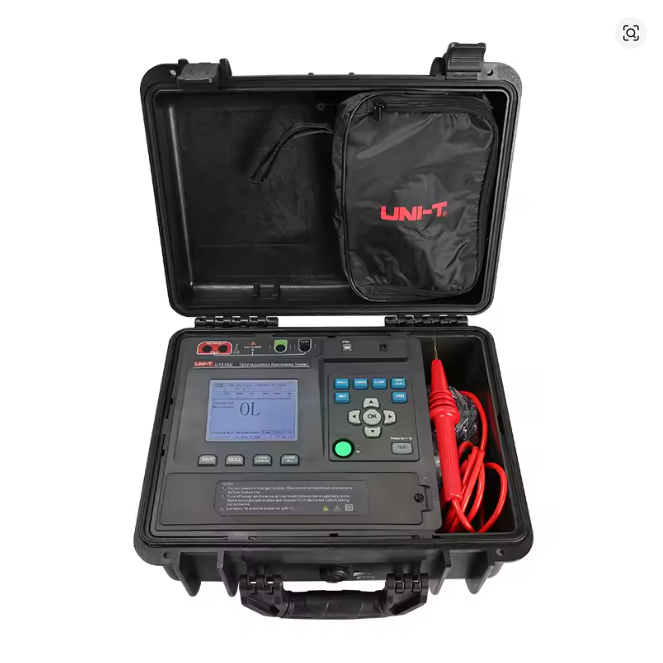

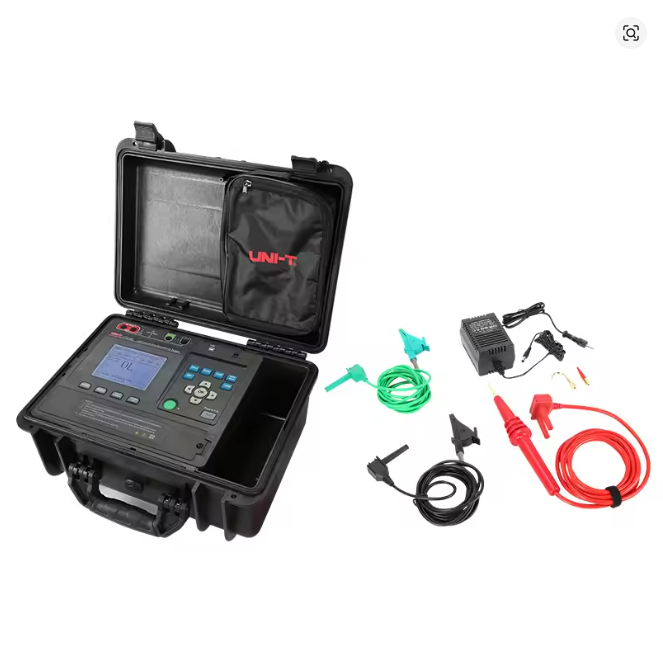

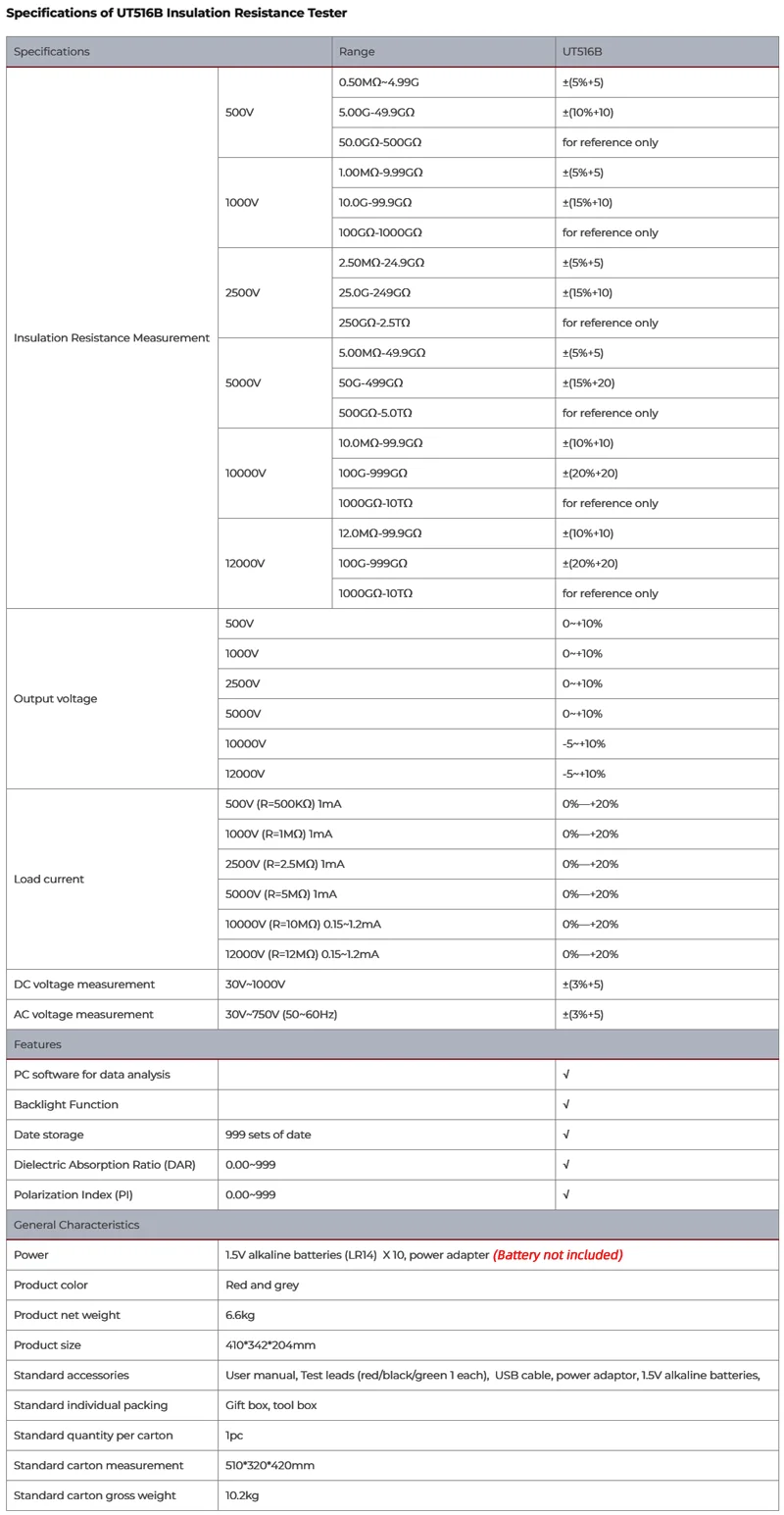

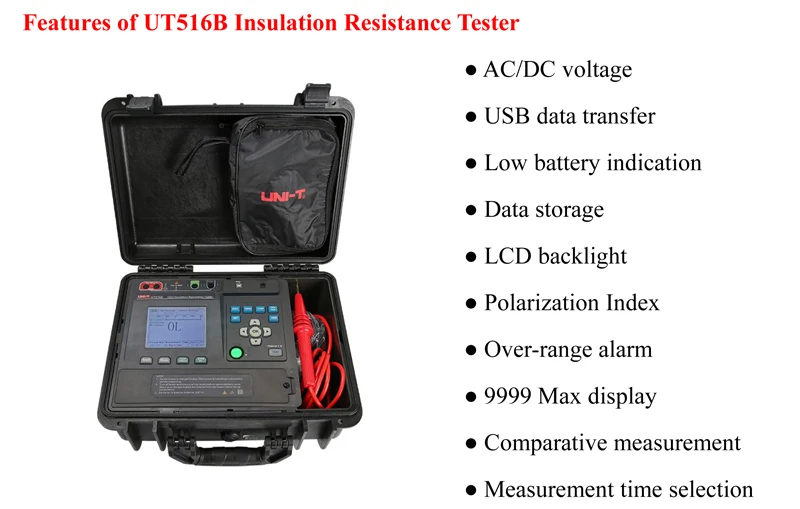

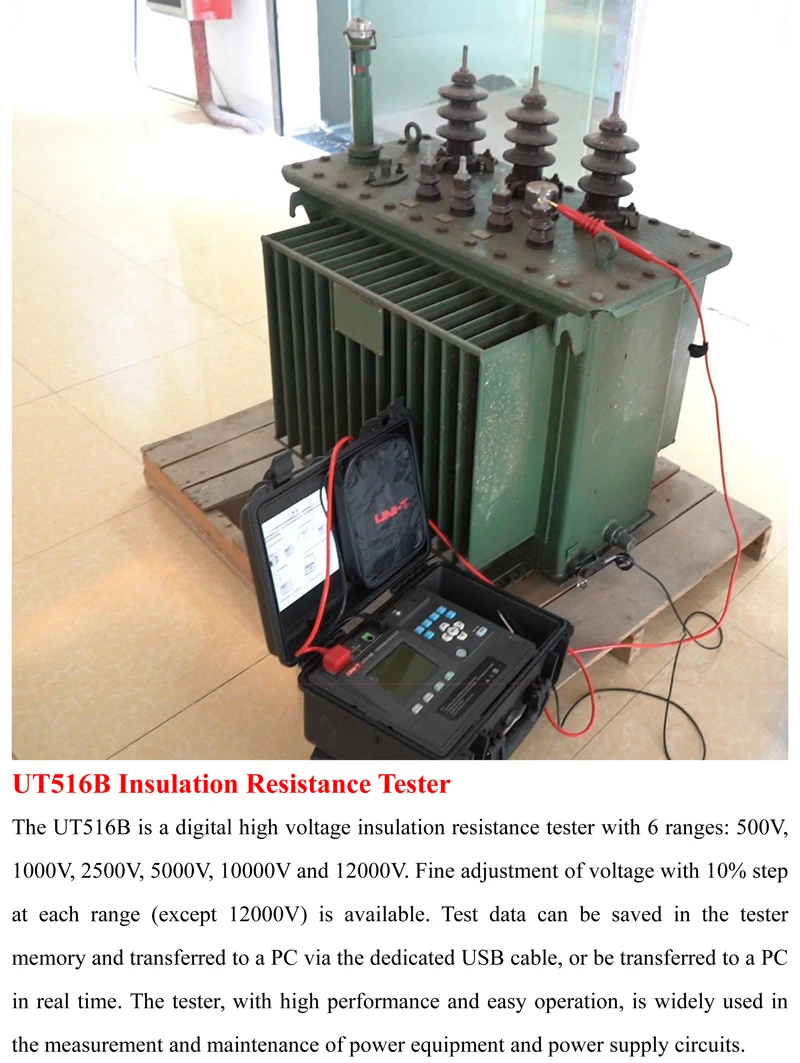

UNI-T ut516b انسولیشن ریزسٹینس ٹیسٹر/12000 وولٹ ڈیجیٹل میگوہم میٹر/10t 14/usb ڈیٹا ٹرانسفر
VC60B+ ڈیجیٹل انسولیشن ریزسٹنس ٹیسٹر VICI میگوہم میٹر 250V 500V 1000V اینٹی ہائی وولٹیج اور شارٹ سرکٹ ان پٹ الارم
وکٹر روشوئی 5150 الیکٹرانک ڈیجیٹل ورنیئر کیلپر کی حد 150 ملی میٹر کی پیمائش کی لمبائی بیرونی قطر کے اندر
اینالاگ ملٹی میٹر ڈی ای جی 360 ایک ملٹی میٹر یا ملٹی ٹیسٹر
UNI-T UT501A Insulation Resistance Tester 1000V Megohmmeter 5GΩ Ohm Meter Professional Digital Ohmmeter Electrical Megometer (UNI-T, UT501A)
UNI-T UT501A Insulation Resistance Tester
The UNI-T UT501A is a professional digital insulation resistance tester (Megohmmeter) designed for electrical insulation testing up to 5GΩ. It features selectable test voltages of 100V, 250V, 500V, and 1000V, making it suitable for testing motors, transformers, cables, switchgear, electrical installations, and industrial equipment. With automatic discharge protection, backlit LCD, audible and visual alarms, and AC voltage measurement up to 750V, the UT501A is an ideal tool for electricians and maintenance professionals.
Key Features
- Insulation Resistance Measurement up to 5GΩ
- Selectable Test Voltages: 100V / 250V / 500V / 1000V
- AC Voltage Measurement up to 750V
- 2000 Count Digital LCD Display
- Auto Range Function
- Automatic Discharge Protection
- Backlit LCD Display
- High Voltage Warning Indicator
- Audible & Visual Alarm
- Low Battery Indicator
- Overload Protection
- Test Voltage Secondary Display
- 10MΩ Internal Resistance Test
- Portable & Durable Design
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT501A |
| Product Type | Digital Insulation Resistance Tester (Megohmmeter) |
| Display | Digital LCD (2000 Counts) |
| Maximum Display | 1999 |
| Insulation Resistance Range | 0MΩ – 5GΩ |
| Test Voltages | 100V / 250V / 500V / 1000V |
| AC Voltage Range | 30V – 750V |
| Test Current | ≥1mA |
| Short Circuit Current | <2mA |
| Auto Range | Yes |
| Automatic Discharge | Yes |
| LCD Backlight | Yes |
| Light Alarm | Yes |
| Buzzer Alarm | Yes |
| High Voltage Indicator | Yes |
| Overload Protection | Yes |
| Low Battery Indicator | Yes |
| Test Voltage Display | Yes |
| 10MΩ Internal Resistance Test | Yes |
| Operating Temperature | -10°C to 40°C |
| Power Supply | 6 × 1.5V AA (LR6) Batteries |
| Product Dimensions | 150 × 100 × 71 mm |
| Weight | Approx. 500 g |
| Certifications | CE, FCC, RoHS |
| Origin | Mainland China |
Main Functions
- Insulation Resistance Testing up to 5GΩ
- 100V / 250V / 500V / 1000V Test Voltages
- AC Voltage Measurement (30V–750V)
- Auto Range Measurement
- Automatic Discharge Protection
- Backlit LCD Screen
- Audible & Visual Alarm System
- High Voltage Detection
- Low Battery Warning
- Overload Protection
- 10MΩ Internal Resistance Verification
Applications
- Electrical Installation Testing
- Motor Insulation Testing
- Transformer Maintenance
- Cable Insulation Inspection
- Industrial Equipment Maintenance
- Power Distribution Systems
- Electrical Safety Inspection
- Maintenance Engineering
What's in the Box
- UNI-T UT501A Insulation Resistance Tester
- Test Leads
- Alligator Clips
- 6 × AA Batteries
- Carrying Bag
- User Manual
- Retail Gift Box
UNI-T ut501a انسولیشن ریزسٹینس ٹیسٹر 1000 وولٹ میگا میٹر 5gپروف ohm میٹر پروفیشنل ڈیجیٹل ohmمیٹر الیکٹریکل میگا میٹر
UNI-T Fast Insulation Resistance Tester UT501E 0.01MΩ~4000MΩ Insulation Tester Ohm Meter Data Storage PI DAR Test IP54 (UNI-T, UT501E)
UNI-T UT501E Fast Insulation Resistance Tester
The UNI-T UT501E is a professional fast insulation resistance tester designed for electricians, maintenance engineers, and industrial applications. It measures insulation resistance up to 4GΩ with five selectable test voltages (100V, 125V, 250V, 500V, and 1000V). Featuring 2.5× faster testing, PI & DAR analysis, data storage, remote testing, PC software support, and IP54 protection, the UT501E is an ideal solution for testing motors, transformers, cables, switchgear, and electrical installations.
Key Features
- Insulation Resistance Measurement up to 4GΩ
- Five Test Voltages: 100V / 125V / 250V / 500V / 1000V
- 2.5× Faster Insulation Measurement
- PI (Polarization Index) Test
- DAR (Dielectric Absorption Ratio) Test
- Comparison Test Function
- 99 Groups Data Storage
- PC Software Analysis (USB)
- Remote Control Test Lead
- Lock Function to Prevent False Triggering
- Automatic Discharge Protection
- Audible & Visual Alarm
- Backlit LCD Display
- Auto Power Off
- Low Battery Indication
- Rechargeable Lithium Battery
- IP54 Dust & Water Protection
- CAT III 600V Safety Rating
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT501E |
| Product Type | Fast Digital Insulation Resistance Tester |
| Insulation Resistance Range | 0.01MΩ – 4000MΩ (4GΩ) |
| Selectable Test Voltages | 100V / 125V / 250V / 500V / 1000V |
| Low Resistance Measurement | 0.00Ω – 400Ω |
| AC Voltage Measurement | 30V – 600V |
| DC Voltage Measurement | 30V – 600V |
| Rated Test Current | 1.0mA |
| Short Circuit Current | <2.0mA |
| Fast Measurement | 2.5× Faster |
| PI Test | Yes |
| DAR Test | Yes |
| Comparison Function | Yes |
| Auto Discharge | Yes |
| High Voltage Alarm | Audible & Visual |
| Manual Range | Insulation Measurement |
| Auto Range | Voltage Measurement |
| Data Storage | 99 Groups |
| PC Software | Supported (USB Connection) |
| Remote Testing | Supported |
| Security Lock | Yes |
| Analog Bar Graph | Yes |
| Backlight | Yes |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Protection Rating | IP54 |
| Safety Category | CAT III 600V |
| Power Supply | 11.1V 2600mAh Rechargeable Lithium Battery |
| Dimensions (L × W × H) | 161 × 116 × 68 mm |
| Product Color | Black & Red |
| Battery Included | Yes |
| Origin | Mainland China |
Main Functions
- Fast Insulation Resistance Testing
- Motor Insulation Testing
- Transformer Insulation Inspection
- Cable & Wiring Testing
- Electrical Equipment Maintenance
- PI & DAR Diagnostic Testing
- Comparison Testing
- Automatic Discharge Protection
- Remote Controlled Measurement
- Data Recording & PC Report Analysis
Applications
- Electrical Installation Testing
- Industrial Maintenance
- Power Distribution Systems
- Transformer Inspection
- Motor Maintenance
- Cable Insulation Testing
- Factory Equipment Inspection
- Electrical Troubleshooting
What's in the Box
- UNI-T UT501E Fast Insulation Resistance Tester
- Rechargeable Lithium Battery
- Test Leads
- Alligator Clips
- User Manual
- Carrying Case
- Retail Packaging
UNI-T فاسٹ انسولیشن ریزسٹینس ٹیسٹر ut501e 0.01mپروف ~ 4000mپروف انسولیشن ٹیسٹر ohm میٹر ڈیٹا اسٹوریج pi dar ٹیسٹ ip54
UNI-T UT502A 2500V Digital Insulation Resistance Meter Tester ohmmeter Highly Voltmeter Continuity Tester With LCD Backlight (UNI-T, UT502A)
UNI-T UT502A 2500V Digital Insulation Resistance Tester
The UNI-T UT502A is a professional digital insulation resistance tester (Megohmmeter) designed for high-voltage insulation testing up to 2500V. It measures insulation resistance up to 20GΩ and features PI & DAR testing, low resistance measurement, AC voltage testing, automatic discharge, LCD backlight, audible alarms, and overload protection. It is an ideal instrument for electricians, industrial maintenance engineers, power distribution systems, cable testing, transformer maintenance, and motor insulation inspection.
Key Features
- High Voltage Insulation Testing up to 2500V
- Insulation Resistance Measurement up to 20GΩ
- Selectable Test Voltages: 500V / 1000V / 2500V
- PI (Polarization Index) Test
- DAR (Dielectric Absorption Ratio) Test
- Low Resistance Measurement
- AC Voltage Measurement up to 600V
- 2000 Count Digital LCD Display
- LCD Backlight
- Automatic Range Selection
- Automatic Discharge Function
- High Voltage Warning Indicator
- Audible & Visual Alarm
- Overload Protection
- Low Battery Indicator
- Test Voltage Secondary Display
- 10MΩ Internal Resistance Test
- IEC 61557 Compliant
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT502A |
| Product Type | Digital Insulation Resistance Tester (Megohmmeter) |
| Display | Digital LCD (2000 Counts) |
| Insulation Resistance Range | 0MΩ – 20GΩ |
| Selectable Test Voltages | 500V / 1000V / 2500V |
| Low Resistance Range | 0.01Ω – 200Ω |
| AC Voltage Measurement | 30V – 600V |
| Rated Test Current | 1mA |
| Short Circuit Current | <2mA |
| Accuracy Class | 3% |
| DAR Function | Yes (60s/15s & 60s/30s) |
| PI Function | Yes |
| Auto Range | Yes |
| Auto Discharge | Yes |
| LCD Backlight | Yes |
| Light Alarm | Yes |
| Buzzer Alarm | Yes |
| High Voltage Indicator | Yes |
| Overload Protection | Yes |
| Low Battery Indicator | Yes |
| Test Voltage Secondary Display | Yes |
| 10MΩ Internal Resistance Test | Yes |
| Operating Temperature | 0°C – 50°C |
| Power Supply | 6 × 1.5V AA (LR6) Batteries |
| Display Size | 70.6 × 34 mm |
| Dimensions (L × W × H) | 150 × 100 × 71 mm |
| Weight | Approx. 500 g |
| Product Color | Red & Grey |
| Certifications | CE, FCC, RoHS, IEC 61557 |
| Origin | Mainland China |
Main Functions
- 2500V High Voltage Insulation Testing
- Insulation Resistance Measurement up to 20GΩ
- PI & DAR Diagnostic Testing
- Low Resistance Measurement
- AC Voltage Measurement
- Automatic Discharge Protection
- High Voltage Detection
- Backlit LCD Display
- Audible & Visual Safety Alarm
- Internal Resistance Verification
Applications
- Electrical Installation Testing
- Power Distribution Systems
- Motor Insulation Testing
- Transformer Maintenance
- Cable Insulation Inspection
- Industrial Equipment Maintenance
- Electrical Safety Inspection
- High Voltage Equipment Testing
What's in the Box
- UNI-T UT502A Digital Insulation Resistance Tester
- Test Leads
- Alligator Clips
- Test Probes
- 6 × AA Batteries
- Carrying Bag
- User Manual
- Retail Gift Box
UNI-T ut502a 2500 وولٹ ڈیجیٹل انسولیشن ریزسٹینس میٹر ٹیسٹر اوہم میٹر انتہائی وولٹ میٹر تسلسل ٹیسٹر lcd بیک لائٹ کے ساتھ
UNI-T Insulation Resistance Tester UT503PV 1.51MΩ-4000MΩ Digital Megohm Meter Stepping Voltage Measurement Compare FunctioN (UNI-T, UT503PV)
UNI-T UT503PV PV Insulation Resistance Tester
The UNI-T UT503PV is a professional photovoltaic (PV) insulation resistance tester designed for testing solar power systems, electrical installations, cables, motors, and industrial equipment. It offers live PV insulation testing, insulation resistance measurement up to 4000MΩ, and voltage measurement up to 1000V DC / 600V AC. With Bluetooth connectivity, USB data transfer, 1000-record memory, stepping voltage testing, compare function, and automatic discharge protection, the UT503PV is an ideal instrument for solar installers, maintenance engineers, and electrical professionals.
Key Features
- Photovoltaic (PV) Live Insulation Resistance Testing
- Insulation Resistance Measurement up to 4000MΩ
- 1000V DC High Output Test Voltage
- 1000V DC & 600V AC Voltage Measurement
- Stepping Voltage Test Function
- Continuous Measurement Mode
- Time Measurement Function
- Compare Function (IR)
- Automatic Discharge Protection
- High Voltage Audible & Visual Alarm
- 1000 Data Storage Records
- Bluetooth App Connectivity
- USB Data Communication
- Auto / Manual LCD Backlight
- Portable Handheld Design
Specifications
| Specification | Details |
|---|---|
| Brand | UNI-T |
| Model | UT503PV |
| Product Type | PV Insulation Resistance Tester |
| Insulation Resistance Range | 1.51MΩ – 4000MΩ |
| PV Insulation Test | Supported (Live PV Testing) |
| Output Test Voltage | 1000V DC |
| DC Voltage Measurement | Up to 1000V DC |
| AC Voltage Measurement | Up to 600V AC |
| Stepping Voltage Function | Yes |
| Continuous Measurement | Yes |
| Time Measurement | Yes |
| Compare Function | Yes (IR Comparison) |
| Auto Discharge | Yes |
| High Voltage Alarm | Yes |
| Data Storage | 1000 Measurement Records |
| Communication | Bluetooth App + USB Cable |
| Display | Digital LCD with Auto/Manual Backlight |
| Backlight | Auto / Manual |
| Certification | CE |
| Application | PV & Electrical Insulation Testing |
| Origin | Mainland China |
Main Functions
- Live Photovoltaic (PV) Insulation Testing
- 1000V DC High Voltage Output
- Insulation Resistance Measurement up to 4000MΩ
- 1000V DC / 600V AC Voltage Measurement
- Stepping Voltage Testing
- Continuous & Timed Measurement
- IR Compare Function
- Automatic Discharge Protection
- Bluetooth & USB Data Transfer
- 1000 Internal Data Storage Records
Applications
- Solar PV System Installation
- Photovoltaic Power Plant Maintenance
- Solar Panel Inspection
- Electrical Installation Testing
- Cable Insulation Testing
- Motor & Transformer Maintenance
- Industrial Electrical Inspection
- Preventive Maintenance & Troubleshooting
What's in the Box
- UNI-T UT503PV PV Insulation Resistance Tester
- Test Leads
- Alligator Clips
- USB Data Cable
- User Manual
- Carrying Case
- Retail Packaging
\
UNI-T انسولیشن ریزسٹینس ٹیسٹر ut503pv 1.51m14-4000mپروف ڈیجیٹل میگوہم میٹر اسٹیپنگ وولٹیج کی پیمائش کا فنکشن
UNI-T UT516B Insulation Resistance Tester/12000V Digital Megohmmeter/10TΩ/USB data transfer (UNI-T UT516B)
UNI-T UT516B Insulation Resistance Tester/12000V Digital Megohmmeter/10TΩ/USB data transfer
Specification | Details |
Model Number | UT516B |
Battery Included | No |
High-concerned Chemical | None |
Dimensions | 510 × 320 × 420 mm |
Testing Voltage | 12 kV |
Measuring Range | 10 TΩ |
Display Type | Digital Only |
DIY Supplies | Electrical |
Brand Name | UNI-T |
Origin | Mainland China |
Certification | None |
Product sellpoints
LCD Backlight:Clearly view test results in any lighting condition with the LCD backlight.
Memory Storage:Store test results in the tester memory for easy access and review.
Ut516b|Uni T Ut516b|High Voltage Range:Test up to 12kV with 6 selectable ranges for comprehensive insulation resistance measurement.
USB Data Transfer:Effortlessly transfer test data to a PC via USB, ensuring accurate records for analysis.
Comparative Measurement:Compare measurements to previous tests, aiding in maintenance and troubleshooting.
Description
report
UNI-T UT516B 12kV High Voltage Insulation Resistance Tester Digital Megohmmeter USB Communication 10TΩ
The UT516B is a digital high voltage insulation resistance tester with 6 ranges: 500V, 1000V, 2500V, 5000V, 10000V and 12000V.
Fine adjustment of voltage with 10% step at each range (except 12000V) is available.
Test data can be saved in the tester memory and transferred to a PC via the dedicated USB cable, or be transferred to a PC in real time.
The tester, with high performance and easy operation, is widely used in the measurement and maintenance of power equipment and power supply circuits.
Features:
1. AC/DC voltage
2. USB data transfer
3. Low battery indication
4. Data storage
5. LCD backlight
6. Polarization Index
7. Over-range alarm
8. 9999 Max display
9. Comparative measurement
10. Measurement time selection
Take notice: Battery was not included for air shipping, please prepare it by yourself.
Specifications of UT516B Insulation Resistance Tester
High Voltage Range: 500V to 12000V
Accuracy: ±(5%+3) at 500V to 2500V, ±(8%+3) at 5000V to 10000V, ±(10%+3) at 12000V
Memory: 9999 data sets
USB Communication: Yes
Battery Indicator: Yes
Polarization Index: Yes
|Uni T Ut516b|
**Advanced Measurement Capabilities**
The UNI-T UT516B High Voltage Insulation Resistance Tester is an essential tool for electrical professionals and DIY enthusiasts alike. With a versatile range of 500V to 12000V, this digital megohmmeter is equipped to handle a wide array of insulation resistance testing scenarios. Its high precision, with an accuracy of ±(5%+3) at 500V to 2500V, ±(8%+3) at 5000V to 10000V, and ±(10%+3) at 12000V, ensures reliable results for even the most critical measurements.
**Seamless Data Management and Transfer**
The UT516B's USB communication capability allows for quick and easy data transfer to a PC, enabling users to store and analyze test results with ease. The dedicated USB cable simplifies the process, making it a breeze to share data with colleagues or clients. Additionally, the tester's memory can store up to 9999 data sets, providing ample storage for extensive testing projects.
**User-Friendly Design and Functionality**
The UT516B is not only a powerful tool but also a user-friendly device. Its LCD backlight ensures clear visibility in low-light conditions, while the polarization index feature offers additional insights into the test results. The tester's design is compact and lightweight, making it suitable for use in a variety of environments. Moreover, the low battery indicator alerts users when it's time to replace the batteries, ensuring that the tester is always ready for use.
**Versatile Application and Safety**
The UNI-T UT516B High Voltage Insulation Resistance Tester is designed for use in electrical maintenance and power supply circuit testing. Its robust construction and safety features make it an essential tool for professionals working in the electrical field. Whether it's for routine maintenance or critical repair, the UT516B is the go-to device for reliable, precise insulation resistance testing.
UNI-T ut516b انسولیشن ریزسٹینس ٹیسٹر/12000 وولٹ ڈیجیٹل میگوہم میٹر/10t 14/usb ڈیٹا ٹرانسفر
VC60B+ Digital Insulation Resistance Tester VICI MegOhm Meter 250V 500V 1000V Anti High Voltage And Short Circuit Input Alarm (VC60B+)
```html
VC60B+ Digital Insulation Resistance Tester (Megger)
The VC60B+ Digital Insulation Resistance Tester is a professional MegOhm meter designed for accurate insulation resistance testing of electrical equipment, transformers, motors, cables, switchgear, and industrial installations. It supports 250V, 500V, and 1000V insulation testing ranges, along with AC/DC voltage measurement and resistance testing. Featuring a large LCD display, anti-high voltage protection, short circuit input alarm, and strong anti-magnetic interference performance, the VC60B+ is an ideal instrument for electrical maintenance, troubleshooting, and safety inspections.
Key Features
- Insulation Resistance Testing at 250V, 500V & 1000V
- Large Easy-to-Read LCD Display
- High Voltage & Short Circuit Input Alarm
- Strong Anti-Magnetic & Anti-Interference Design
- Function Protection Circuit
- AC and DC Voltage Measurement
- Resistance Measurement
- Continuity Buzzer
- Data Hold Function
- LCD Backlight
- Low Battery Indicator
- Manual Range Selection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | VICI |
| Model | VC60B+ |
| Product Type | Digital Insulation Resistance Tester (Megger) |
| Certification | CE |
| Insulation Test Voltage | 250V / 500V / 1000V |
| 250V Range | 0–200MΩ ±(4.0%+2) |
| 500V Range | 0–200MΩ ±(4.0%+2) |
| 1000V Range | 0–2GΩ ±(4.0%+2) |
| Resistance Measurement | 2000Ω ±(1.0%+5) |
| DC Voltage | 0–1000V ±(1.0%+5) |
| AC Voltage | 0–750V ±(1.5%+5) |
| Maximum Display | 1999 Counts |
| Continuity Alarm | Less than 30Ω |
| Input Impedance | 1MΩ |
| Sampling Rate | 3 Times / Second |
| Range Selection | Manual |
| Power Supply | 6 × 1.5V AA Batteries or External DC 9V Adapter (Not Included) |
| LCD Size | 75 × 52 mm |
| Meter Dimensions | 176 × 116 × 63 mm |
| Package Size | 205 × 170 × 70 mm |
| Net Weight | 580 g |
| Package Weight | 709 g |
| Color | Dark Gray / Yellow |
Applications
- Transformer Insulation Testing
- Motor Insulation Measurement
- Power Cable Testing
- Switchgear Inspection
- Industrial Electrical Maintenance
- Electrical Equipment Testing
- Power Distribution Systems
- Electrical Safety Inspection
Package Includes
- 1 × VC60B+ Digital Insulation Resistance Tester
- 1 × Test Lead Set
- 1 × User Manual
- AA Batteries and External DC Adapter are not included.
Product Video
```VC60B+ ڈیجیٹل انسولیشن ریزسٹنس ٹیسٹر VICI میگوہم میٹر 250V 500V 1000V اینٹی ہائی وولٹیج اور شارٹ سرکٹ ان پٹ الارم
ZC11D-10 2500V Insulation Resistance Tester Meter (ZC11D-10)
2500VInsulationResistanceTesterMeterZC11D-10
●Description
Insulation Resistance Tester Meter ZC11D-10 is required in use away from magnetic fields placed horizontally. 2500V resistance megger megohmmeter is as insulating determination may be the ends of the analytes are connected respectively on the two terminals of the "Ground" and "Line". At rated speed rotating cranks, the resistance value can be measured. This ZC11D-10 insulation ohmmeter is applicable to measure the insulation resistance of motors, cables, transformers, electronic components, home appliances and other electrical devices, as well as insulation measurement of resistance wire strain gauges.
●Features
●Use of conditions: Temperature -25°C~+40°C, Relative Humidity less than 80%. ●Nominal crank speed: 150r/min. ●Scale arc length: Approximately 80mm. ●Tilt effect: Up to 5° inclination from horizontal. ●External magnetic field resistant. ●Suitable for industrial electrical insulation testing.
●Specifications
Rated Voltage: 2500V
Rated Voltage Tolerance: ±10%
Measuring Range: 0~2500MΩ
Accuracy: Class 20
Reference Resistance: 30MΩ
Relative Humidity: ≤80%RH
Operating Temperature: -25°C~40°C
Working Position: Horizontal
Rated Rocking Speed: 150rpm
Dimensions: 215×135×130mm
Net Weight: Approx. 1.5kg
Gross Weight: ≤11kg
●Operation
●Use the instrument away from magnetic fields. ●Keep the tester in a horizontal position. ●Connect the test object to the "Ground" and "Line" terminals. ●Ensure proper contact before testing. ●Discharge the equipment before and after measurement. ●Do not use during lightning or on live circuits. ●Rotate the handle smoothly at approximately 150rpm. ●Store the instrument in a dry, clean place.
●Package Includes
●1×2500VInsulationResistanceTesterMeterZC11D-10
ZC11D-10 2500V انسولیشن ریزسٹنس ٹیسٹر میٹر
VICTOR RuoShui 5150 Electronic Digital Vernier Caliper Range 150mm 200mm 300mm Measure Length Inside Outside Diameter (VICTOR RuoShui 5150)
VICTOR RuoShui 5150 Electronic Digital Vernier Caliper Range 150mm 200mm 300mm Measure Length Inside Outside Diameter
Victor Digital Caliper – Specifications
Specification | Details |
Brand Name | Victor |
Brand | Victor Ruoshui |
Model Numbers | 5150 / 5200 / 5300 |
Product Name | Electronic Digital Caliper |
Type | Electronic Digital Display Caliper |
Caliper Type | Digital Caliper |
Material | Stainless Steel |
Measuring Range | 0–150mm / 0–200mm / 0–300mm |
Resolution | 0.01mm |
Accuracy | ±0.01mm (Typical), ±0.02mm |
DIY Supplies | Electrical |
Customized Support | OEM |
Warranty | 1 Year |
Origin | Mainland China |
Place of Origin | Guangdong, China |
High-concerned Chemical | None |
Measurement Capabilities
Function | Supported |
External Diameter Measurement | ✔ Yes |
Internal Diameter Measurement | ✔ Yes |
Depth Measurement | ✔ Yes |
Step Measurement | ✔ Yes |
Digital Display Reading | ✔ Yes |
Features
Feature | Details |
Display Type | Digital LCD |
Construction | Stainless Steel Body |
High Precision | 0.01mm Resolution |
Durable Design | Corrosion Resistant |
Easy Reading | Large Digital Display |
Applications | Mechanical, Electrical, Industrial, Workshop Use |
Available Measuring Ranges
Model Type | Measuring Range |
5150 | 0–150 mm |
5200 | 0–200 mm |
5300 | 0–300 mm |
Package Information
Item | Details |
Product | Victor Digital Caliper |
Warranty | 1 Year |
OEM Support | Available |
Product Description
VICTOR RuoShui 5150 Electronic Digital Vernier Caliper Range 150mm 200mm 300mm Measure Length Inside Outside Diameter
Model | VICTOR 5150 | VICTOR 5200 | VICTOR 5300 |
Measurement range | 150mm/6'' | 200mm/8'' | 300mm/12'' |
Accuracy | 0.01mm/0.0005'' | 0.01mm/0.0005'' | 0.01mm/0.0005'' |
L | 235mm | 287mm | 390mm |
A | 40mm | 50mm | 60mm |
B | 21mm | 24mm | 27mm |
C | 16mm | 16mm | 16mm |
D | 3.5mm | 3.5mm | 4.0mm |
Repeatability | 0.01mm/0.0005'' | ||
Max. measurement speed | 3 m/s | ||
Operating temperature | 0℃~40℃ | ||
Power | SR44(silver oxide cell) 1.5V 1 battery | ||
Average battery life | The warranty is above 1 year under normal use | ||
Detailed Images
وکٹر روشوئی 5150 الیکٹرانک ڈیجیٹل ورنیئر کیلپر کی حد 150 ملی میٹر کی پیمائش کی لمبائی بیرونی قطر کے اندر
Analog Multimeter DEG 360 A multimeter or a multitester (VICTOR RuoShui 5150)
DEG360 Analog Multimeter
The DEG360 Analog Multimeter is a traditional analog measuring instrument designed for measuring AC/DC voltage, DC current, and resistance. It is a reliable, easy-to-use testing tool for electricians, technicians, students, and electronics enthusiasts. The analog pointer display provides real-time readings, making it suitable for troubleshooting electrical circuits, household appliances, and electronic equipment.
Key Features
- AC/DC Voltage Measurement
- DC Current Measurement
- Resistance (Ω) Measurement
- Analog Pointer Display
- Battery and Circuit Testing
- Durable & Lightweight Construction
- Easy to Operate
- Suitable for Electrical & Electronic Troubleshooting
Specifications
| Specification | Details |
|---|---|
| Model | DEG360 |
| Product Type | Analog Multimeter |
| Display | Analog Pointer Scale |
| Measurement Functions | AC/DC Voltage, DC Current, Resistance |
| Applications | Electrical & Electronic Testing |
| Weight (WT) | 0.3 kg (300 g) |
Applications
- Electrical Fault Finding
- Household Appliance Testing
- Power Supply Testing
- Motor Control Circuit Testing
- Electronic Equipment Repair
- Educational & Laboratory Use
What's in the Box
- 1 × DEG360 Analog Multimeter
- 1 × Pair of Test Leads
- 1 × User Manual
اینالاگ ملٹی میٹر ڈی ای جی 360 ایک ملٹی میٹر یا ملٹی ٹیسٹر
- 1
