UNI-T UT673PV Solar MPPT Meter 12V~60V Open Circuit Voltage Measurement 800W Power Test 35A Load Current Measurement
View Write Review
UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Rs.12,899.00
UNI-T UT673PV Solar MPPT Meter 12V~60V Open Circuit Voltage Measurement 800W Power Test 35A Load Current Measurement (UNI-T UT673PV Solar MPPT Meter)

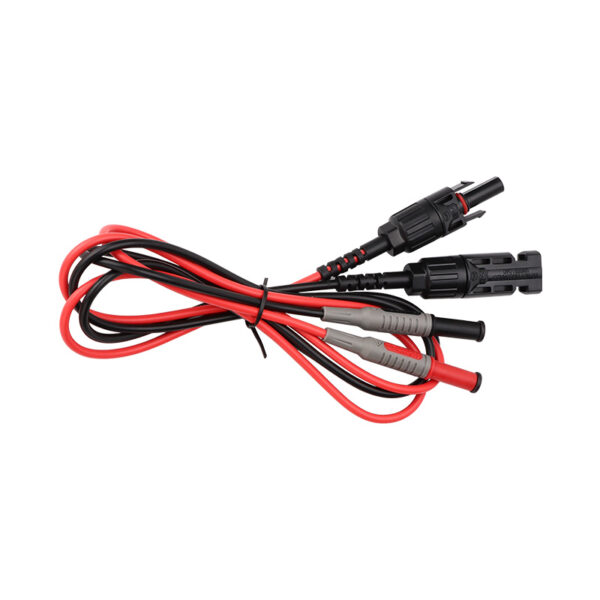

Product Description:UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current. Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.Features of UT673PV Solar MPPT MeterCertifications (UT673PV series only): CE, cETLus, RoHS● Maximum power test (Pmax) 5～800W● Peak power voltage (Vmp) 12～60V● Peak power current (Imp) 0～35A● Open circuit voltage (Voc) 12～60V● Short circuit current (Isc) 0～35A● Large screen and multiple result display● No batteries needed, powered by the solar panel● Equipped with MC4 test lead● Portable and convenient

Product Paramenters Specification

Max power measurement 5～800W ±(1.0%＋10)

Max power current(DC) 0～35A ±(1.5%＋5)

Max power voltage(DC) 12～60V ±(1.5%＋5)

Open circuit current(DC) 12～60V ±(1.5%＋5)

Short circuit current(DC) 0～35A ±(1.5%＋5)

General Features

Display

Large LCD (52 * 66mm)

Reverse polarity connect Protection √

Over voltage protection √

Over current protection √

Over temperature protection √

Over power protection √

Manual/Auto MPPT test √

Data hold √

Power supply No battery needed, powered by solar panel

Ovecategory CAT 0 60V

Specifications

Specification
Max power measurement5～800W ±(1.0%＋10)
Max power current(DC)0～35A ±(1.5%＋5)
Max power voltage(DC)12～60V±(1.5%＋5)
Open circuit current(DC)12～60V ±(1.5%＋5)
Short circuit current(DC)0～35A±(1.5%＋5)
General Features
DisplayLarge LCD (52 * 66mm)
Reverse polarity
connect Protection		√
Over voltage protection√
Over current protection√
Over temperature protection√
Over power protection√
Manual/Auto MPPT test√
Data hold√
Power supplyNo battery needed, powered by solar panel
OvecategoryCAT 0 60V
CertificateCE, cETLus, RoHS





View Write Review
UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.
Rs.12,899.00
