TOOLTOP ET120M 500MS/s 120MHz Portable Digital Oscilloscope Auto Laboratory Scope for Electrical Repair USB Oscilloscope Tools

آلہ ٹاپ et120m 500 ms/s 120mhz پورٹ ایبل ڈیجیٹل اوسیلوسکوپ آٹو لیبارٹری اسکوپ الیکٹریکل ریپئر usb اوسکلوسکوپ کے آلات کے لئے

Rs.26,600.00

Rs.38,000.00

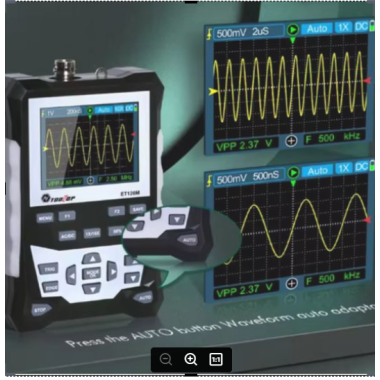

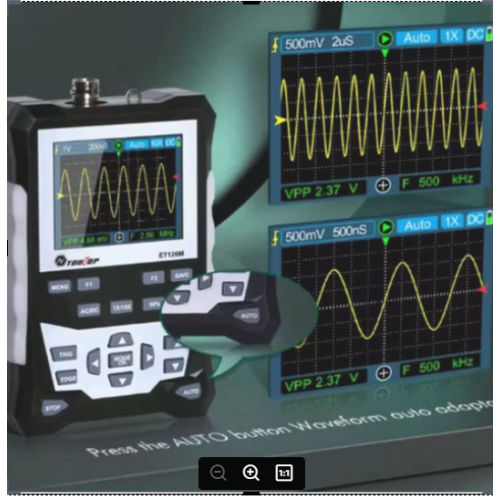

TOOLTOP ET120M 120MHz Portable Digital Oscilloscope 500MSa/s

The TOOLTOP ET120M is a compact handheld 120MHz Digital Oscilloscope featuring a 500MSa/s real-time sampling rate, 2.4-inch color LCD, rechargeable 18650 lithium battery, and waveform storage. It is ideal for electronics repair, automotive diagnostics, laboratory testing, educational use, and field maintenance.

Key Features

120MHz Analog Bandwidth

500MSa/s Real-Time Sampling Rate

2.4-inch 320 × 240 Color LCD Display

Rechargeable 18650 Lithium Battery

Stores up to 2500 Waveforms

Auto, Normal & Single Trigger Modes

12 Automatic Measurement Functions

1kHz / 10kHz / 100kHz / 1MHz Square Wave Output

Portable Handheld Design with Protective Silicone Cover

Up to 6 Hours Continuous Operation

Product Specifications

Specification	Details
Brand	TOOLTOP
Model	ET120M
Product Type	Handheld Digital Oscilloscope
Bandwidth	120MHz
Sampling Rate	500MSa/s
Channels	1 Channel
Display	2.4-inch 320 × 240 Color LCD
Vertical Resolution	8-bit
Waveform Storage	2500 Waveforms
Trigger Modes	Auto / Normal / Single
Trigger Slope	Rising / Falling
Coupling	AC / DC
Input Impedance	x1: 1MΩ / x10: 10MΩ
Time Base Range	6ns/div – 50s/div
Vertical Sensitivity	x1: 50mV/div–10V/div x10: 500mV/div–100V/div
Battery	Rechargeable 18650 Lithium Battery
Auto Power Off	15 Minutes
Operating Temperature	0°C – 40°C
Storage Temperature	-10°C – 60°C
Dimensions	124 × 80 × 35 mm
Weight	280–350 g (Approx.)

Specification

Details

Brand

TOOLTOP

Model

ET120M

Product Type

Handheld Digital Oscilloscope

Bandwidth

120MHz

Sampling Rate

500MSa/s
